Airflow Raised Access Floor—a More Innovative And Flexible Architectural Design Solution

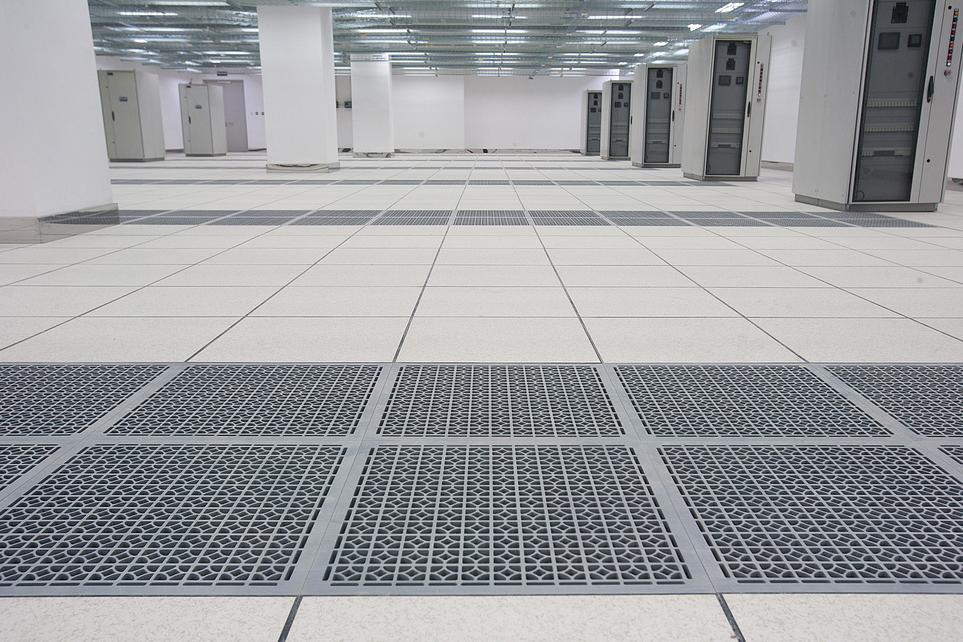

  Airflow raised access floor is a kind of raised floor with ventilation holes or ventilation slots designed on the floor panel. It is an important series of raised floor and an advanced building solution.

---



Ventilation design and principle

    Airflow raised access floors are designed with vents or ventilation slots on the floor panels, and cleverly use the air conditioning system or natural ventilation to circulate air under and above the floor, thereby achieving ventilation and heat dissipation, and maintaining a suitable temperature and air quality in the room. The design of these vents is extremely flexible and can be adjusted according to actual needs, so as to accurately control the amount of ventilation to meet the heat dissipation requirements of different places and equipment. The vents on the floor are designed in a variety of ways, including round, square, and long strips. Different designs will affect the ventilation efficiency and air flow direction, and the installation height of the floor (i.e. the overhead height) will also affect the ventilation effect.

---

Application

    Airflow raised access floors are mainly used in places with high requirements for ventilation and heat dissipation, such as data centers, server rooms, communication rooms, laboratories, etc. In these places, a large number of electronic equipment will generate a lot of heat when running, and ventilation and heat dissipation are needed to maintain the normal operating temperature of the equipment to ensure the stability and service life of the equipment.

---

Features

1. Ventilation and Heat Dissipation

   Can effectively dissipate heat generated by equipment operation, maintain suitable indoor temperatures, ensure stable equipment operation, and extend service life.

2. High bearing capacity

   The bracket and beam structure of airflow raised access floors can evenly distribute the weight, has a high load-bearing capacity, and can meet the placement requirements of different types of equipment.

3. Flexible installation and maintenance

   Airflow raised access floors are interchangeable and easy to install and remove, and can be adjusted and rearranged according to changes in equipment layout. Equipment maintenance, line replacement and troubleshooting are simple and quick, without damaging the floor or moving a large amount of furniture, reducing maintenance costs and time.

4. Fireproof and anti-static

   Airfow raised access floors are usually made of fireproof materials such as metal and have good fireproof properties. The surface materials are usually treated with anti-static treatment, which can effectively prevent static electricity from harming equipment and human body.

5. Environmental sustainability

   Airflow raised access floors are usually made of recyclable materials, which is in line with the concept of green and environmental protection development.

---

Main Products

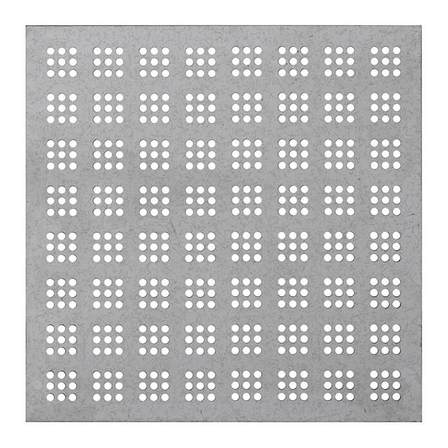

1.Steel Airflow Raised Access Floor

      Stell airflow raised access floor is made of all steel, with ventilation holes punched out of the upper and lower steel plates or the bottom surface welded with square tubes and grilles, and the surface is pasted with perforated HPL or PVC veneer to form an anti-static ventilation floor with high load-bearing capacity. The bottom surface can be equipped with a regulator as needed to meet the needs of various ventilation rates in the machine room. The ventilation floor can be used in conjunction with the standard anti-static raised floor or can be installed alone.

   It is mainly used in high grade clean workshop, dust-free room, semiconductor, microelectronics chip, communication equipment, biochemical factory and other clean environment, dust proof, anti-static, pipeline laying centralized all kinds of data center room with down air supply device and other places.

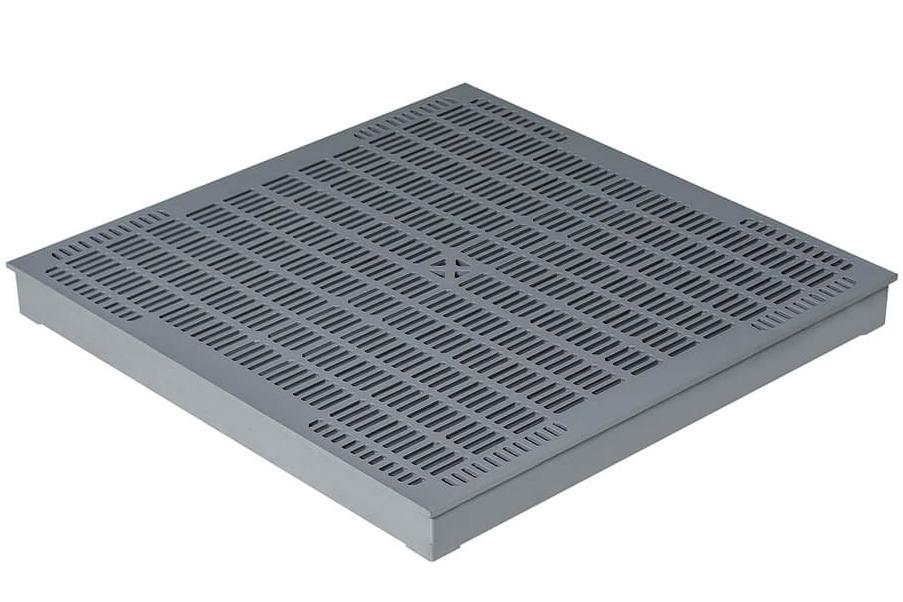

2.Aluminun Perforated Raised Access Floor

     Aluminum Perforated Raised Access Floor is made of high strength and pure cast aluminum. It is a precision-crafted flooring system that features perforations in the panels to facilitate controlled air circulation.

It is mainly used in high grade clean workshop, dust-free room, semiconductor, microelectronics chip, communication equipment, biochemical factory and other clean environment, dust proof, anti-static, pipeline laying centralized all kinds of data center room with down air supply device and other places.

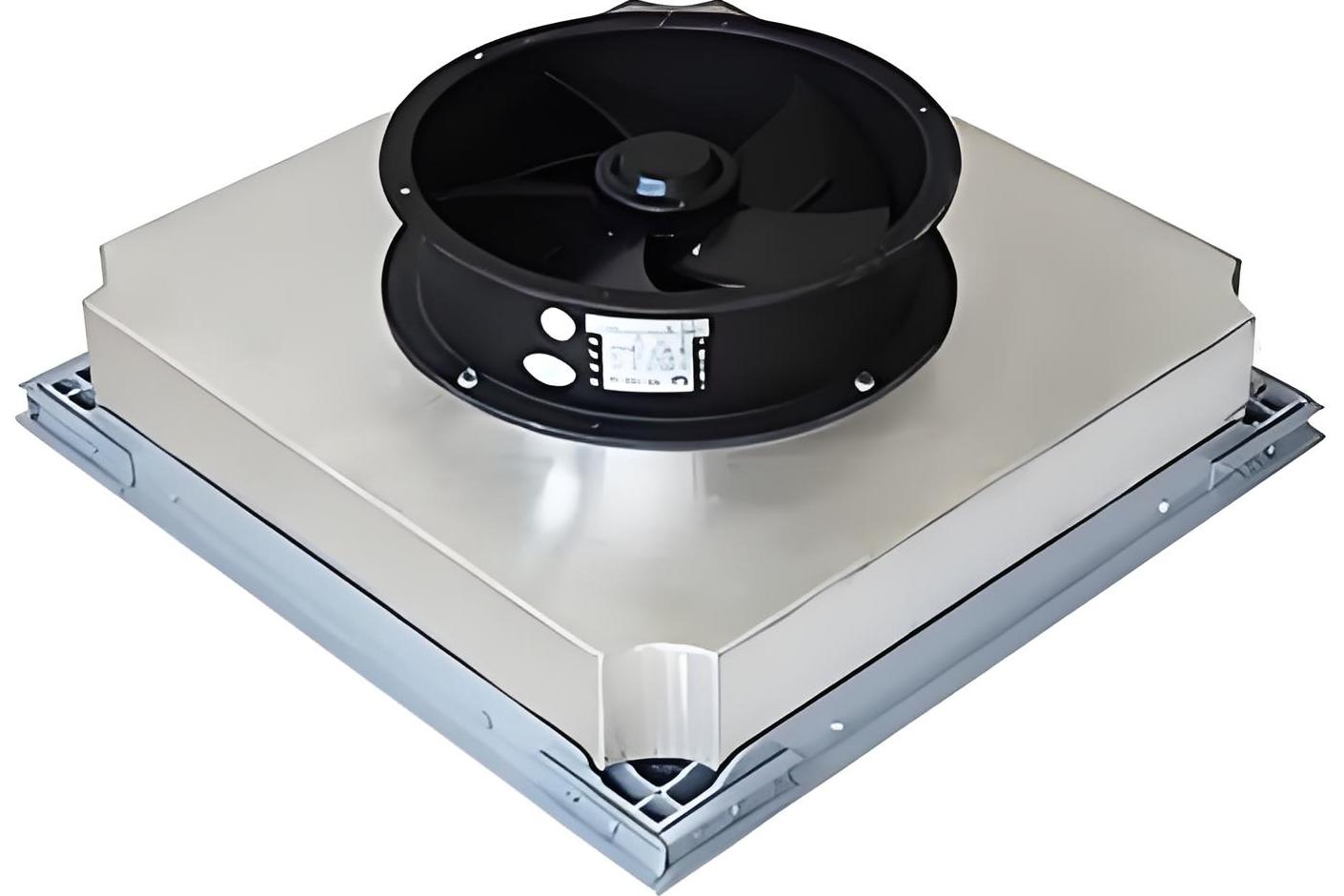

3.EC fan for airflow controls

    The aluminum air grille panel is equipped with automatic airflow control fan, which is the most idealchoice for your data center. The unit adjusts the amount of airflow by the temperature sensorassembled to the equipment. The EC fan speed control is precise to 1rpm, therefore it ensures theproper inlet temperature, and it saves 30% cooling energy comparing to conventional airlow system.

It is mainly used to solve local hot spots in various data center rooms where heat loads are constantly changing, ensuring stable operation of the data center system

4.Transparent glass floor

     Double-layer tempered glass is bonded, with a thickness of 20mm, and is surrounded by a high-strength steel frame combination. It can be installed with various standard anti-static floors; the working conditions of various instruments, motors and other equipment under the floor can be effectively observed.

    The transparent glass floor is used in the front floor of cabinets, precision air conditioners, UPS power supplies and other equipment in the computer room, as well as in areas under the floor where there are instruments, valve pipeline interfaces, network interfaces and other fault-prone areas, making it easy to observe the working conditions of the equipment, and can accurately, directly and quickly observe and eliminate potential safety hazards under the floor in time, eliminating the

trouble of lifting the floor one by one for inspection.

---

HUILIAN: Reliable Airflow Raised Access floor Manufacturer Near You

    Jiangsu Huilian Access Floor, established for over 20 years, is one of the largest access floor manufacturing company in China, specializing in the data center and office market. Renowned for its rich experience, high quality and production capacity, Huilian is a good choice for many data center providers and office buildings alike.

   Huilian can provide you with reliable high-quality ventilated raised floor products and a complete after-sales service system.If you choose Huilian, you will get the following quality services:

1.High quality products

   Our airflow raised access floors are made of high-quality metals.Our products are reliable and stable in quality and have passed various domestic and international tests and certifications.

2.Personalization customization services

   HUILIAN provides personalized customization services, can quickly adapt models according to customers’ needs, and provide solutions to help you choose the floor with appropriate ventilation according to the equipment cooling requirements and room size.

3.Reliable production scale

   Huilian has two large-scale production and R&D bases in Changzhou and Shandong, with an annual production capacity of more than 4 million square meters of various types of raised floors. At the same time, Huilian also has advanced production equipment and mature technology to ensure stable product quality and a complete supply chain to meet market demand in a timely manner.

4.Competitive pricing

   Huilian provides direct production and sales, ensuring more competitive pricing by cutting out middlemen.

5.Professional guidance

   Huilian provides customers with a full range of pre-sales, sales and after-sales services, including technical support, installation guidance, maintenance training, etc., to help customers solve problems encountered during use and improve customer satisfaction and loyalty.

---

Conclusion

   Airflow raised access floor is a more innovative and efficient building solution. It has been widely used in data centers, computer rooms and other places due to its good ventilation and heat dissipation performance, flexibility and easy maintenance. When selecting and using ventilated raised floor, factors such as floor material, performance, installation method and maintenance requirements should be considered comprehensively according to specific use requirements and environmental conditions to ensure its optimal performance and service life. Choose Huilian, we will provide you with more professional, innovative and environmentally friendly ventilation raised floor solutions.
