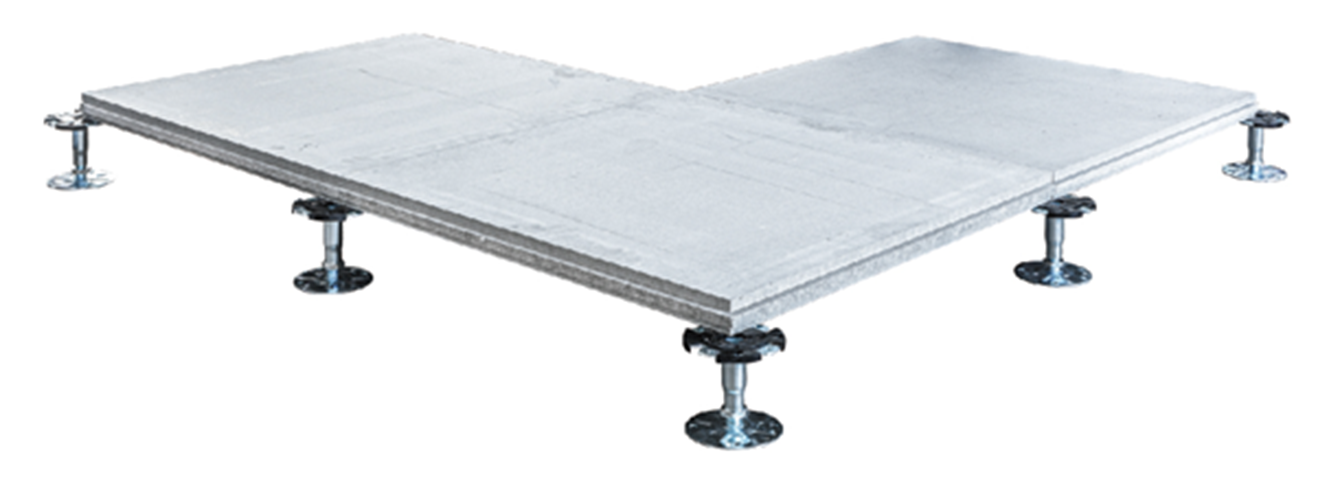

stu

Gyplok™ Interlocking Floor System

Product Features

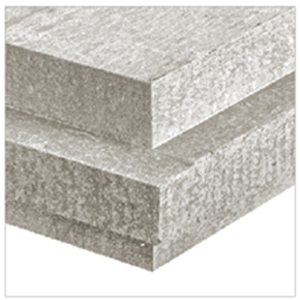

  Core Materials & Structure

This is a dry-type raised floor system, consisting of interlocking floor panels
(made from fiber-reinforced calcium sulfate, or natural gypsum + recycled
fibers) paired with zinc-coated steel pedestals. The panels feature a specialized tongue-and-groove/locking edge design, which forms a continuous load-bearing layer when assembled. The height-adjustable pedestals create an underfloor cavity-ideal for wiring and installations.

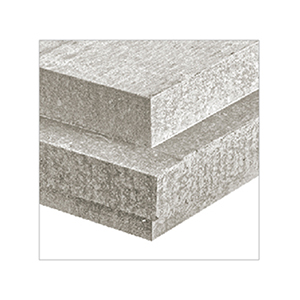

Core Materials & Structure

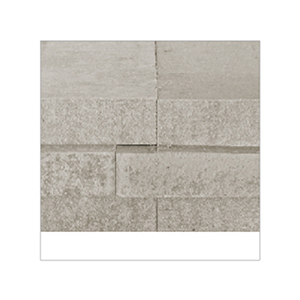

  Product Features

Efficient Installation: The dry raised system assembles easily, and is ready for use in just 1 day after installation;Stable Performance: Uniform density throughout the panel thickness ensures structural stability, and the system is compatible with all types of floor
coverings;Modular Design: Standard panel size is 600×600mm(30mm/34mm/36mm single-layer thickness), supplied on compact pallets (max. pallet weight:600kg) for easy transport and on-site assembly.

  Application Scenarios

Suitable for public areas (entrances, escape routes), workspaces (meeting rooms, office buildings), educational facilities (libraries, universities),commercial & entertainment venues (shopping malls, cinemas), healthcare settings (hospitals, labs), hospitality & F&B spaces, industrial facilities, and residential buildings.

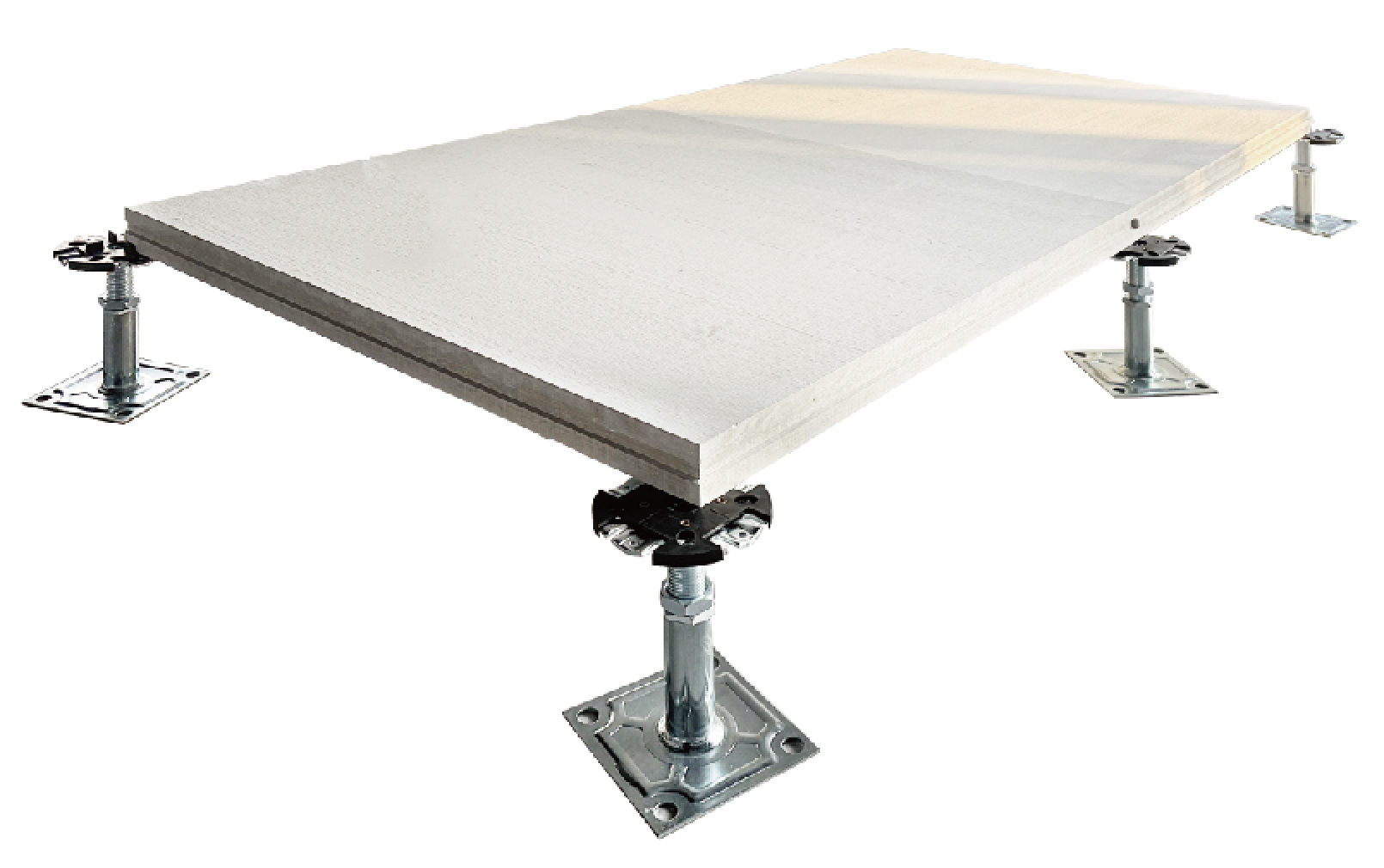

Application Scenarios11

Dimensions
Panel thickness 30mm/34mm/36mm
Standard pedestal height 80-300mm
pedestal grid 600x600mm
Weight 45-60kg/㎡

Load-bearing capacity
Class Breaking load Nomianal
Load		 Element class Applications and usage scenarios
1 ≥4.000 N 2.000 N 1 Offices without public access and without heavy equipment
2 ≥6.000 N 3.000 N 2 Office areas with public access

Fire protection
Building material class   of the carrier panel
Building material class BS476 Part 6&7 Class 1
Designation by building authorities BS476 Part 4  non-combustible

Acoustics / Building acoustics
Weighted sound reduction index depending onadditional measures GB/T 19889.3-2005
GB/T 50121-2005		 Rw 36 dB
