Raised Access Floor Finishes

Huilian can offer HPL(High Pressure Laminate), PVC Finish, Rubber, Timber, Granite, Marble, Porcelain, Terrazzo, LVT and Carpet to our worldwide clients.
01

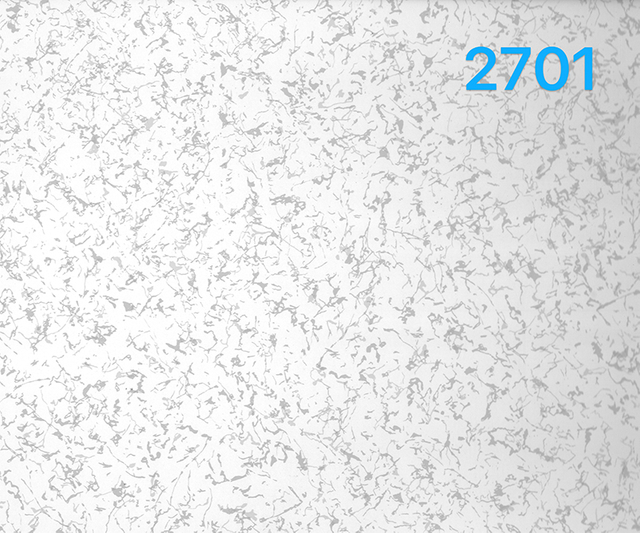

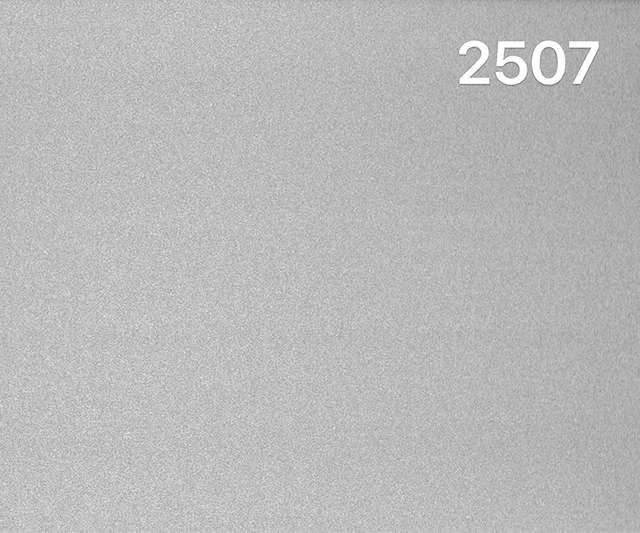

Anti-Static High Pressure Laminate(HPL) Finish

Anti-static High Pressure Laminate (HPL) is a durable surface finish commonly used on raised access flooring systems in data centers, server rooms, control rooms, and technical facilities.

HPL is manufactured by bonding multiple layers of resin-impregnated material under high temperature and pressure, creating a hard-wearing surface with good resistance to scratches, stains, and everyday abrasion.

HUILIAN offers HPL finish options in various colors and patterns for compatible raised floor panels. Electrical resistance, abrasion resistance, and other performance characteristics should be selected according to the specific HPL grade and project requirements.
Properties:
 Electrical Resistance:1.0x106- 2.0x1010
 Stain Resistance
Boiling Water Resistance
 High Temperature Resistance
 Wear Resistance:3000 cycles/min.+
 Scuff Resistance
02

Conductive & Static-Dissipative PVC Finish

Conductive and static-dissipative PVC finishes are designed for raised access flooring systems used in environments where electrostatic discharge (ESD) control is important.

Depending on the selected product grade, ESD PVC flooring provides controlled electrical resistance to support the management of electrostatic charges in data centers, electronics facilities, laboratories, and technical workspaces.

HUILIAN supplies PVC finish options for compatible raised floor systems. Project buyers can select suitable finishes based on electrical resistance specifications, surface durability, maintenance requirements, and available color options.

Performance

Conductive

Static Dissipative

Resistance: point to ground

2.5x104 to 106Ω

106 to 108 Ω

Resistance: point to point

2.5x104 to 106 to 106Ω



Static decay

5000 to 0 volts in < 0.01 sec.

5000 to 0 volts in < 0.2 sec.

03

Carpet Tile Finish for Raised Access Floors

Carpet tile finishes provide a comfortable and visually appealing surface for raised access flooring systems in commercial offices, meeting rooms, and other interior spaces.

Modular carpet tiles offer acoustic benefits, a wide selection of colors and patterns, and convenient maintenance. Individual tiles can be replaced when worn or damaged, helping reduce disruption in busy commercial environments.

HUILIAN offers carpet tile options for raised floor applications, helping project buyers select suitable materials based on design requirements, wear resistance, acoustic performance, and panel accessibility.

Specification

Details

Specification

Details

Structure Type

Tufted loop pile structure

Backing

Eco-friendly PE backing

Surface Fiber

100% Nylon (including antistatic fiber)

Flame Retardance

B1

Dyeing Method

Solution dyeing

Rubbing Color Fastness

Level 4-5

Machine Gauge

1/12

Sunlight Color Fastness

Level 5-6

Pile Height

4±0.5mm

Antibacterial Properties

Antibacterial, Anti-mite, Inhibits Bacteria, Mold, Fungi

Size

50cm×50cm / 60cmx60cm

Environmental Compliance

U.S. CRI+ Advanced Environmental Certification

Primary Backing

Polyester spunbond non-woven fabric

Antistatic Performance Index

Permanent Antistatic

Surface

Stain-Resistant Treatment





04

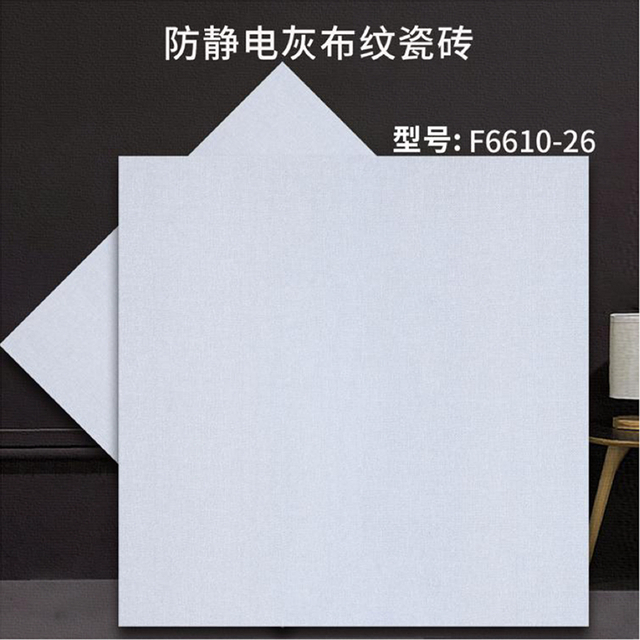

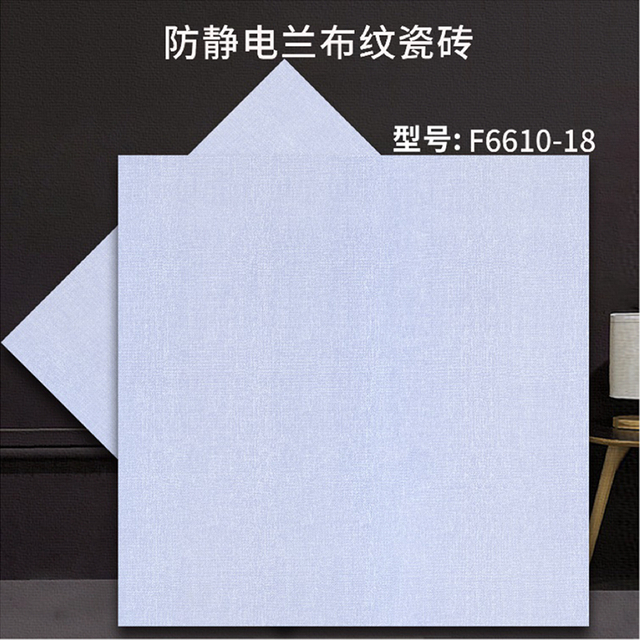

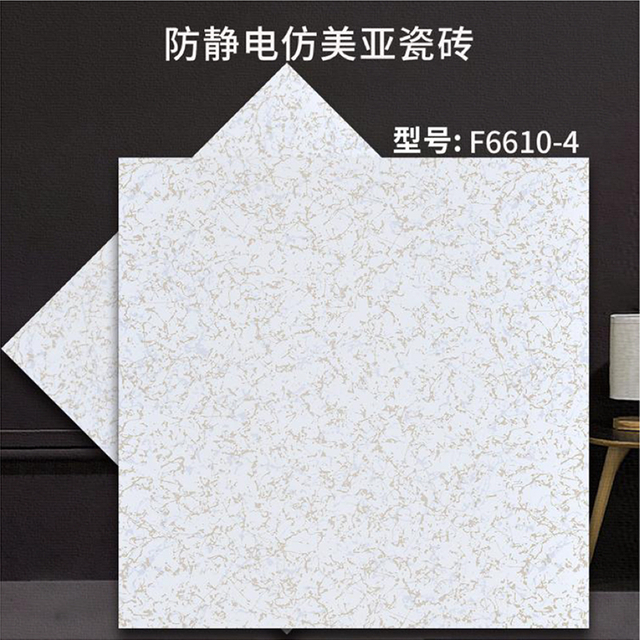

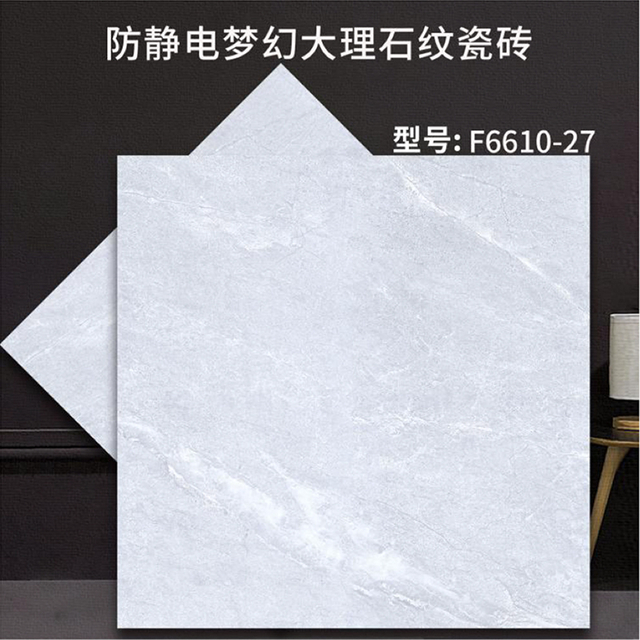

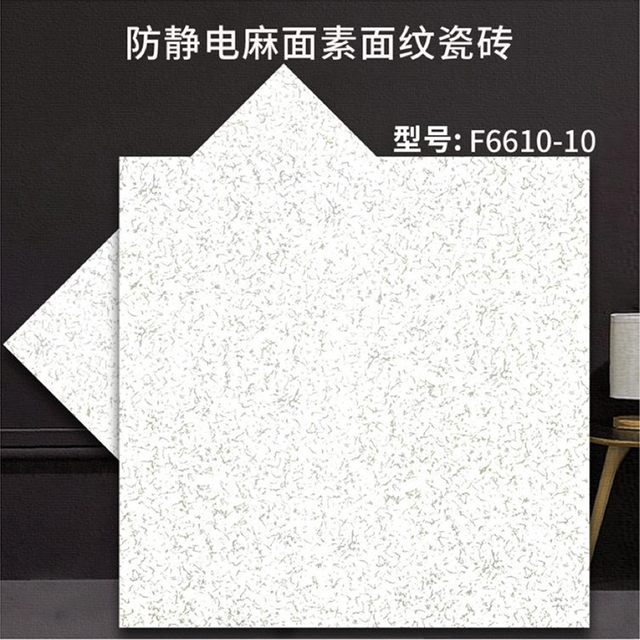

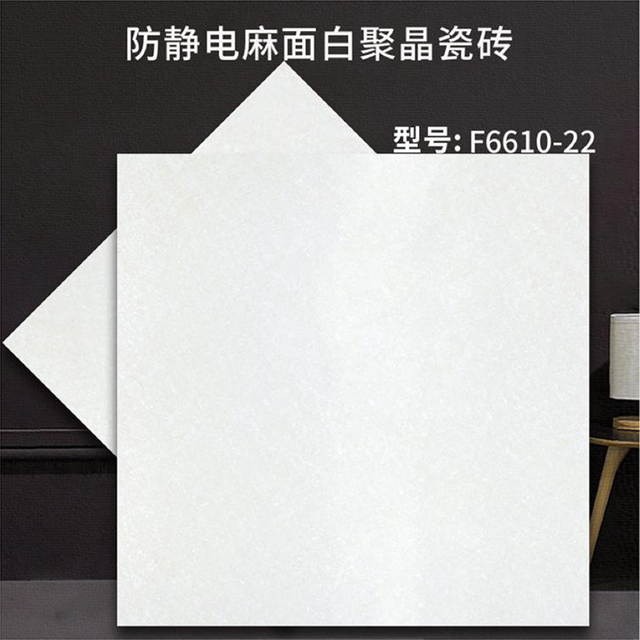

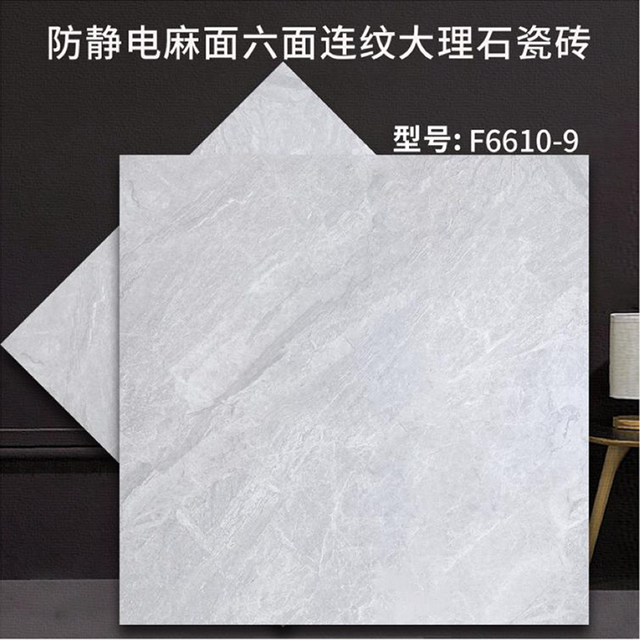

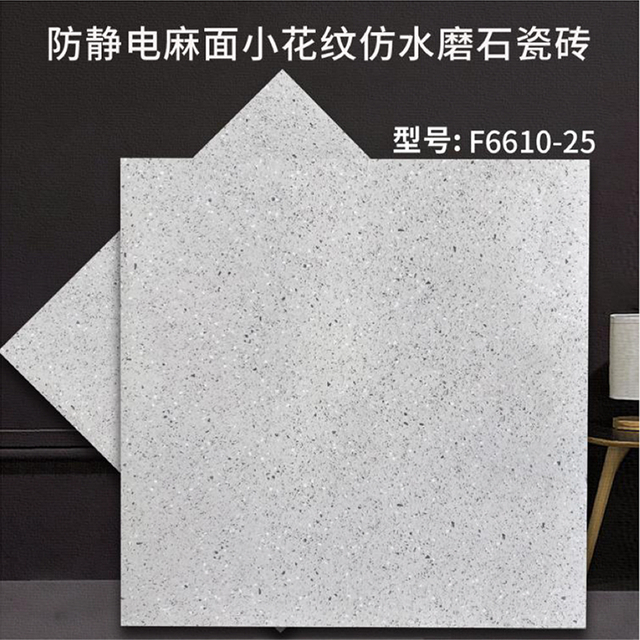

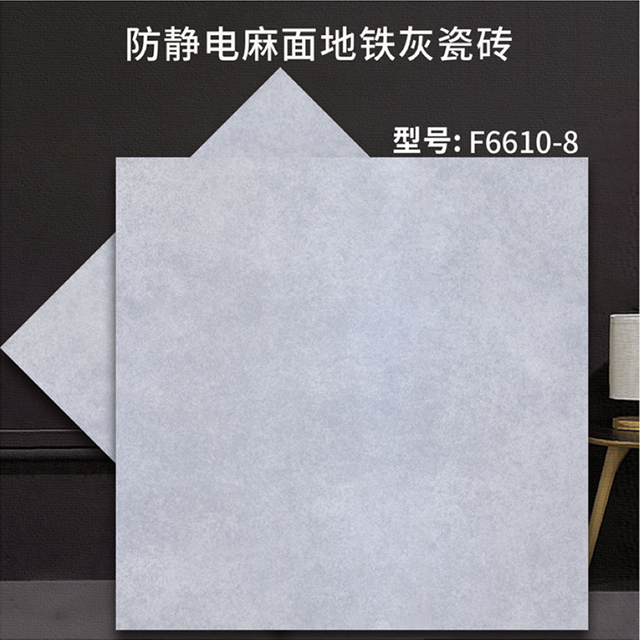

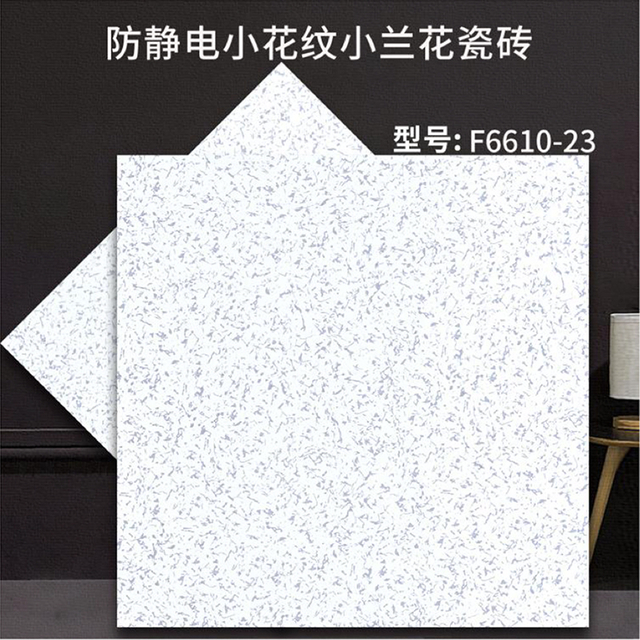

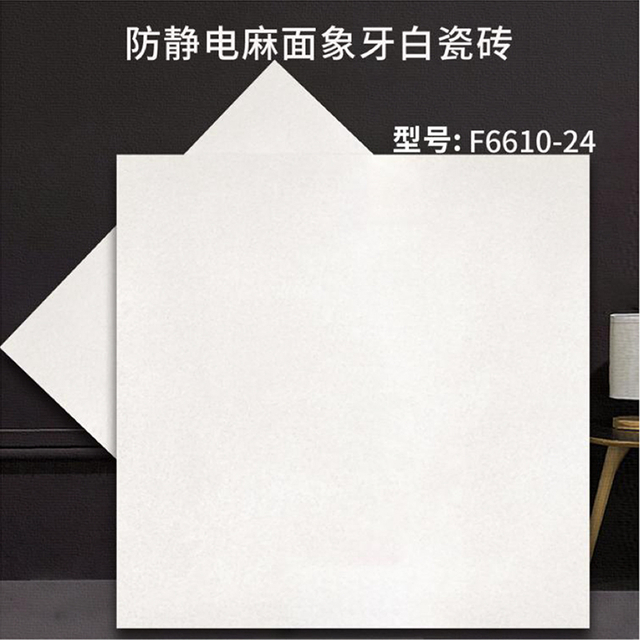

Porcelain Tile Finish for Raised Access Floors


Porcelain tile finishes combine a durable decorative surface with the flexibility of modular raised access flooring systems. They are suitable for commercial offices, reception areas, control rooms, and other indoor environments requiring a hard-wearing and easy-to-clean floor surface.

HUILIAN offers porcelain finish options for compatible raised floor panels, including selected anti-static grades for technical applications. Available designs can be evaluated according to surface appearance, abrasion resistance, electrical properties, and project requirements.

For engineering projects, the porcelain finish, panel construction, load rating, and supporting structure should be assessed as a complete flooring system.

Technical Data Sheet
  Products& Specs Porcelain tile
  Description Porcelain tile is used as a veneer of raised floor systems. Anti static porcelain tile is made of high - tech, high temperature conductive inorganic material added during production, physically modified and fired at high temperature. It has stable anti - static performance and belongs to the Class A fireproof material.
  Dimension 600 x 600 *9mm
  Weight 7.5kg
  Fire Resistance Class A
  Surface quality At least 95% of the major areas of the porcelain tile have no significant defect
  Bibulous Rate 0.30%
  Resistance to surfaceabrasion 2100r/Class4
  Point-to-point resistance 1.2×108~2.0×108Ω
  Surface resistance 1.4×108~1.7×108(HCI)
  Volume resistance 1.7×108~2.0×108(HCI)
  Inspection basis GB/T 26539-2011 "Anti-static Ceramic Tiles" GB/T 3810.7-2016 "Test methods for Ceramic Tiles - Part 7: Determination of Surface abrasion resistance of glazed tiles"
05

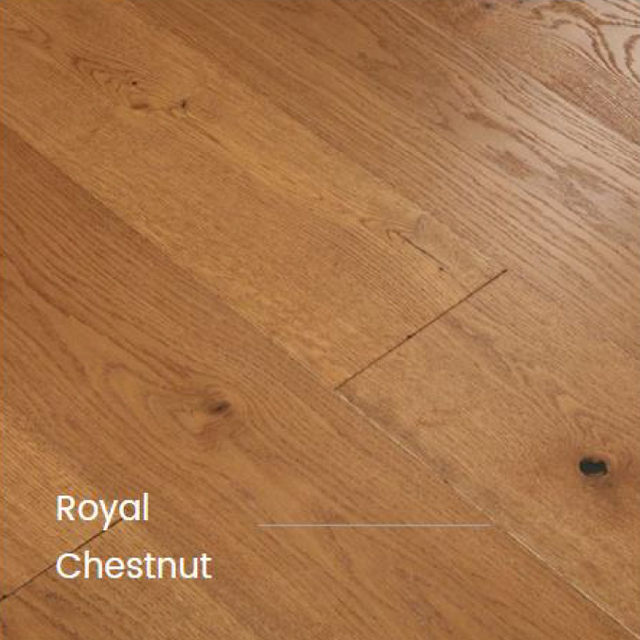

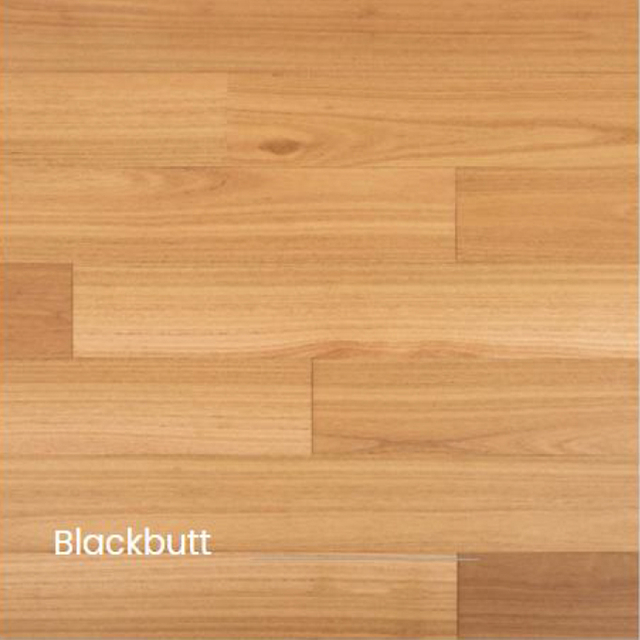

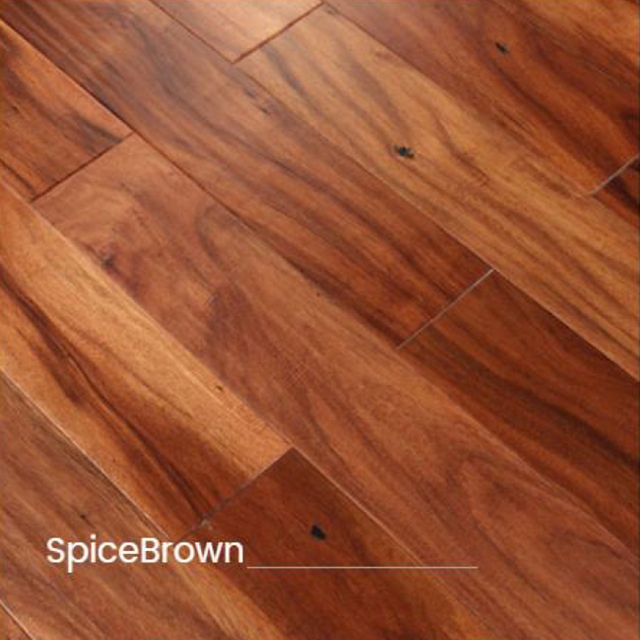

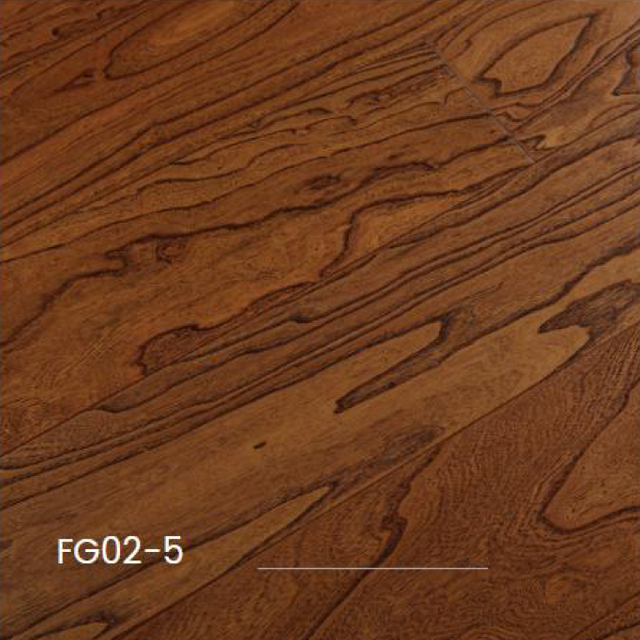

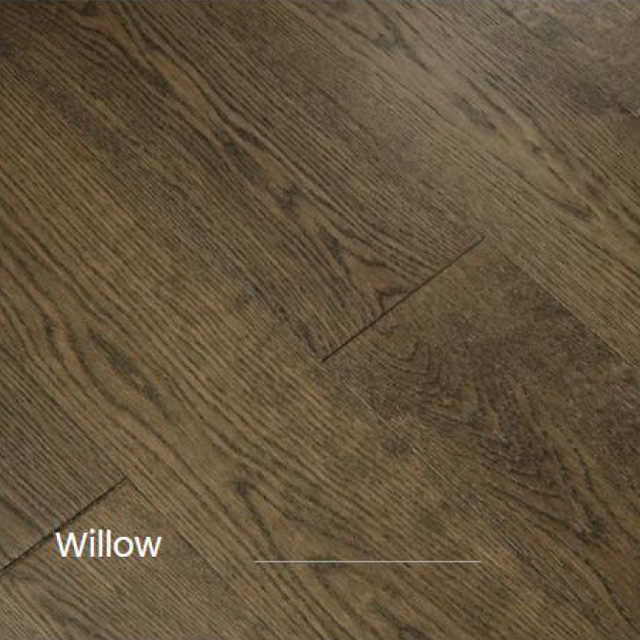

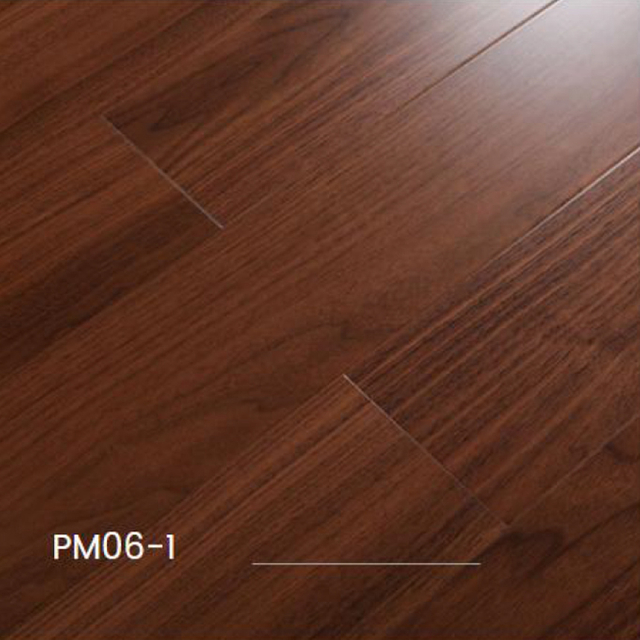

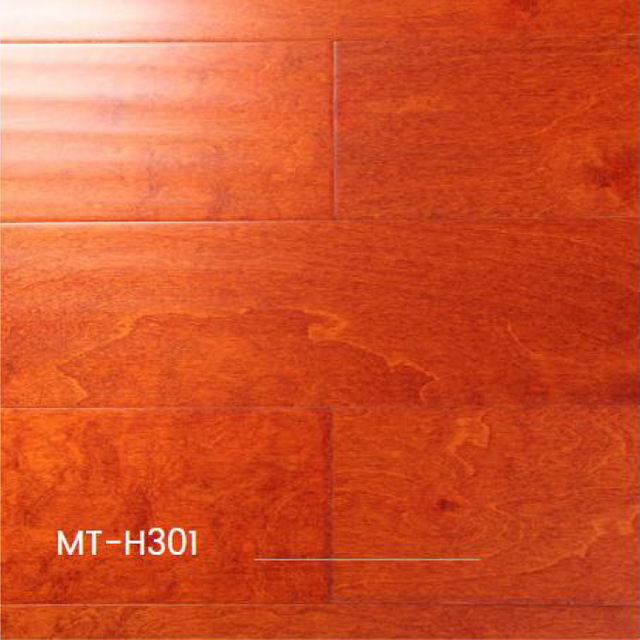

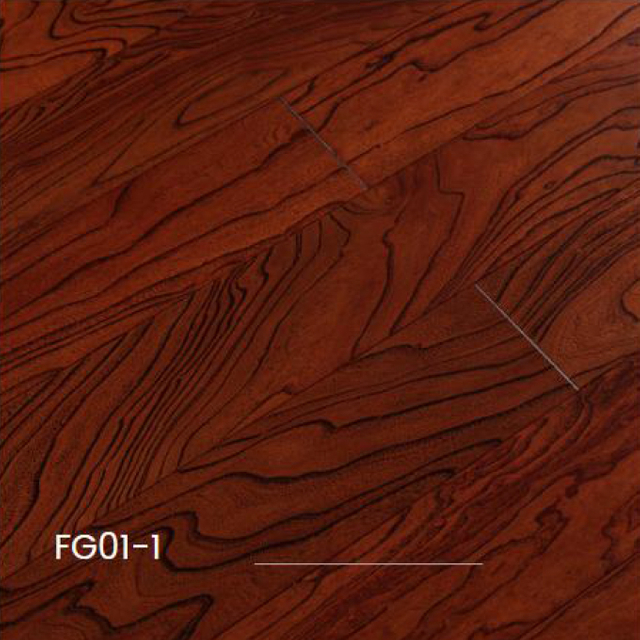

Solid Wood Finish for Raised Access Floors

Solid wood finishes provide a natural appearance for raised access flooring systems in premium offices, conference rooms, hotels, showrooms, and commercial interiors.

Featuring distinctive wood grain patterns and warm tones, these finishes combine decorative appeal with the modular accessibility of raised flooring systems. Available wood species, surface treatments, and installation configurations depend on project specifications.

HUILIAN supports project buyers in selecting compatible wood finish options based on design preferences, maintenance requirements, panel construction, and installation conditions.
