Semiconductor, chip packaging and microelectronics precision manufacturing workshops are high-grade clean spaces with stringent requirements for floor dust resistance, static dissipation, load bearing, airflow organization and dimensional accuracy. Traditional steel and composite flooring is prone to rusting, powder shedding and large dimensional tolerances, failing to meet the long-term production demands of Class 100 / Class 1000 cleanrooms. Die-cast aluminum access flooring features integrated molding technology, ultra-tight dimensional tolerances, stable conductive static-dissipative performance and corrosion resistance with zero dust generation, making it the mainstream flooring system for semiconductor cleanrooms, photolithography bays and chip testing facilities.
Combining technical parameters from professional manufacturers such as Huilian, this article elaborates on the core performance, load-bearing model selection, application value and practical advantages of aluminum access flooring for cleanroom environments.
Static electricity may short-circuit wafers and cause product scrappage, while diffusion furnaces, lithography machines and inspection equipment carry substantial weight. Flooring must simultaneously satisfy three core requirements: static control, air return circulation and dust-free bearing. The industry’s four critical standards are outlined below:
Static electricity can short-circuit chips and render wafers defective. Flooring must maintain a stable conductive resistance range with rapid static decay to ensure 24/7 uninterrupted equipment operation free from electrostatic interference.
Excessive gaps between floor panels accumulate dust and disrupt laminar airflow. Strict control over panel length/width, flatness and diagonal tolerances ensures tight seams without dust-trapping crevices.
Lithography tools, probe stations and heavy packaging equipment impose intense concentrated point loads, while workshop transport trolleys continuously roll across floors. Concentrated load, uniform load and ultimate strength ratings must match equipment weights with limited long-term deflection.
Production environments feature weak acids, cleaning agents and high humidity. Flooring must resist oxidation, rust and surface abrasion shedding, with a non-porous surface compatible with routine dust-free wiping and vacuum cleaning.
When compared to steel, calcium sulfate and other flooring materials, aluminum access flooring’s physical properties perfectly resolve the above pain points.
Aluminum flooring is manufactured via high-pressure integrated die-casting, yielding an inherently dense, non-porous substrate.
• Rust-Free & Radiation-Free: Aluminum naturally resists oxidation. Unlike steel flooring, it never rusts or sheds iron particulate contaminants, complying with zero-pollution, zero-radiation cleanroom standards.
• Superior Fire Safety: Class A1 non-combustible rating per GB/T 8624, emitting no toxic fumes under high-temperature incidents to protect high-value production lines.
For air return or supply zones, aluminum flooring offers multiple perforation options to stabilize laminar airflow:

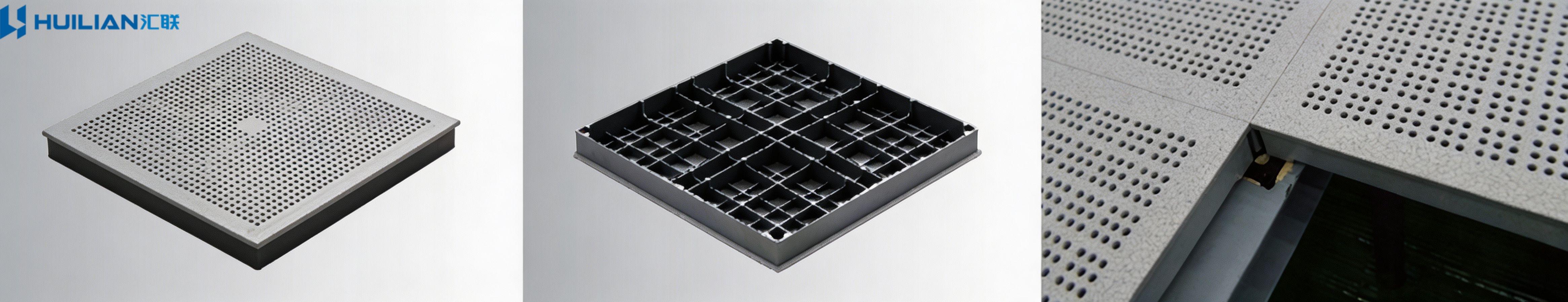

Standard opening rates of 17%, 22% and 25% (adjustable from 10% to 25%). The porous structure delivers minimal wind resistance and uniform airflow, ideal for most temperature & humidity-controlled zones.

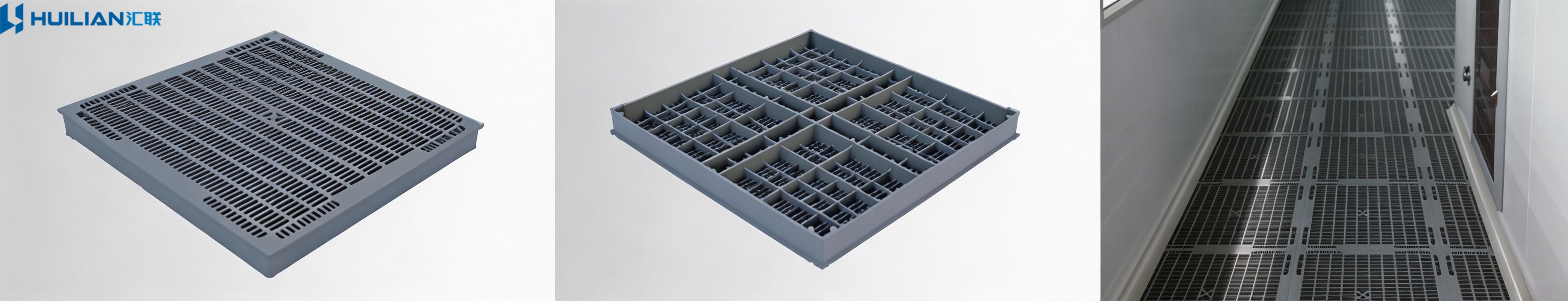

Up to 50% opening rate with slotted grating surfaces, designed for high heat density equipment such as lithography machines requiring robust heat exhaust ventilation.
High-precision casting molds control panel dimensions at 600+0.00mm/600-0.20mm with flatness tolerances of ±0.20mm. Tight seams eliminate turbulent airflow and dust accumulation.
Cleanrooms house heavy multi-ton equipment such as lithography tools.

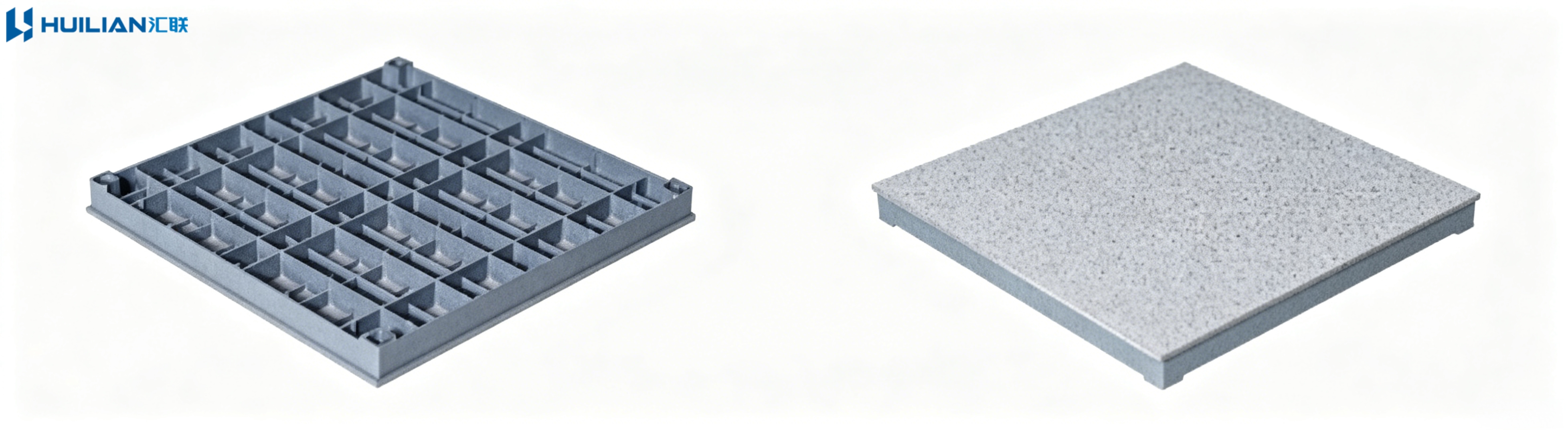

Solid aluminum blind panels form the foundational core of aluminum access flooring systems. Unlike honeycomb and grated panels, solid blind panels feature a fully dense die-cast aluminum body with no perforations. They prioritize load bearing, dust suppression, static dissipation and spatial partitioning. Huilian’s HLS series blind panels deliver concentrated loads exceeding 3000kgf (HLS3000) with ultimate strength of 6000kgf and deflection limited to ≤2.0mm, supporting heavy machinery without permanent deformation.
Aluminum has only 1/3 the density of steel. The low-weight flooring system reduces structural load on building slabs, making it ideal for factory retrofits and upper-floor cleanroom construction.
Conductive gaskets establish continuous electrical contact between panels and pedestals. Aluminum is non-magnetic and does not interfere with precision magnetic fields.

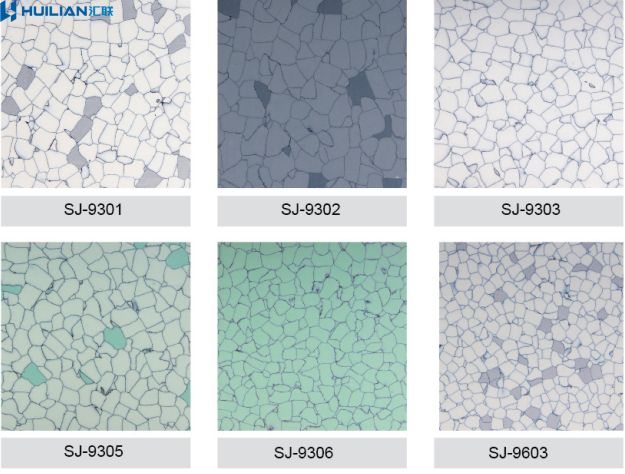

ESD conductive PVC or high-wear HPL coverings are available in multiple patterns and colors. PVC coatings resist chemical corrosion and withstand repeated cleaning with workshop detergents.
• Custom perforation rates for ventilated panels form underfloor air supply plenums, stabilizing cleanroom temperature and humidity while reducing equipment cooling energy consumption.
• Special surface treatments including nickel-chromium electroplating and conductive epoxy coatings deliver resistance to weak acids, alkalis and frequent disinfection cleaning.
• 100% recyclable aluminum material meets green low-carbon standards and environmental assessment requirements for semiconductor fabs.
Modern aluminum flooring systems offer premium upgrades tailored for smart factory demands:

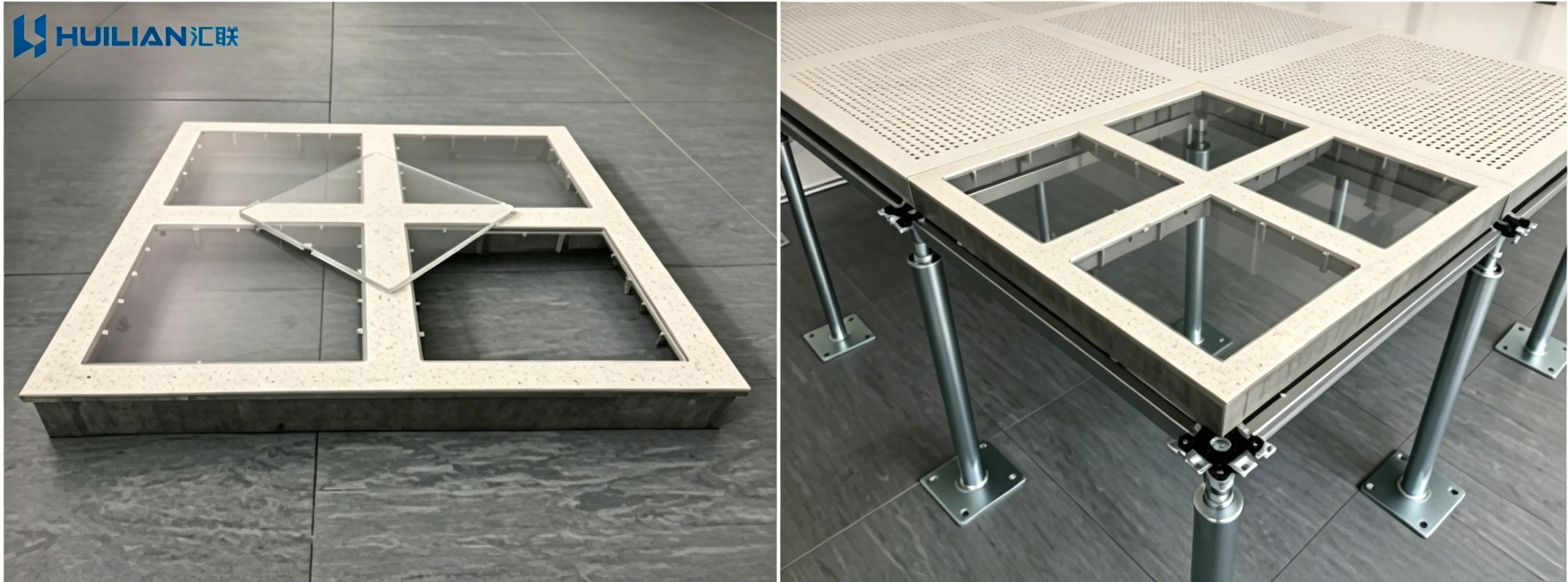

Square cutouts covered with transparent acrylic sheet integrated into blind panels, enabling visual inspection of underfloor pipelines without panel removal to simplify maintenance.
While aluminum flooring carries a higher upfront cost than steel flooring (approximately 2–3 times), it boasts a service life exceeding 20 years with corrosion-free low maintenance. The fully recyclable material lowers Total Cost of Ownership (TCO) for long-term semiconductor facility asset holders.
Integrated die-cast aluminum panels feature non-capillary dense surfaces. Electroplated or epoxy coatings resist abrasion and flaking, eliminating metallic dust and debris that contaminate workshop air. Unlike steel flooring prone to rust debris and composite flooring prone to surface peeling, aluminum flooring consistently maintains Class 100 / Class 1000 cleanroom standards, reducing particle defects on wafers and significantly improving production yield. Ultra-tight dimensional tolerances minimize panel seam gaps to eliminate dust-trapping crevices; routine maintenance only requires dust-free vacuuming and neutral wet wiping to sustain cleanroom compliance.
Aluminum substrate inherently conducts electricity, eliminating the need for extra conductive adhesive strips. Panels, pedestals and grounding grids form a complete conductive path. Static charge dissipates from 5000V to 0V in under 0.2 seconds, rapidly discharging static generated by personnel and equipment. The system complies with SEMI and GB/T36340 semiconductor static control standards, preventing electrostatic damage to precision wafers and test chips.

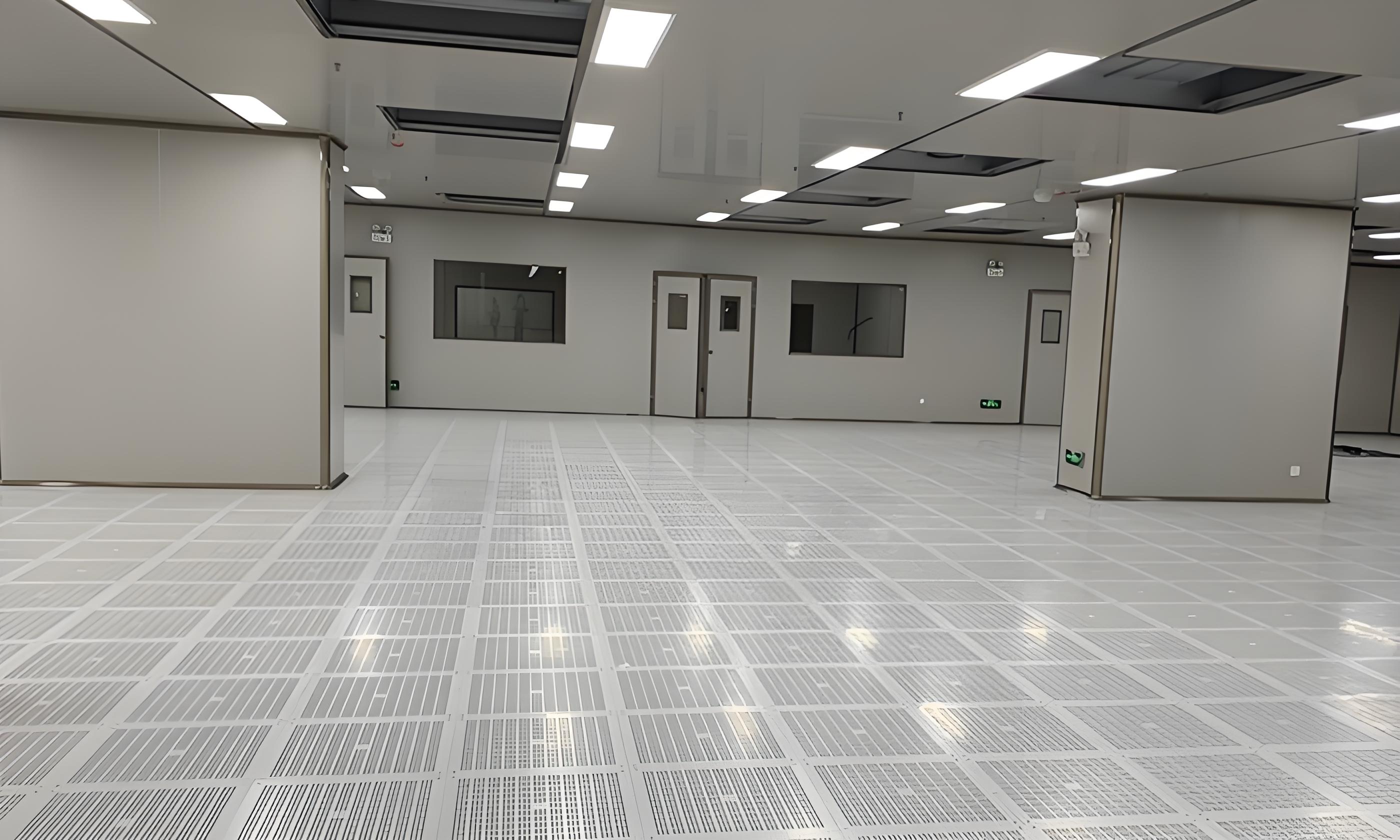

The underfloor cavity of aluminum access flooring functions as an underfloor air supply and return plenum. Matched with customized ventilated panels, it creates uniform laminar airflow, stabilizing indoor temperature and humidity while eliminating hot and cold zones. The cavity conceals power cables, vacuum pipelines and cooling lines without ground trenching. Production line reconfiguration or equipment upgrades only require partial panel removal via suction cups, avoiding damage to cleanroom flooring and drastically shortening production downtime for renovations.
Aluminum naturally resists oxidation and rust. In high-humidity environments with weak corrosive chemicals from semiconductor cleaning processes, it avoids rust bulging and paint peeling common with steel flooring. With a service life of 15–20 years, it only requires simple vacuum cleaning with no frequent replacement or renovation, delivering far lower long-term maintenance investment than alternative raised floor materials.
A mixed paving strategy is recommended for different functional areas of semiconductor workshops, based on Huilian’s official technical parameters:
Zone Type |
Recommended Aluminum Flooring Type |
Key Parameters & Features |
Application Scenarios |
Photolithography / Etching Core Tool Bays |
Solid Aluminum Blind Panels |
HLS1000–HLS3000 (1000–3000kgf concentrated load); ESD PVC surface covering |
Exposure tools, ion implanters requiring ultra-high load bearing and zero dust |
Wafer Testing & Packaging Workstations |
Solid Aluminum Blind Panels |
HLS500–HLS700 (500–700kgf concentrated load); Wear-resistant PVC / HPL coverings |
Assembly lines with frequent pedestrian traffic |
Air Conditioning Plenum Air Return Layers |
Aluminum Honeycomb Panels |
17% / 25% opening rates for uniform airflow |
Large-area workshop air supply & return floors to maintain positive laminar flow |
High-Heat Equipment Undercroft |
Aluminum Grated Panels |
50% maximum opening rate for high ventilation |
Heat dissipation beneath high-power power cabinets and dry pumps |
Visitor Walkways & Auxiliary Zones |
Solid Blind Panels with Epoxy Coating |
Conductive epoxy coating or bare substrate |
Cost-effective, abrasion-resistant and easy to clean |
1. Use dust-free vacuum cleaners for daily dry cleaning; hard bristle brushes are prohibited to avoid surface scratching.
2. Wipe surfaces with neutral dedicated cleanroom cleaners; strong acids and alkalis shall not be used to prevent corrosion of conductive coverings.
3. Adjust floor pedestals quarterly to calibrate overall flatness and eliminate uneven panel edges.
4. Deep clean perforated ventilated panels every six months to remove dust buildup and guarantee unobstructed air circulation.
5. Seal panel seams promptly after equipment renovations or pipeline maintenance to prevent particulate infiltration into underfloor cavities.
Flooring systems in semiconductor cleanrooms directly impact production yield, equipment safety and long-term operational costs. Aluminum access flooring delivers ultra-precise dimensional control, tiered heavy-load capacity, stable dust-free static dissipation, corrosion resistance and extended service life, fully meeting the strict construction standards of Class 100 / Class 1000 microelectronics workshops.

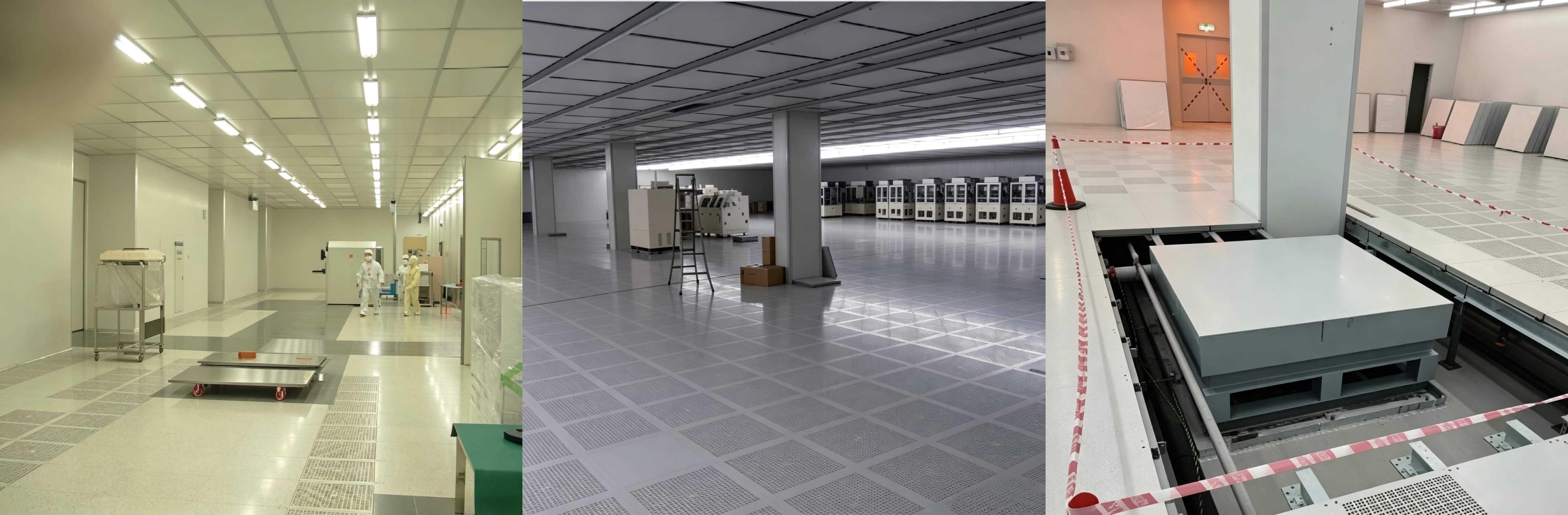

Huilian’s full series of aluminum access flooring has been deployed in well-known global microelectronics projects including Nantong Fujitsu, Thailand MCNEX and Malaysia Tongfu Microelectronics, becoming the standard floor solution for high-end cleanroom construction.
Customization of ventilation rates, surface coatings and panel dimensions is available. We provide one-stop raised floor solutions for chip manufacturing, packaging & testing and precision electronics cleanrooms, fully satisfying third-party acceptance requirements for cleanroom construction, environmental assessment and static control.
