Static electricity causes billions of dollars in annual losses to global data centers, electronics manufacturing plants, pharmaceutical cleanrooms, and aerospace laboratories. Choosing the wrong surface finish for anti-static calcium sulfate raised access floors often results in ineffective ESD protection, frequent floor replacement, higher maintenance costs, and non-compliance with international IEC and ESD industry standards.
Three surface finishes dominate the global anti-static raised flooring market: HPL, PVC, and anti-static ceramic. Most international buyers face difficulties selecting the optimal option due to uncertainties regarding service life, ESD performance, site conditions, and project budgets. With over 28 years of specialized experience manufacturing calcium sulfate anti-static raised floors, Jiangsu Huilian Raised Floor has compiled this comprehensive selection guide based on thousands of successful projects across Europe, Southeast Asia, the Middle East, and North America. This guide helps global clients make one-time accurate flooring decisions and avoid post-installation risks.
1. All three finishes meet international ESD standards with a surface resistance of 10⁶~10⁹Ω, fully applicable to server rooms, cleanrooms, and electronic workshops.
2. PVC anti-static floors feature the lowest upfront cost, making them the ideal choice for budget-friendly cleanrooms and R&D laboratories.
3. HPL-finish raised floors deliver outstanding cost performance for office data centers and low-traffic IT rooms with simple daily maintenance.
4.Ceramic anti-static raised flooring offers highly stable, long-lasting electrostatic discharge (ESD) performance. It features exceptional wear resistance and an aesthetically pleasing, easy-to-clean surface, making it perfectly suited for high-traffic control rooms, command centers, and premium computer rooms. For heavy-load environments, it is essential to ensure that the pedestals meet the required load-bearing standards and to avoid direct impacts from sharp or heavy objects.
5. Jiangsu Huilian provides complete customized calcium sulfate raised floor solutions with three finish options for global bidding and engineering projects.

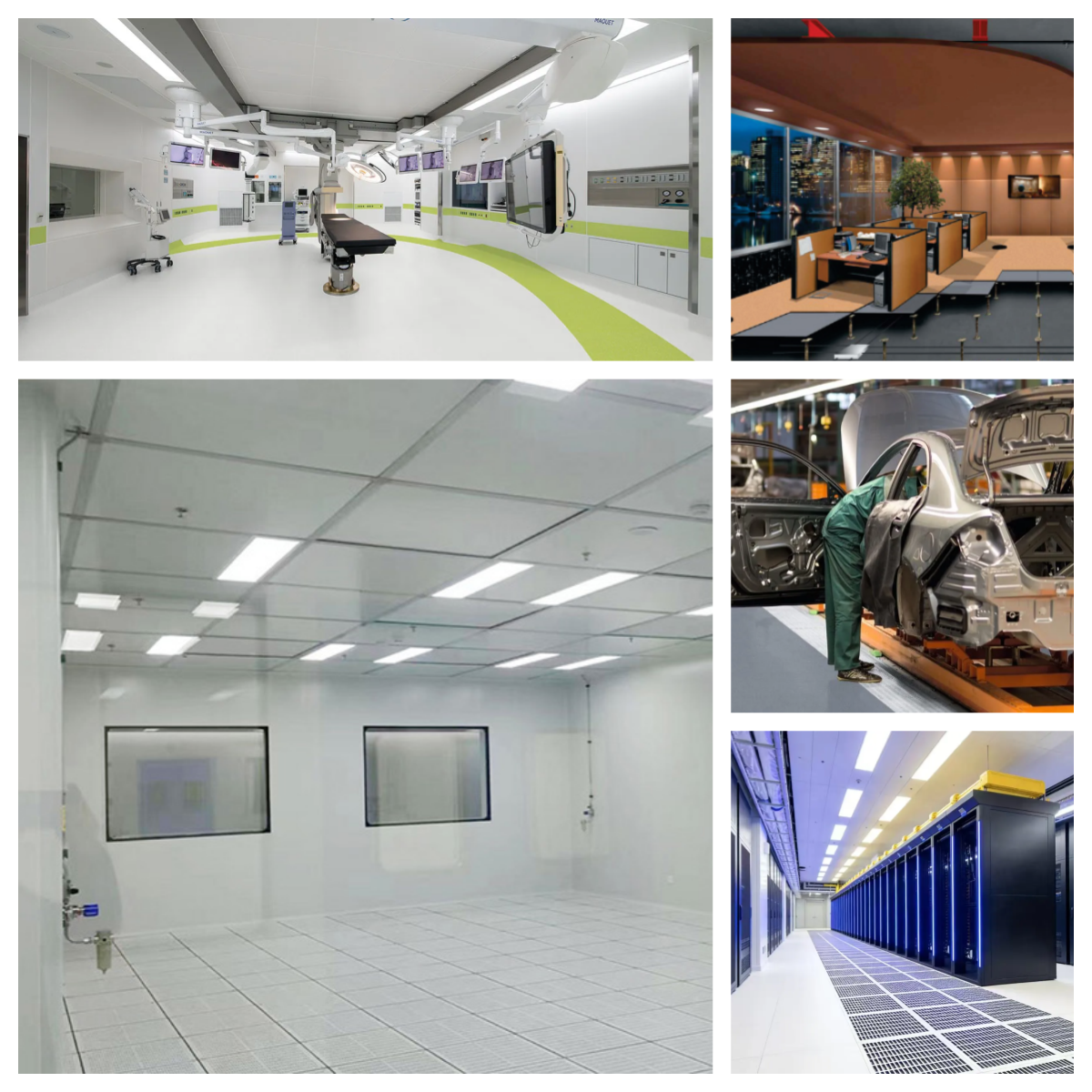

Calcium sulfate anti-static raised access floors represent the mainstream high-end solution in the global market. Each floor panel consists of a high-density calcium sulfate core, galvanized steel cladding, an optional HPL/PVC/ceramic surface finish, and matched adjustable galvanized steel pedestals and stringers. The hollow underfloor structure enables concealed layout of power and network cables, supports air circulation and ventilation, and eliminates static accumulation. This effectively protects precision electronic equipment from electrostatic breakdown and ensures stable operation of high-tech spaces.
-High-density Data Centers & Server Rooms: Supports heavy server cabinet loads and ensures stable ESD grounding performance.
- Pharmaceutical & Electronic Cleanrooms: Features low dust emission and chemical corrosion resistance to meet strict ESD control requirements.
- Semiconductor & Automotive Electronic Workshops: Adapts to frequent trolley movement and high pedestrian traffic.
- Aerospace & Military Laboratories: Complies with stringent international safety and fire protection standards.
- Smart Commercial Offices: Balances decorative aesthetics and basic anti-static protection for office electronic devices.
Core Function |
Detailed Explanation |
Precision Equipment Protection |
Prevents electrostatic discharge damage to chips, servers and testing instruments, reducing equipment scrap rates and operational downtime losses. |
Workplace Safety Enhancement |
Eliminates static spark risks in areas storing flammable chemicals, fully complying with local factory fire safety codes. |
International Compliance |
Meets ESD S20.20 and IEC61340 standards, supporting third-party inspections for EU and US project acceptance to avoid penalty risks. |
Long-term Cost Savings |
Reduces equipment maintenance expenses and extends floor service life, cutting frequent replacement and renovation costs. |
Underfloor MEP Layout |
Conceals power and data cables while optimizing cold air circulation, simplifying later circuit. adjustments and factory renovations. |

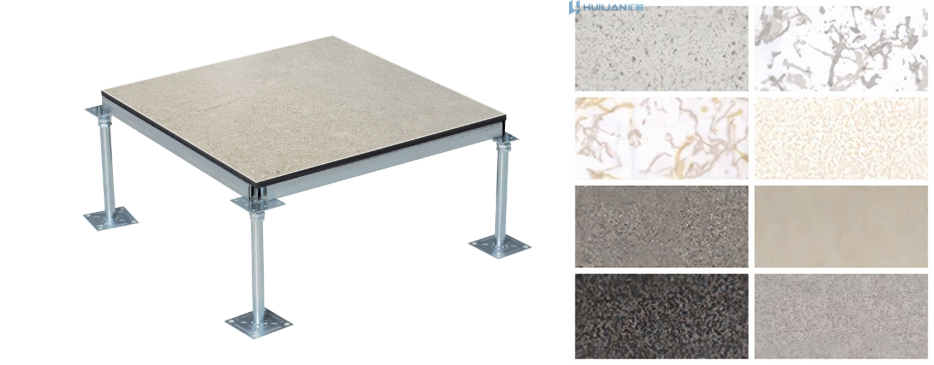

Ideal Applications: Small and medium-sized data centers, office computer rooms, low-traffic telecommunication equipment rooms, medium-budget IT projects
Featuring a stable surface resistance of 10⁶~10⁹Ω that conforms to global ESD specifications, the high-pressure laminate integrates built-in anti-static formulas to deliver uniform and consistent conductivity compatible with standard floor grounding systems. Huilian HPL panels with customized conductive PVC trim to prevent edge bubbling and resistance failure, a common quality defect of low-cost products from small manufacturers.
With a 1.0~1.2mm surface thickness and AC4/AC5 commercial wear resistance grade, HPL finishes offer excellent scratch, stain, impact and fade resistance. It delivers moderate moisture resistance but is not recommended for long-term use in extremely humid and corrosive workshop environments.
Available in matte, glossy and anti-slip textured finishes with standard grey, black and beige colors. Textured options effectively improve anti-slip performance for public computer rooms.
Daily maintenance only requires dry microfiber mopping and weekly cleaning with neutral anti-static detergents. Wax, ammonia and bleach are strictly prohibited. No professional regular maintenance is needed, resulting in the lowest annual maintenance cost among the three finishes, with a service life of over 10 years.

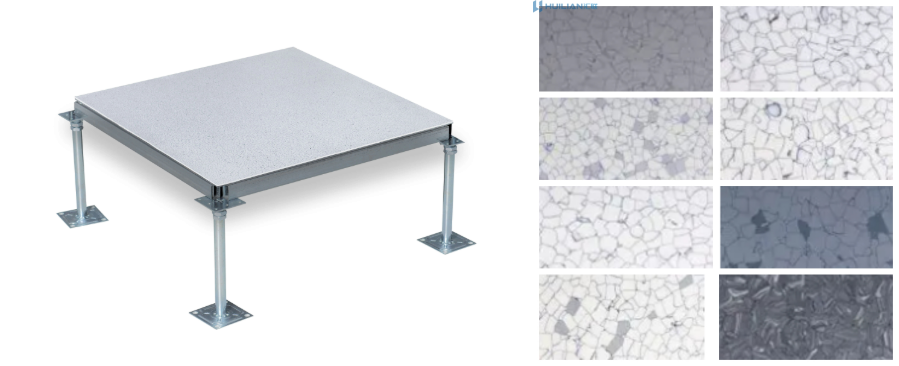

Ideal Applications: Pharmaceutical cleanrooms, biotech laboratories, electronic assembly workshops, cost-sensitive industrial ESD projects
Conductive PVC finishes maintain stable and non-decaying conductivity during long-term operation. With low dust emission, it fully meets ISO cleanroom standards and maintains a uniform resistance of 10⁶~10⁹Ω, making it the most widely adopted finish for global GMP pharmaceutical workshop projects.
Equipped with a 2.0mm thick wear layer, PVC floors withstand a concentrated load of over 3000N and a uniform distributed load of over 7500N/㎡. It boasts outstanding crack resistance and aging resistance, capable of enduring frequent rolling of forklifts and hand carts on production lines.
It provides realistic marble and wood grain textures with more than 70 color options, including warm gray, taupe and coffee brown. The modular splicing design facilitates functional zoning of laboratory spaces.
Daily vacuuming and dry mopping, weekly neutral cleaning, and annual protective polishing are sufficient for daily upkeep. No professional maintenance team is required, ensuring stable performance for more than 10 years.

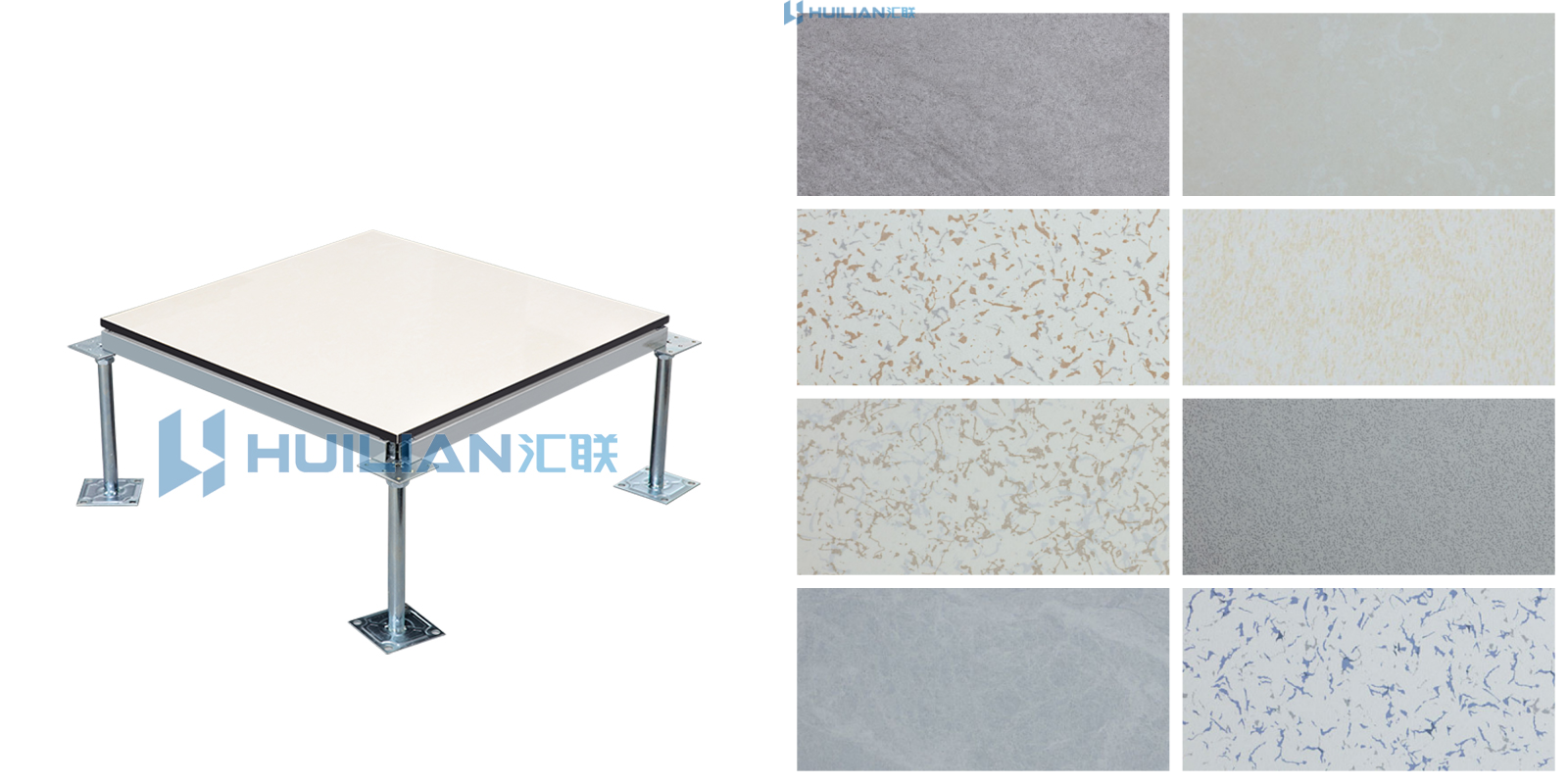

Ideal Applications: high-traffic control rooms, petrochemical and chemical laboratories, premium government/military data centers, precision instrument manufacturing workshops, and fixed asset investment projects focused on long-term ROI
The ceramic body features inherently stable and long-lasting ESD properties with a fixed resistance of 10⁶~10⁹Ω. Unlike HPL and PVC, it requires no external anti-static coating that may age and fail over time. Additionally, no extra copper foil laying is needed during installation, greatly saving construction labor costs.
The dense, thick ceramic glaze layer delivers top-tier scratch and impact resistance among the three finishes, with far superior fire resistance to polymer materials. Under normal usage, it offers a service life of over 15 years and adapts to harsh environments with high temperature, corrosion and heavy pedestrian traffic.
Available in high-gloss and matte surfaces with elegant solid colors and customizable artistic patterns, ceramic finishes provide a premium visual effect that meets high-end engineering decoration standards.
Daily sweeping and weekly neutral mopping are required, with quarterly professional deep cleaning recommended. Though the upfront procurement cost is higher, it requires almost no replacement throughout its service life, delivering the best long-term ROI for 15+ year fixed-asset projects.
Comparison Item |
HPL Finish |
PVC Finish |
Ceramic Finish |
ESD Resistance |
10⁶~10⁹Ω, stable conventional ESD performance |
10⁶~10⁹Ω, long-term stable conductivity |
10⁶~10⁹Ω, permanent inherent anti-static property |
Surface Thickness |
1.0~1.2mm |
2.0mm |
Dense thick ceramic layer |
Wear & Scratch Resistance |
High |
High |
Very High |
Anti-Aging Grade |
Moderate |
High |
Ultra High |
Average Service Life |
≥10 Years |
≥10 Years |
≥15 Years |
Daily Maintenance |
Dry mop + weekly neutral cleaning |
Vacuum cleaning + weekly mop + annual polishing |
Daily sweeping + weekly mop + quarterly professional cleaning |
Core Application Scenarios |
Medium & small data centers, office IT rooms |
Cleanrooms, biotech labs, electronic factories |
Command Center, high-end laboratories |
Fire Resistance |
Medium |
Medium |
Excellent |
- High-humidity or chemical volatile workshops: Prioritize ceramic or PVC finishes, avoid HPL.
- Strict ISO cleanrooms and pharmaceutical laboratories: Choose PVC anti-static floors.
- Dry indoor data centers and offices with normal foot traffic: Select cost-effective HPL finishes.
- High-traffic command centers and petrochemical laboratories: Adopt anti-static ceramic floors.
- Short-term tight budget (project lifespan within 10 years): PVC and HPL finishes with low upfront costs are preferred.
- Long-term fixed-asset investment (over 15 years): Ceramic finishes deliver optimal long-term value despite higher initial expenditure.
High-end government and corporate headquarters suit elegant ceramic finishes; modern minimalist laboratories adapt to PVC wood grain styles; standard commercial data centers match classic matte HPL finishes perfectly.
Maintenance Frequency |
HPL Floor |
PVC Floor |
Ceramic Floor |
Daily |
Dry microfiber mopping for dust removal |
Full-surface vacuum cleaning |
Dry sweeping to remove granular debris |
Weekly |
Mopping with certified neutral anti-static cleaner |
Neutral detergent mopping & timely spill cleanup |
Cleaning with non-corrosive neutral detergent |
Monthly |
Inspect surface scratches and local damage |
Check edge seams and curled corners |
Inspect for ceramic cracks and loose tiles |
Annual |
Deep cleaning with certified detergent |
Full floor protective polish coating |
Professional factory-authorized deep cleaning |
Forbidden Operations |
Waxing, ammonia, bleach, strong acid cleaners |
Oil-based detergents, rough steel wool scrubbing |
Corrosive chemicals, hard sharp impact tools |
A: Which floor boasts the best cost performance for newly established small cleanrooms? A: PVC anti-static flooring features affordable factory prices and stable anti-static performance, making it the preferred option for small and medium-sized biological and electronic cleanrooms. Small trial orders are available.
A: Conductive ceramic tiles are blended with inherent conductive minerals during sintering. Unlike HPL and PVC that rely on surface conductive coatings, they avoid coating aging and failure, with stable resistance even after over 15 years of use.
A: Small-area spaces can be laid independently following supplied installation instructions. For large data center and cleanroom projects, installation guides and remote technical support are available to prevent ESD malfunctions caused by improper grounding.
A: As a mainstream premium substrate for global high-end computer rooms, calcium sulfate is lightweight, high-load-bearing, fireproof and eco-friendly with low formaldehyde. It resists deformation amid temperature and humidity shifts to ensure long-term stable floor performance.
The choice of surface finish directly determines the ESD performance and total cost of ownership. For budget-sensitive cleanrooms, choose PVC; for standard office server rooms, opt for HPL; and for high-humidity, corrosion-resistant environments or high-traffic command centers, ceramic is the ideal choice.

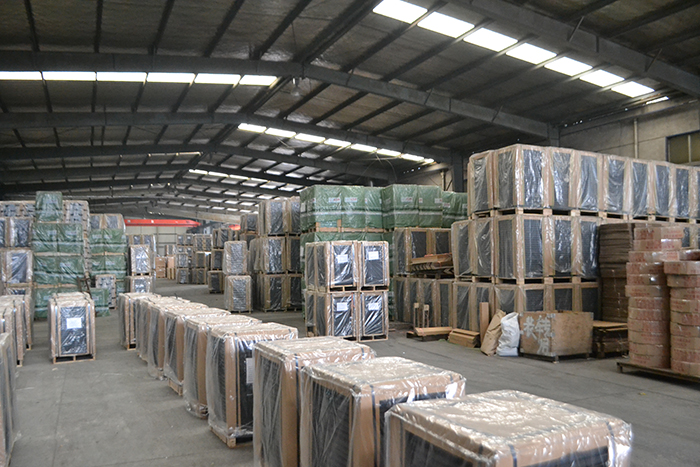

As an experienced Chinese manufacturer with 28+ years of global export experience, Jiangsu Huilian Raised Floor provides one-stop anti-static raised floor solutions covering production, customized design and global logistics. If you have ongoing or upcoming data center, cleanroom or electronic factory flooring projects, send your project specifications to us for free customized design drawings and factory-direct prices with no intermediate markups.
