Top 5 Access Floor Installation Tips You Need to Know

    ​Installing an access floor—whether for a data center, server room, office, or lab—is more than just laying panels on pedestals. It’s a precise process that directly impacts the floor’s stability, safety, and long-term performance. A poorly installed access floor can lead to costly issues: squeaking panels, uneven surfaces, damaged underfloor cabling, or even equipment failure. To help you avoid common pitfalls and ensure a smooth, durable installation, we’ve rounded up the top 5 essential tips you need to know before you start.​

 1. Prep the Subfloor Thoroughly (Don’t Skip This Step!)​

The foundation of a successful access floor installation is a clean, level, and stable subfloor. Many installation failures stem from cutting corners during this critical prep phase. Start by clearing the subfloor of all debris, dust, and oil stains —even small particles can create unevenness or prevent pedestals from adhering properly. Next, use a laser level or 2-meter straightedge to check for slopes or high spots; the subfloor should have a maximum deviation of 2mm over 2 meters to ensure uniform pedestal support. If the subfloor is uneven, use self-leveling compound to smooth it out, and allow it to fully cure (typically 72 hours) before proceeding. Additionally, confirm the subfloor’s strength—concrete subfloors should reach at least C20 strength to support the weight of the access floor system and equipment above. Skipping subfloor prep is a shortcut that will lead to shaking, uneven panels, and premature wear down the line.

 2. Mark the Grid Layout Accurately (Start from the Center)

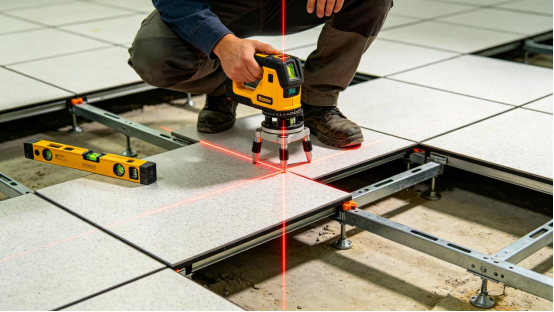

Precise grid layout is key to ensuring panels align perfectly, minimizing gaps, and avoiding awkward cuts along the perimeter. Instead of starting from the wall, begin marking your grid from the center of the room—this ensures symmetry and reduces the number of uneven or ill-fitting edge panels. Use a laser level or chalk line to mark the grid lines, matching the spacing to your panel size (most standard panels are 600x600mm). Double-check the measurements to ensure consistent spacing between pedestal locations—even a small error can snowball into misaligned panels later. For rooms with irregular shapes or obstacles (like columns), mark cut lines in advance to ensure a clean, professional finish. Taking the time to get the grid right will save you hours of frustration during panel installation and prevent unsightly gaps or misalignments.

 3. Choose the Right Pedestals and Secure Them Properly​

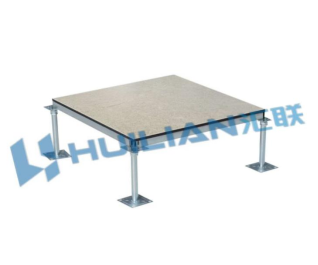

Pedestals are the backbone of your access floor system—they bear the entire weight of the panels, equipment, and foot traffic. Choosing the wrong pedestals or installing them incorrectly is a recipe for disaster. First, select pedestals that match your project’s load requirements: standard offices may use light-duty pedestals, while data centers with heavy server cabinets (800–1500kg each) need heavy-duty pedestals with a load capacity of at least 1000kg per unit. For screw-down or heavy-load systems, add stringers between pedestals to enhance stability and distribute weight evenly. When installing pedestals, place them at every grid intersection and secure them with adhesive or expansion bolts (for concrete subfloors) to prevent shifting. Use a laser level to adjust each pedestal to the correct height, ensuring all pedestals are perfectly level—even a 1mm deviation can cause panels to rock or squeak. For seismic zones or high-traffic areas, opt for seismic-rated pedestals to ensure long-term stability.

4. Prioritize Anti-Static and Grounding Compliance (Critical for Tech Spaces)

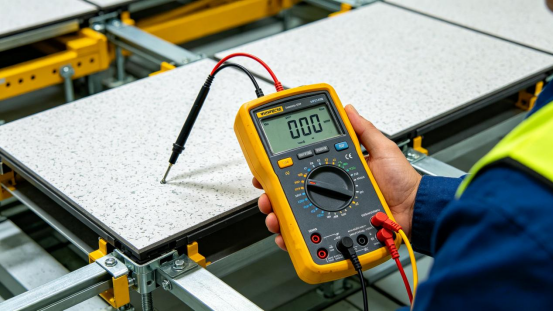

For data centers, server rooms, and labs, anti-static performance and proper grounding aren’t optional—they’re essential to protecting sensitive electronic equipment. Even a small electrostatic discharge (ESD) can damage server chips or cause hidden malfunctions, so every step of the installation must prioritize ESD protection. First, ensure your access floor panels have a surface resistance between 10⁶–10⁹ Ω, the industry standard for anti-static performance. During installation, install a grounding grid using copper foil (width ≥20mm) beneath the floor, laying it in a 600x600mm grid and securing intersections with conductive tape or soldering. Connect the grounding grid to the building’s main ground bar, and ensure every panel makes full contact with the grid via conductive pads or clips. After installation, use a megohmmeter to test surface resistance and a ground resistance tester to confirm the grounding system meets standards (ground resistance ≤1Ω for data centers). Neglecting grounding can lead to costly equipment damage and safety hazards.

5. Finish with Precision and Conduct Post-Installation Checks

The final steps of installation are just as important as the prep work—they ensure your access floor is safe, functional, and long-lasting. When laying panels, start from the center of the grid and work outward, pressing each panel firmly onto the pedestals to ensure a tight fit. Maintain a 1–2mm gap between panels to accommodate thermal expansion and prevent warping or buckling. For perimeter panels or areas around obstacles, use a circular saw or angle grinder to make precise cuts (wear proper PPE for steel-edge panels) and add edge trims or ramps for safe transitions. Once all panels are laid, conduct a thorough post-installation check: walk across the entire floor to check for squeaks,shaking, or uneven spots; verify that all panels are secure and gaps are consistent; test anti-static performance and grounding again; and inspect underfloor cabling (if installed) for any damage. For data centers, also check ventilation panels to ensure they’re properly aligned with cold aisles and deliver uniform airflow. Address any issues immediately—small problems now will only get worse over time.

 Final Thoughts: Invest in Precision for Long-Term Success

Installing an access floor is a detail-oriented process, but following these 5 tips will help you avoid common mistakes and ensure a system that’s stable, safe, and built to last. Whether you’re installing a floor for a small office or a high-density data center, remember: prep work, precision, and compliance are non-negotiable. If you’re unsure about any step, work with a qualified installer—inexperienced installation can lead to costly repairs, equipment damage, and downtime later. A well-installed access floor isn’t just a surface—it’s a reliable foundation for your space’s critical infrastructure.
