How to Choose Raised Access Floor Height: 15cm / 25cm / 40cm Application Scenarios Ultimate Guide

This guide breaks down 15cm, 25cm, 40cm raised access floor heights by core function (cable-only vs underfloor air plenum), application fit, constraints, and best practices—so you pick the right height for cost, performance, and future expansion.

 Core Definition

Finished Height: Vertical distance from finished subfloor to top of floor panel (standard industry measurement).

•15cm: Low-profile, cable-only plenum (minimal airflow)

•25cm: Mid-profile, balanced cable + light airflow

•40cm: High-profile, dedicated underfloor air plenum + dense cabling

 1. 15cm (6 inches) Raised Access Floor

Primary Purpose

Basic cable management only (no underfloor air distribution). Minimal vertical space loss, low cost, fast install.

Ideal Application Scenarios

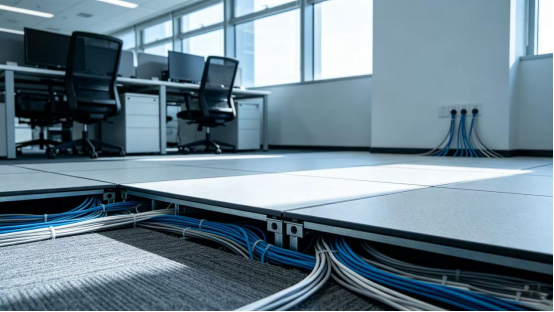

•Open-plan offices, commercial workspaces, co-working: Low-density power/data cables, no heavy HVAC underfloor; preserves ceiling height (critical for <2.8m ceiling).

•Small control rooms, monitoring centers, retail back offices: Light equipment, simple wiring, low heat load.

•Retrofit/renovation projects: Low ceiling height constraints, minimal structural impact, no major floor modification.

•Conference rooms, training spaces: Temporary power/data, no permanent heavy cabling.

Key Specifications & Constraints

Underfloor clearance: ~10–12cm usable space (only flat cables, small trunking; no large ducts/busbars).

•Airflow: Not designed for underfloor cooling; only passive convection.

•Maintenance: Difficult to access/modify cables (tight space, no crawling access).

•Cost: Lowest (standard off-the-shelf pedestals, minimal material).

•Limitation: Cannot support future underfloor AC or dense cabling upgrades.

2. 25cm (10 inches) Raised Access Floor

Primary Purpose

Balanced cable management + limited underfloor airflow. The most versatile standard height—works for most mid-demand spaces.

Ideal Application Scenarios

•Medium server rooms, small data centers, telecom closets: Moderate server density, mixed power/data cables, basic underfloor ventilation (not full cold aisle containment).

•Financial trading floors, control centers, labs: Dense structured cabling, some underfloor ducting, moderate heat dissipation.

•Hospitals, cleanrooms (low-grade): Medical equipment wiring, basic air distribution, easy cable access.

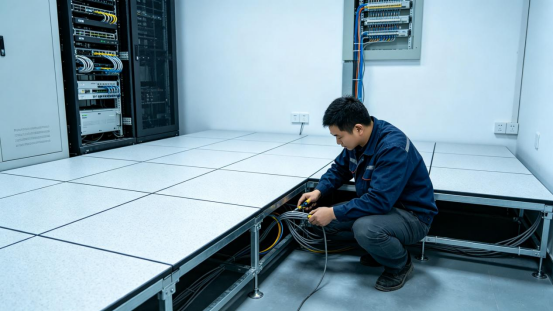

•Industrial control rooms, manufacturing monitoring: Heavy cable trays, occasional maintenance access.

Key Specifications & Constraints

•Underfloor clearance: ~20–22cm usable space: fits cable trays, small ducts, busbars; allows technician kneeling access for maintenance.

•Airflow: Supports light underfloor air distribution (not full static pressure plenum).

•Maintenance: Easy cable routing/upgrades; semi-accessible for repairs.

•Cost: Mid-range (standard pedestals, widely available).

•Limitation: Not sufficient for high-density cooling (hotspots risk if used for full underfloor AC).

 3. 40cm (16 inches) Raised Access Floor

Primary Purpose

Dedicated underfloor air plenum (static pressure chamber) + ultra-dense cabling. Mandatory for high-heat, high-cable critical environments.

Ideal Application Scenarios

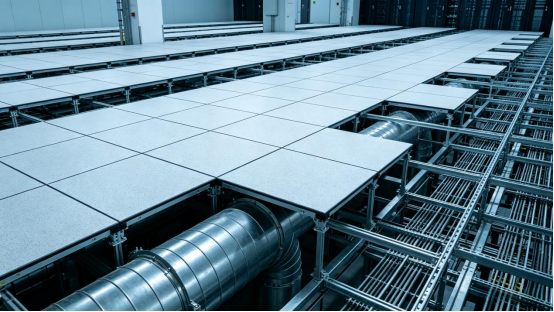

•High-density data centers, Tier 3/Tier 4 server rooms, colocation facilities: Full underfloor cold aisle cooling, redundant power/data, large busbars, chilled water pipes, heavy cable management.

•Semiconductor cleanrooms, pharmaceutical labs: Strict airflow control, HEPA filtration, complex utility routing (gas, water, electricity).

•Large command centers, broadcast studios: Massive audio/video/data cabling, dedicated HVAC underfloor, frequent maintenance access.

•Mission-critical facilities (power plants, defense control): Redundant infrastructure, full underfloor service access.

Key Specifications & Constraints

•Underfloor clearance: ~35–38cm usable space: full crawling access, large ducts, cable trays, pipework, cooling diffusers.

•Airflow: Optimized for underfloor static pressure, cold aisle containment, efficient server cooling (eliminates hotspots).

•Maintenance: Full technician access for upgrades, repairs, and expansion.

•Cost: Higher (sturdier pedestals, thicker panels, custom supports; +30–50% vs 15/25cm).

•Limitation: Reduces ceiling height significantly (requires ≥3.2m total ceiling height); not cost-effective for low-demand spaces.

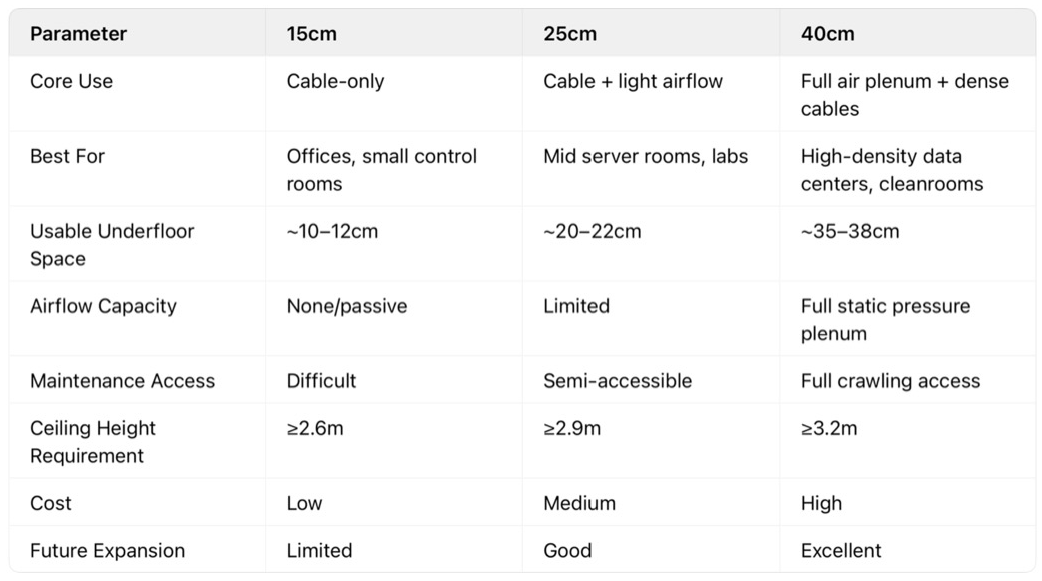

Quick Decision Table (15cm vs 25cm vs 40cm)

Critical Selection Factors (Before Finalizing)

1. Ceiling Height Constraint: Total room height minus floor height = usable headroom. For <2.8m: stick to 15cm; 2.8–3.2m: 25cm; >3.2m: 40cm.

2. Cable Volume & Type: Count power/data cables, trunking, busbars, pipes. 15cm = <50 cables; 25cm = 50–200 cables; 40cm = 200+ cables + ducts/pipes.

3. Cooling Strategy: If using underfloor air conditioning (cold aisle), minimum 40cm (35cm+ clearance for static pressure).

4. Maintenance Frequency: Frequent upgrades → 25cm+; minimal changes → 15cm.

5. Load & Stability: Higher heights need denser, heavier-duty pedestals to avoid deflection (critical for server racks).

Common Mistakes to Avoid

•Choosing 15cm for data centers with underfloor cooling → airflow restriction, hotspots, higher energy use.

•Using 40cm for standard offices → wasted vertical space, unnecessary cost.

•Ignoring future expansion → 15cm often becomes a bottleneck for cable/AC upgrades.

Final Recommendation Summary

•15cm: Low-cost, space-saving for offices, small control rooms (cable-only).

•25cm: Best all-rounder for most commercial/tech spaces (balanced cable + airflow).

•40cm: Must-have for high-density data centers, cleanrooms, mission-critical cooling.
