How To Choose An OA Raised Floor: Specifications, Price, Load Capacity And Selection Guide

Office floors have to do more than provide a finished walking surface.

Modern offices often contain large amounts of power, data, communication and low-voltage cabling. As workstations, meeting rooms and equipment layouts change, these cables may need to be moved or expanded.

Running everything through surface-mounted cable trays or cutting into the existing floor can make future changes more difficult.

This is one reason OA raised floors are widely used in modern office environments.

But how do you choose the right OA raised floor? What size is standard? How much does an OA floor cost? What load capacity should you look for? And how high should the raised floor be?

This guide explains the key factors to consider when selecting an OA access floor for offices, commercial buildings and renovation projects.

What Is an OA Raised Floor?

An OA raised floor, also known as an OA access floor or office raised floor, is a modular flooring system designed primarily for modern office environments.

Unlike conventional flooring, an OA floor creates a service space between the structural slab and the finished floor.

The floor panels are supported by adjustable pedestals, creating an accessible space underneath for power cables, network cables, communication lines and other building services.

When workstation layouts or cable routes need to be changed, individual panels can normally be lifted to access the space below.

This makes the floor more adaptable than a conventional fixed flooring system.

OA raised floors are commonly considered for:

• Open-plan offices

• Corporate offices

• Commercial buildings

• Flexible workplaces

• Co-working spaces

• Office renovation projects

• Offices with frequently changing workstation layouts

The main benefit is not simply the raised height. It is the flexibility of cable management and future space reconfiguration.

What Are the Main Components of an OA Access Floor?

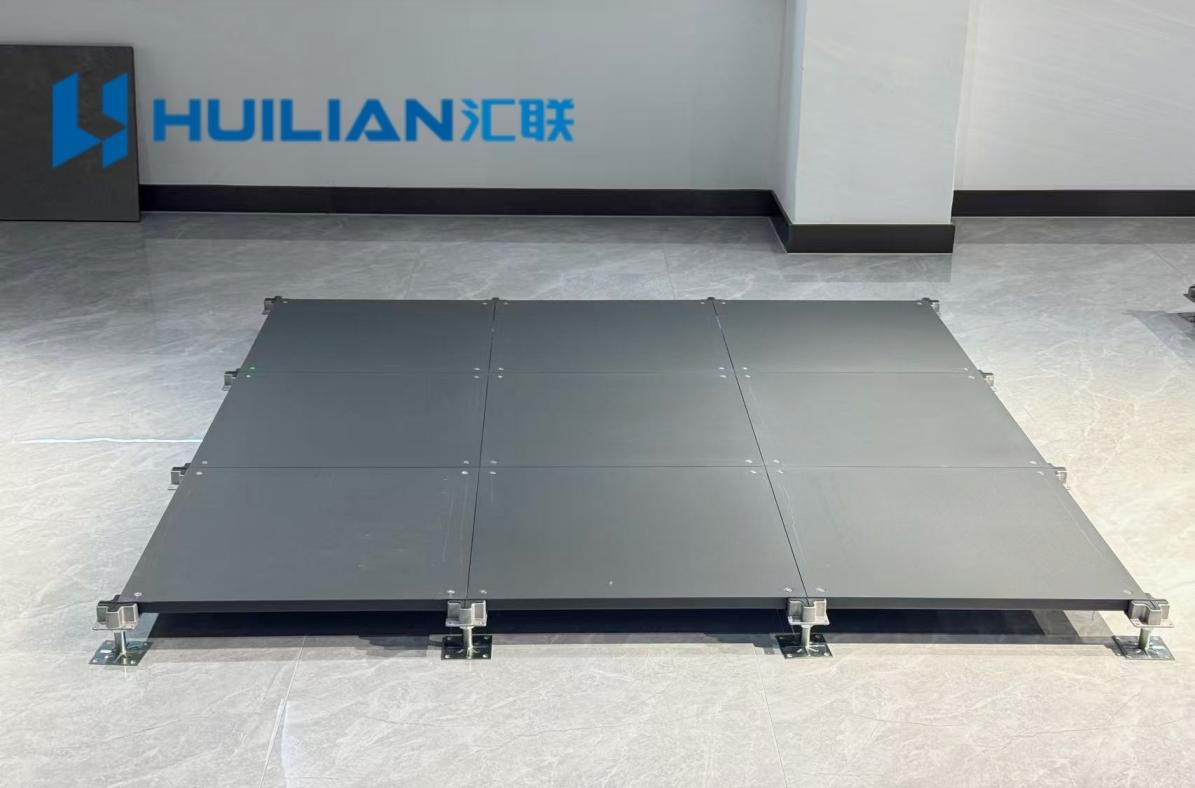

A typical OA raised floor system consists of floor panels, adjustable pedestals and, depending on the system, additional reinforcement components such as stringers.

1. OA Floor Panels

A 600 × 600 mm panel is a common module for OA raised floor systems.

The panel structure and surface finish can vary according to project requirements. Depending on the product, finishes may include carpet, PVC, HPL and other decorative or resilient surfaces.

Because the panels are modular, selected panels can be removed when maintenance or cable changes are required.

2. Adjustable Pedestals

Pedestals support the floor panels above the structural slab.

The required floor height depends mainly on the amount and type of services that need to run underneath the floor.

Some office projects only require a relatively shallow space for power and data cables, while projects with more complex services may require a higher floor system.

The final height should also take the building’s available floor-to-ceiling height into account.

3. Stringers and Reinforcement

Some OA raised floor systems use stringers or other reinforcement components to improve system stability and support specific load requirements.

However, not every OA floor requires the same support configuration.

Whether stringers are necessary depends on factors such as panel construction, pedestal design, expected loads, floor height and the layout of the office.

For areas with higher local loads, the support system should be reviewed as part of the overall floor design rather than selected based on the panel alone.

Why Use an OA Raised Floor in an Office?

The main reason to install an OA raised floor is to make the office infrastructure easier to manage as the space changes.

Flexible Cable Management

Power and data cables can be routed below the finished floor instead of being exposed throughout the office.

This can help keep the workspace cleaner while providing easier access for future changes.

When a workstation is relocated, the relevant floor panels can be opened and the cable route adjusted.

Useful for Office Renovations

Office renovation projects often involve changes to power outlets, network connections and workstation layouts.

Where the existing building conditions are suitable, a raised floor can reduce the need for extensive floor cutting and allow services to be routed within the raised floor space.

This can be particularly useful when an office needs to remain flexible during future upgrades.

Easier Maintenance

If a cable needs to be inspected, repaired or relocated, the relevant panel can be removed to access the space below.

This provides a practical alternative to opening up large areas of conventional flooring.

Adaptable Office Layouts

Modern workplaces often change over time.

Departments move, workstations are added, meeting rooms are redesigned and new technology is introduced.

An OA raised floor provides a service zone that can accommodate some of these changes without completely rebuilding the finished floor.

OA Raised Floor Specifications: What Should You Check?

Choosing an OA raised floor based only on the panel size is not enough.

The system should be evaluated according to its load capacity, floor height, panel construction, pedestal system, surface finish and overall configuration.

Here are the main parameters to review:

Load Capacity Should Be Checked Carefully

There is no single load rating that applies to every OA raised floor.

Different panel constructions, pedestal systems and installation configurations can produce different results for concentrated load, distributed load, rolling load and overall system stability.

For this reason, a load value found online should not automatically be treated as a universal specification for all OA floors.

For a commercial project, ask the supplier for the relevant technical data, test reports and system performance information, and compare them with the actual loads expected on site.

This is particularly important when the office contains heavy filing cabinets, storage units, equipment cabinets or other concentrated loads.

How High Should an OA Raised Floor Be?

The required raised floor height depends on what needs to be installed underneath it.

A higher floor is not automatically a better floor. The goal is to provide enough service space without unnecessarily reducing the finished ceiling height.

Around 50 mm

A shallow raised floor may be suitable when the main requirement is to accommodate basic power and network cabling.

This approach can be useful in buildings where the available ceiling height is limited.

Around 100 mm

A floor height of approximately 100 mm can provide more flexibility where the office has a larger quantity of power, network or low-voltage cabling.

It can also leave some room for future modifications.

200 mm and Above

A greater void may be considered when the underfloor space needs to accommodate a larger quantity of services or more complex building systems.

However, increasing the floor height also affects the finished ceiling height, pedestal requirements and installation conditions.

For this reason, the raised floor height should ideally be determined during the design stage rather than changed during installation.

How Much Does an OA Raised Floor Cost?

One of the most common questions is:

How much does an OA raised floor cost per square meter?

There is no single price that applies to every project.

The final cost depends on several factors, including:

• Panel construction

• Required load capacity

• Raised floor height

• Surface finish

• Pedestal system

• Stringer or reinforcement requirements

• Project quantity

• Installation requirements

For example, two 600 × 600 mm OA floor systems may have very different prices if one uses a standard office finish while the other requires higher load capacity, a greater floor height or a special surface finish.

Compare the Complete System, Not Just the Panel Price

When requesting quotations, check exactly what is included.

Some suppliers may quote only the floor panels, while others may include:

• Floor panels

• Pedestals

• Stringers

• Surface finish

• Installation

• Transportation or other project-related costs

Therefore, comparing the price per square meter is meaningful only when the scope of supply is the same.

For an actual project, the better approach is to request a quotation based on the floor area, required height, load requirements and finish specification.

OA Raised Floor vs. Anti-Static Raised Floor: What Is the Difference?

OA raised floors and anti-static raised floors are sometimes treated as the same thing, but they address different priorities.

An OA raised floor is primarily designed around office flexibility, cable management and accessibility.

An anti-static raised floor is designed to provide specific electrostatic control performance.

There is also an important distinction between “computer room flooring” and “anti-static flooring.”

Computer room flooring describes an application environment, while anti-static flooring describes a performance requirement.

A data center or computer room may require a raised floor system that combines electrostatic control with high load capacity, stability, cable management and airflow requirements.

Therefore, the correct floor should be selected according to the actual environment rather than simply by the product name.

For projects moving from a conventional office environment into a data center or equipment room, additional factors such as rack loads, ESD requirements and airflow should be evaluated.

How Is an OA Raised Floor Installed?

Proper installation starts with the existing structural floor.

Before installation, the substrate should be checked for basic flatness and stability. Dust, oil, standing water and other conditions that could affect pedestal installation should also be addressed.

The pedestals are then adjusted to the required finished floor level.

For large office areas, panel layout should be planned before installation. Excessive cutting of panels should be avoided where possible, as it can affect installation efficiency and future maintenance.

Cable planning is equally important.

Power, network, communication and other low-voltage services should be considered before the final floor height is established.

If the available underfloor space is found to be insufficient after installation has started, changes can become more expensive and disruptive.

For this reason, an OA raised floor should be coordinated with the office’s electrical, network and low-voltage system design.

OA Raised Floor Maintenance

One of the advantages of a modular raised floor is relatively straightforward access for maintenance.

Routine maintenance mainly involves keeping the finished floor clean, avoiding prolonged exposure to water and reducing damage to the surface finish.

When cables need to be inspected or changed, the relevant floor panels can be lifted.

After maintenance, panels should be correctly repositioned to avoid visible height differences or movement between adjacent panels.

For offices where workstation layouts change frequently, good cable organization beneath the floor can make future maintenance and relocation much easier.

Which Offices Are Suitable for OA Raised Floors?

Not every office requires an OA raised floor.

A small office with a fixed layout, limited cabling and few future changes may be adequately served by a conventional flooring system.

OA flooring becomes more relevant when the office needs greater flexibility.

Open-Plan Offices

Large numbers of workstations often mean more power and data connections, while layouts may change over time.

Corporate Offices and Large Commercial Workspaces

Departments, personnel and office functions may change, creating a need to relocate electrical and network connections.

Office Renovation Projects

For renovation projects, an OA raised floor can provide an alternative to extensive floor cutting while creating space for future cable changes, provided that the existing building conditions are suitable.

Smart and Connected Offices

Offices with extensive network infrastructure, communication systems, smart devices and power requirements can benefit from accessible service space.

Co-Working and Flexible Workspaces

When room functions and workstation arrangements change frequently, an accessible underfloor service zone can provide additional flexibility.

Four Common OA Raised Floor Selection Mistakes

Mistake 1: Choosing the Highest Load Rating Available

Higher load capacity is not automatically necessary for a standard office.

If the actual office loads are relatively low, specifying a much higher-rated system may add unnecessary cost and complexity.

The load rating should be based on actual furniture, equipment and local loading conditions.

Mistake 2: Looking Only at the Panel

An OA raised floor is a complete system.

The panel, pedestal, stringer configuration and surface finish all contribute to the final performance.

Installation quality and site conditions also affect the performance of the completed system.

Mistake 3: Assuming a Higher Floor Is Always Better

A higher raised floor provides more service space, but it also reduces the available finished ceiling height.

The correct height should balance service requirements with the building’s architectural constraints.

Mistake 4: Comparing Price Without Comparing the Scope

A low price per square meter does not necessarily mean a lower total project cost.

Before comparing suppliers, confirm whether the quotation includes panels, pedestals, stringers, finishes, transportation and installation.

The scope should be standardized before comparing prices.

OA Raised Floor FAQ

Can OA raised floor panels be removed?

Yes. OA raised floor systems use modular panels, allowing selected panels to be removed for cable inspection, maintenance and changes.

Is an OA raised floor suitable for office renovation?

It can be suitable where the existing structural floor, available height and project conditions allow it.

It is particularly relevant when power and network routes need to be reorganized without extensive floor cutting.

Do OA raised floors always require stringers?

No.

The need for stringers depends on the specific panel and pedestal system, load requirements, floor height and installation configuration.

How high is an OA raised floor?

There is no single standard height for every system.

Depending on the product and project requirements, raised floor heights can range from shallow systems to several hundred millimeters.

How much load can an OA raised floor support?

Load capacity varies by product and system configuration.

The relevant panel, pedestal and stringer system should be checked using the supplier’s technical data and test reports.

For areas with heavy cabinets or equipment, the expected local load should be assessed before selecting the floor system.

How long does an OA raised floor last?

Service life depends on product quality, materials, installation conditions, operating environment and maintenance.

Rather than relying on a single fixed service-life number, project owners should review the supplier’s technical information, quality documentation and warranty conditions.

How to Choose the Right OA Raised Floor

A practical way to approach OA raised floor selection is to work through five factors:

Application → Load → Floor Height → Surface Finish → System Structure

First, consider whether the office layout and cable routes are likely to change.

Next, determine the expected loads, including any local heavy loads from filing cabinets, storage units or equipment.

Then determine how much underfloor space is actually required for power, network and other services.

After that, select a suitable surface finish based on appearance, durability and maintenance requirements.

Finally, review the complete system configuration, including the panels, pedestals and any required reinforcement.

For commercial projects, it is generally better to select the raised floor as part of an overall solution rather than choosing a panel based on a single specification.

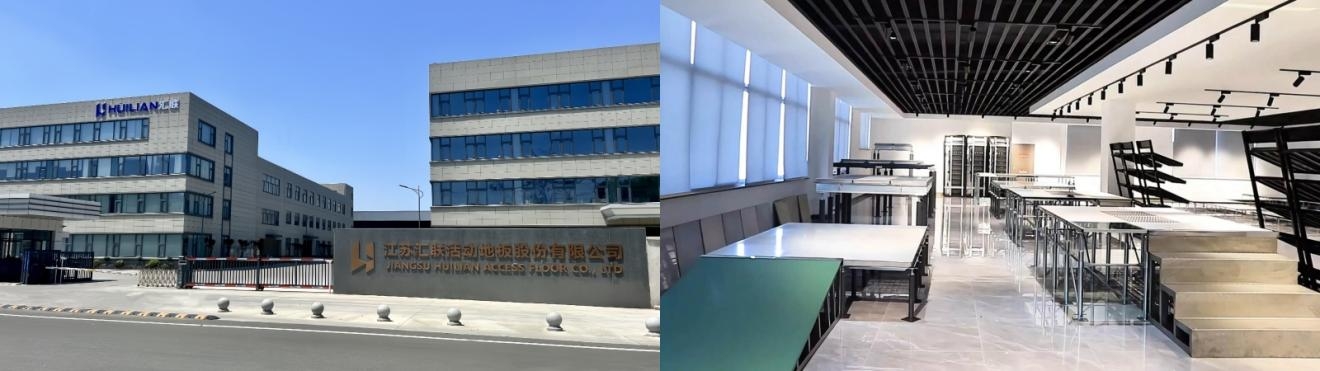

Huilian OA Raised Floor Solutions

Huilian provides OA raised floor systems and related access floor solutions for different office and commercial applications.

For new offices and renovation projects, the system can be configured according to project requirements such as load capacity, raised floor height, cable routing and surface finish.

For standard office areas, the main requirements are often flexible cable management, workstation changes and convenient maintenance.

Where a project has higher local loads or specific performance requirements, the panel structure and system configuration should be reviewed against the project’s technical specifications.

An OA raised floor is more than a finished floor surface. It can become part of the office infrastructure, providing an accessible space for power, network and other building services.

The right system can make future office changes easier while reducing the need to repeatedly modify the finished floor.

If you are planning an office renovation, commercial office fit-out, open-plan workplace or flexible office project, provide the floor area, required raised floor height, expected loads and preferred finish. A suitable OA raised floor configuration can then be developed around the actual project conditions.

Product performance and system configuration should always be confirmed against the applicable project requirements and supplier test documentation.
