How To Choose A Structural Ceiling System: Framing, Installation, And MEP Integration

Introduction

In commercial buildings, industrial facilities, and data centers, a ceiling system does more than create a finished interior surface. It must also coordinate with cable trays, electrical conduits, fire-protection services, and other mechanical and electrical systems. In spaces with dense equipment and complex services, the structural layout, support method, and maintenance access can be just as important as appearance.

Conventional decorative ceilings mainly focus on the finished surface. A structural ceiling system places greater emphasis on modular framing, connection details, support layout, and the integration of building services. A well-planned system can help organize the available space, reduce installation conflicts, and make future maintenance or localized changes easier.

How should a structural ceiling system be selected? What roles do main runners, secondary runners, aluminum connectors, and C-channels play? How should the grid size be determined? This guide introduces Huilian’s structural ceiling system and reviews its components, grid planning, support arrangements, service coordination, and installation considerations for designers, contractors, and project purchasers.

What Is a Structural Ceiling System?

A structural ceiling system is a modular assembly made up of framing members, connectors, and support components. It can be planned and installed to suit the building layout and project requirements.

Unlike a conventional ceiling designed primarily around its finish, a structural ceiling system gives greater attention to overall stability, connections between components, and coordination with other building services. Depending on the project design, different framing profiles, grid sizes, and connection methods can be used to provide installation points for relevant services.

These systems may be considered for commercial buildings, industrial facilities, and other projects where multiple services need to be coordinated. In data centers and other equipment-intensive environments, planning should also account for equipment locations, cable routes, MEP services, maintenance access, and possible future changes.

A structural ceiling system should not be assumed to support every type of equipment directly. Its intended use and permissible applications must be confirmed against the selected product configuration, project design, and actual installation conditions.

Structural Ceilings vs. Conventional Decorative Ceilings

The main difference lies in the design objectives, structural arrangement, and coordination with building services. Conventional decorative ceilings typically prioritize finish quality, surface flatness, and basic installation requirements. Structural ceiling systems place more emphasis on modular grids, connection nodes, support arrangements, and service coordination.

Quick Comparison: Decorative vs. Structural Ceiling Systems

Main Components of a Structural Ceiling System

A structural ceiling system generally consists of main runners, secondary runners, connectors, and support components. These parts work together to form the installation framework.

Main and Secondary Runners: Creating the Modular Grid

Main and secondary runners form the basic ceiling grid and establish the layout for installing related components and coordinating services. A well-planned grid helps standardize installation dimensions and coordinate services running in different directions.

During design, runner layout should be determined by the space dimensions, grid module, ceiling elevation, and intended use. Connection locations and the fit between components should also be considered to reduce on-site adjustments.

Where many services are present or future additions are likely, coordinate the ceiling layout with the MEP plan before finalizing the system.

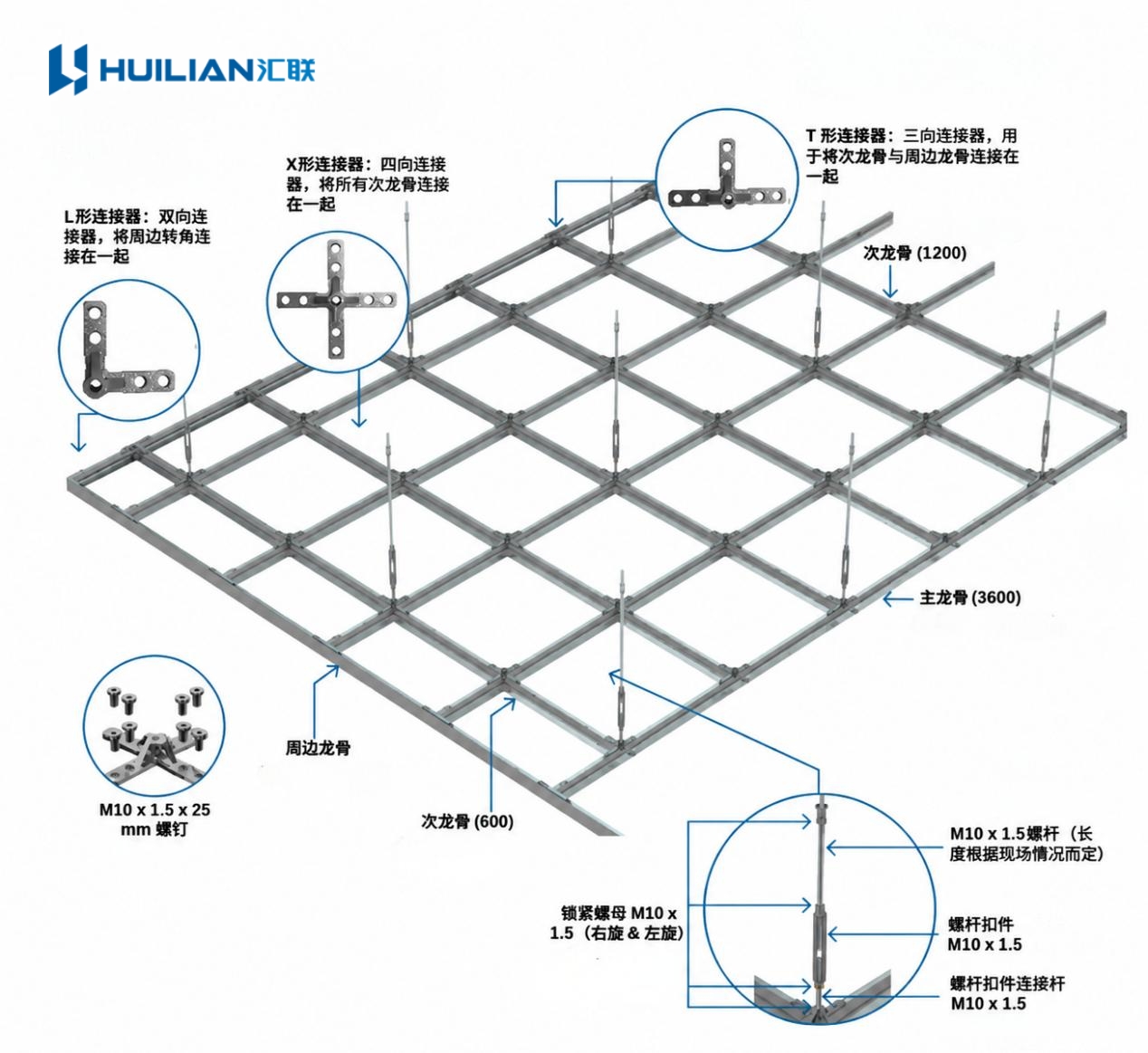

Aluminum Connectors: Joining Framing Members

Connectors are important components of a modular ceiling system. They locate and join framing members that meet in different directions.

Huilian’s structural ceiling product information shows several cast-aluminum connector types, including X-shaped connectors for cross connections and other connectors for boundary locations, corners, and main-runner end connections. Each type is intended for a particular connection arrangement.

When selecting connectors, check their geometry, compatibility with the framing profiles, and intended installation location. A connector should not be assessed in isolation: compatibility with the runners, correct installation, and the overall connection arrangement all affect system performance. For projects with specific structural requirements, confirm that the selected connection details are suitable for the intended application.

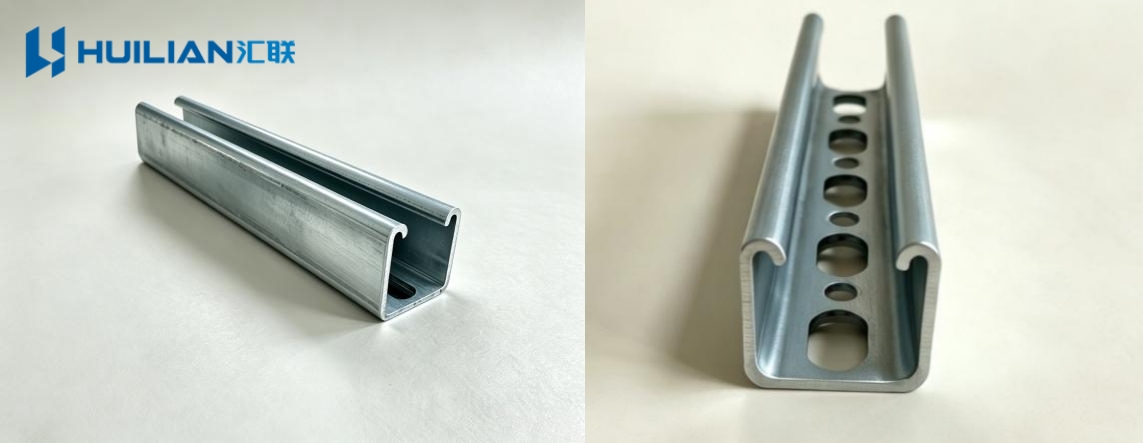

C-Channel: Providing Support and Installation Options

C-channel is a common cold-formed steel component that may be used for ceiling supports, service supports, and other installation frameworks when specified by the project design.

Huilian’s product information lists hot-dip galvanized C-channel in a 41.3 mm × 61.9 mm × 2.7 mm profile. Wall thickness options are listed as 2.0 mm, 2.5 mm, and 3.0 mm. Long slots or cut-to-length processing may be available according to project requirements.

These details can support preliminary product selection, but the appropriate configuration must be confirmed against the installation method, support spacing, load requirements, and site environment. Section dimensions alone do not establish the load capacity of an installed system.

Where C-channel is used with other support components, confirm connection positions and installation clearances in advance so that the components can work together as intended.

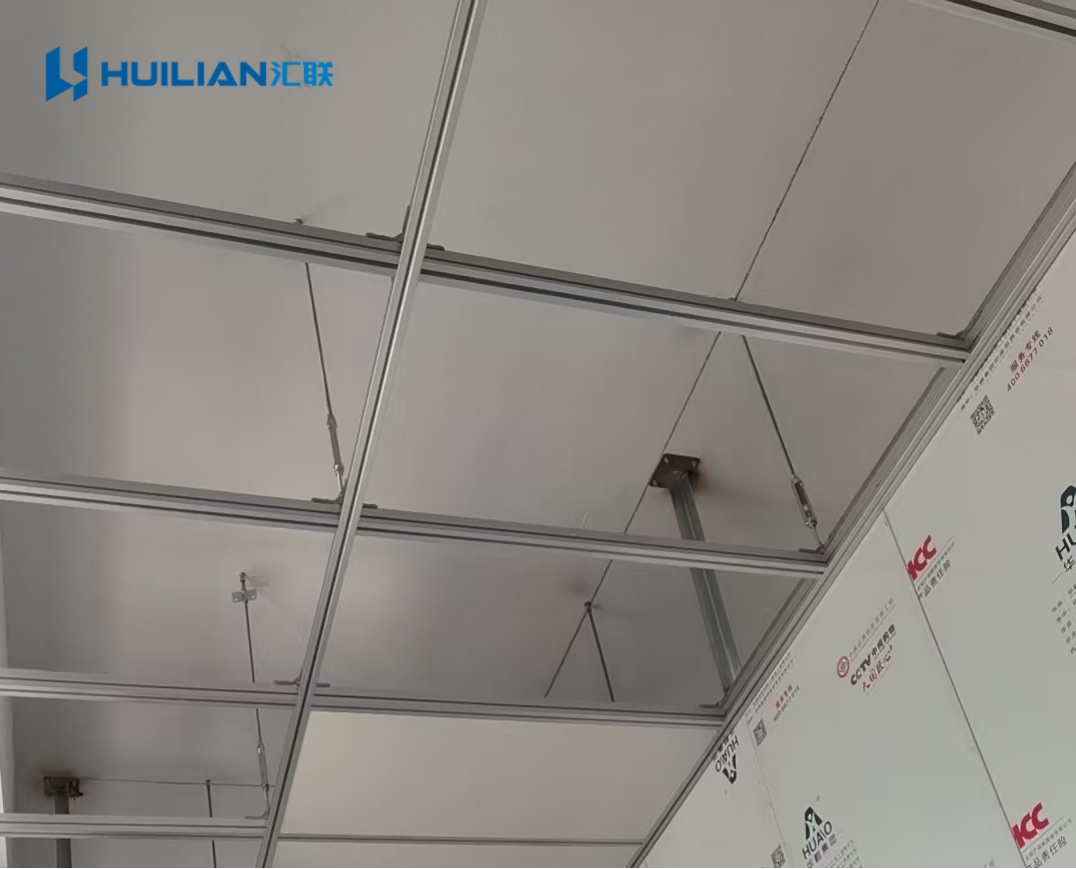

Angle Supports and Seismic Bracing

For projects with specific stability requirements, the arrangement of support components is an important part of ceiling design. Angle supports and similar components may be used to improve stability where specified by the design.

Where seismic design requirements apply, the bracing arrangement must be determined with reference to the building conditions and the ceiling system. Seismic bracing is not simply a matter of adding diagonal members. Brace locations, connection nodes, force directions, and connections to the building structure must be designed and checked for the project.

Projects with seismic requirements should define the bracing solution at the design stage and install and inspect it in accordance with the approved design documents.

How to Choose the Ceiling Grid Size

Grid size affects runner layout, the number and location of connection nodes, service positions, and the ease of future adjustments. Huilian’s structural ceiling product information lists several grid arrangements for standard and light-section configurations.

Grid sizes listed in the product information

• Standard-section grid: 1200 × 1200 mm

• Standard-section grid: 1200 × 600 mm

• Standard-section grid: 600 × 600 mm

• Light-section grid: 1200 × 1200 mm

• Light-section grid: 600 × 600 mm

These are the grid sizes listed in the product information. Their suitability should be confirmed against the selected system configuration and project design.

Factors to Consider When Selecting a Grid

Building dimensions: Coordinate the grid with room dimensions, ceiling elevation, and the overall layout to reduce unnecessary cutting and on-site changes.

Service layout: Coordinate cable trays, conduits, and other services with the grid and support locations to minimize installation conflicts.

Maintenance access: Reserve access routes and working space where services may need inspection, repair, or future expansion.

Structural requirements: Grid size alone does not determine system performance. Runner profiles, connection methods, support spacing, and site conditions must be considered together.

For complex projects, coordinate the ceiling grid with the MEP layout before confirming the final installation plan.

How to Assess Support and Load Requirements

The performance of a structural ceiling system depends on the framing profiles, connection nodes, support arrangement, and connections to the building structure. A system should not be assessed solely by the dimensions or material of an individual component. Where services need to be supported, selection should reflect the intended use and actual installation conditions.

Assess the Complete Assembly, Not Just Individual Components

Main runners, secondary runners, connectors, and support components form a complete assembly. Even if an individual component meets its own requirements, unsuitable connections, poor support placement, or inadequate building connections may affect overall stability.

During selection, check whether the runners, connectors, and support components are compatible; whether the grid and support positions follow the project design; whether the weight and location of supported services have been identified; whether the connection to the building structure is appropriate; and whether special loads or operating conditions require a specific structural check.

These factors must be assessed for the actual project. A single isolated parameter should not be used as a substitute for evaluating the complete assembly.

Select Supports According to the Intended Use

Projects differ in what they require from a ceiling system. Some mainly need an organized framework for service layout, while others require dedicated supports for particular components.

At the design stage, identify which services can be installed in accordance with the system design, which require independent supports, and how their loads will be transferred to the building structure. For data centers, industrial facilities, and other equipment-intensive spaces, prepare a service and equipment list and coordinate it with the architectural, structural, and MEP teams.

Confirm Support Spacing and Connection Details

The performance of the same profile or connector can vary with the installation method, support spacing, and connection conditions. Support spacing should therefore follow the selected system configuration and project design rather than being copied from another installation without verification.

If the grid, support positions, or connection methods need to change during construction, confirm that the revised arrangement still meets the design requirements. For projects with defined load requirements, refer to the applicable product technical information, project design documents, and relevant test evidence.

Integrating Building Services with the Ceiling System

Ceiling zones in modern buildings often need to accommodate cable trays, electrical conduits, fire-protection services, busbars, and other MEP installations. Without early coordination, installation may encounter crossing services, insufficient clearance, conflicts with support locations, or difficult maintenance access.

A modular structural ceiling can provide a clearer framework for coordinating these services. According to the applications shown in Huilian’s product information, the system can be used with appropriate accessories to accommodate cable trays, cables, electrical conduits, fire-protection services, signs, and other installations.

Service integration does not mean that every service can be attached directly to the ceiling grid. Before construction, define service routes, installation heights, and maintenance requirements. Confirm that any component expected to carry additional loads is suitable for that use, and reserve access space for items that need inspection or replacement.

Fire-protection, electrical, and other regulated systems must also follow their applicable professional design and installation requirements. Early coordination can reduce site conflicts, make better use of the available space, and simplify future maintenance.

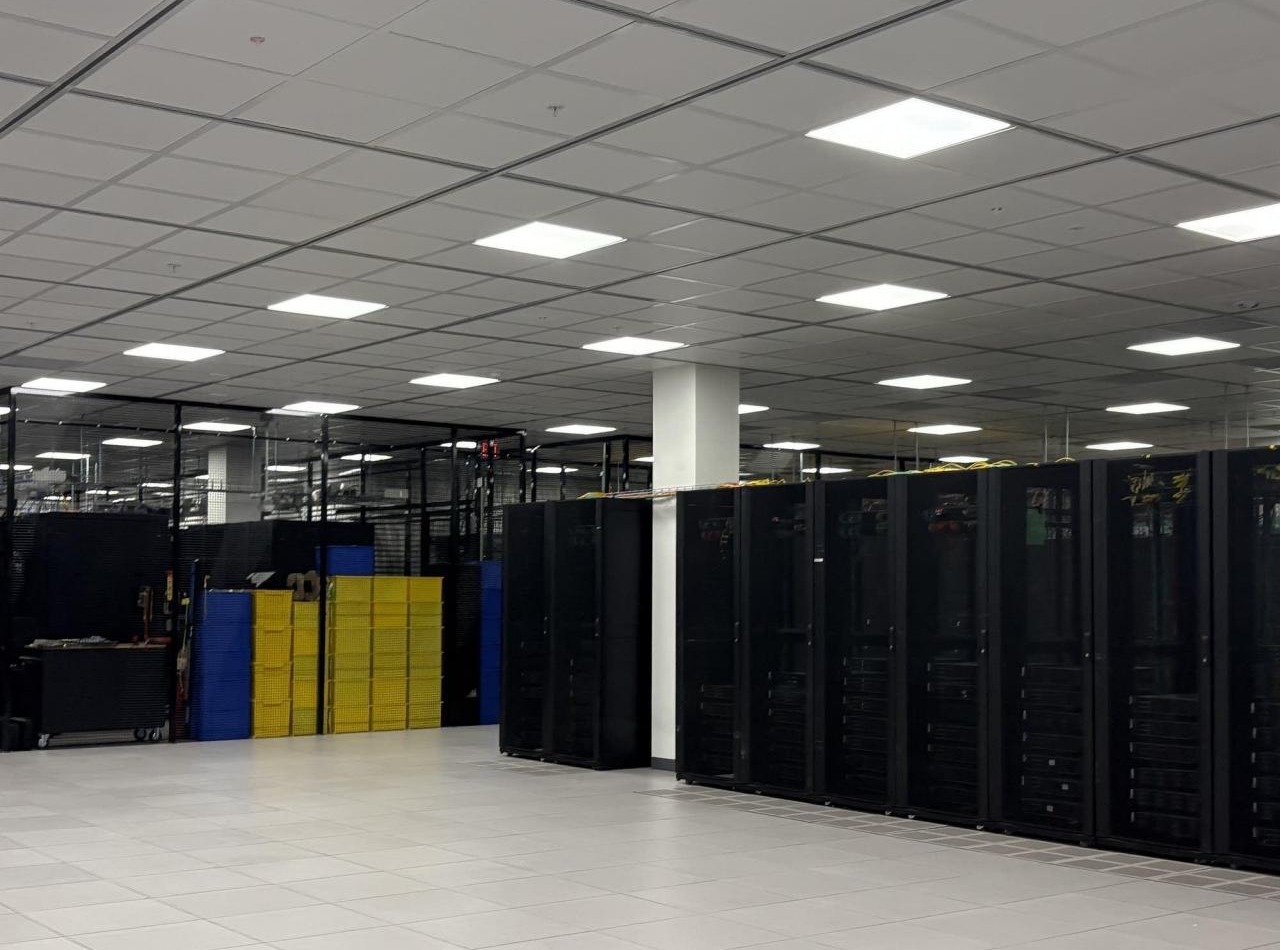

Why Structural Ceiling Planning Matters in Data Centers

Data centers have dense equipment layouts, complex MEP systems, and demanding operational requirements. As infrastructure evolves, coordination between the different systems within the facility becomes increasingly important.

Service Layout and Space Utilization

Planning the ceiling grid and support locations can help coordinate cable trays, conduits, and related services, reducing the likelihood of clashes between systems.

Structural Stability and Support Conditions

For services that need to be fixed or supported, choose suitable components and connection methods based on their weight, location, and use. Specific load requirements may call for additional design checks.

Future Changes and Maintenance

A modular arrangement may make some adjustments easier, but whether components can be removed, relocated, or extended depends on the connection method and site conditions. Potential future changes should be considered during design.

Coordination with MEP Systems

Data-center operation involves power, cooling, airflow management, and equipment maintenance. The ceiling system should be coordinated with the relevant architectural and MEP designs. The ceiling structure alone should not be used to draw conclusions about overall operating efficiency or energy performance.

For this reason, a structural ceiling in a data center should be considered as part of the wider infrastructure plan rather than selected as an isolated decorative product.

Installation Considerations

Appropriate product selection must be supported by careful installation planning. Checking site conditions before work begins, controlling connection details during installation, and inspecting the completed work can help reduce later adjustments.

Check Building Conditions Before Installation

Confirm the space dimensions, ceiling elevation, building connection conditions, and site obstructions. Check whether the proposed support positions conflict with other MEP services.

For renovation projects, verify the condition of the existing structure before adding loads to existing building elements.

Install Runners and Connectors to the Approved Layout

Position and install main runners, secondary runners, and connectors according to the design, keeping grid dimensions, connection locations, and component orientation consistent with the approved layout.

If support spacing, connection methods, or component specifications need to change on site, confirm that the revised arrangement meets the design requirements before proceeding.

Check Connections to the Building Structure

Overall stability depends not only on the internal components but also on how the system connects to the building structure. Inspect connection locations, fasteners, and installation quality in accordance with the design. For projects with seismic requirements, verify that the specified bracing and connection nodes have been installed as designed.

Coordinate MEP Services in Advance

Coordinate fire-protection, electrical, HVAC, and other MEP services before installation wherever possible. Define service routes, elevations, and maintenance clearances in advance. Resolving clashes only after the ceiling is installed can increase rework and affect the project schedule.

Inspect the Installation and Keep Records

During construction and handover, check component specifications, connection installation, support arrangements, and technical documents against the contract, design documents, and applicable standards.

For projects with specific load or seismic requirements, verification should be based on the relevant design documents, product technical information, and applicable test evidence—not visual appearance alone.

How to Choose a Structural Ceiling Supplier

When selecting a supplier, consider more than the product price. System compatibility, technical documentation, and project support are also important.

Confirm That the System Components Are Compatible

Check whether the supplier can provide compatible runners, connectors, support profiles, and necessary accessories. Mismatched components can complicate installation and affect the intended assembly.

Check Product Specifications and Application Limits

Different projects have different requirements for grids, profiles, and connection nodes. Before purchasing, confirm the selected product specifications, installation methods, and application conditions.

For projects with defined load requirements, also verify the technical basis for the selected product and installation arrangement.

Review Customization and System Coordination

For unusual spaces or complex service layouts, check whether the supplier can provide suitable profile dimensions, lengths, slot arrangements, and connector configurations in line with the design.

Consider Technical Support and Delivery

Engineering projects involve design, procurement, installation, and handover. The supplier’s ability to provide technical documents, respond to coordination questions, and deliver according to the project schedule can affect implementation.

Evaluate product suitability, documentation, and project support alongside price rather than comparing cost per square meter alone.

Huilian Structural Ceiling System

Huilian’s structural ceiling system uses a modular grid and offers different connector types, support profiles, and related components that can be configured according to project requirements.

The product information lists multiple grid sizes and shows cast-aluminum connectors and C-channel support components. The specified C-channel uses a hot-dip galvanized finish, with profile options selected according to the product range and project needs.

For commercial buildings, industrial facilities, data centers, and other projects with complex service layouts, determine the system configuration during the planning stage by considering the building space, service layout, support requirements, and future maintenance.

When discussing a project, it is helpful to prepare the floor plan, ceiling elevation, equipment and service list, anticipated loads, and relevant design requirements. This information can help clarify suitable grid sizes, connection details, and support arrangements.

The appropriate applications of the Huilian structural ceiling system should be confirmed against the actual product configuration and project design requirements.

Conclusion

Choosing a structural ceiling system involves more than selecting a runner size or finish. The overall structure, connection nodes, support arrangement, service integration, and maintenance access should all be considered.

In data centers, industrial facilities, and other spaces with dense services, a well-planned grid and installation layout can improve coordination between systems, reduce site conflicts, and make project delivery more manageable.

Start by defining the intended use, service layout, and installation conditions. Then select a suitable configuration based on the product technical information and project design. Where specific load or seismic requirements apply, verify the system against the relevant design criteria.

Careful planning and system selection help ensure that the structural ceiling is suited to the practical needs of the project.
