How To Choose Raised Access Flooring for Office Renovation: A Complete Guide To Specifications, Materials & Common‑Site Pitfalls

Introduction

During office renovation projects, stakeholders tend to prioritize walls, ceilings, partitions, lighting and furniture, while flooring systems are often considered only at the construction phase.

For modern workplaces, the floor is far more than a surface to place desks and chairs. Power outlets, network cabling, low‑voltage controls and smart office devices keep expanding. Workspace layouts also evolve frequently: an open‑plan zone may later become meeting rooms, and department reorganisations require relocating power and data points.

If all cables are buried inside concrete slabs, every layout change will trigger chipping, rewiring, patching and reinstallation — generating extra cost and downtime.

Raised access flooring offers a practical alternative. It creates a service void between the structural concrete slab and finished walking surface. Cables can run underneath, and technicians lift individual panels for modifications or inspection.

When specifying for office fit‑outs, the question is not “which floor is best overall”, but “which complete flooring system matches your project requirements”.

This guide covers site assessment, material options, plenum‑height planning, zone‑based specification, installation best practices and long‑term maintenance for office renovation projects.

Why Raised Access Flooring Is Widely Adopted in Office Refurbishment

Traditional cabling solutions such as concrete trenching, wall conduits and embedded wiring work well for first‑time fit‑outs. Difficulties emerge in later‑stage adjustments.

When businesses hire more staff, reorganise departments or convert meeting spaces into workstations, power and data connections must be re‑routed. Rewiring embedded cables is disruptive and expensive.

A raised access floor uses adjustable pedestals to elevate modular panels above the slab, creating an under‑floor plenum for power, LAN and low‑voltage circuits. Individual panels can be lifted for inspection or reconfiguration.

This flexibility delivers high value for internet firms, design studios, financial offices, consultancies and co‑working spaces with frequent layout changes.

Important note: Access flooring is not exclusive to server rooms. General commercial offices can also leverage under‑floor service voids for cable management and future‑proof space planning.

Access Flooring, OA Network Floor & Anti‑Static Floor: What Is The Difference?

Many specifiers mix up raised access flooring, OA network flooring, free‑access floor and ESD / anti‑static flooring. These terms are not interchangeable:

• Raised access flooring: Umbrella term for any modular floor elevated on pedestals to create under‑floor service space. It applies across all commercial building scenarios.

• OA Network Flooring: An office‑optimised subset of access flooring. It focuses on low‑profile installation, flexible outlet placement and ease of future reconfiguration for general workspaces.

• Anti‑static raised flooring: An access‑floor variant with static‑dissipative properties, mainly deployed in server rooms, equipment closets and electronic‑device zones.

Do not treat OA flooring and general access flooring as two mutually‑exclusive options.

Work through these practical questions first:

• How large of an under‑floor plenum do we require?

• What volume and types of cables need routing?

• What are requirements for load‑bearing, anti‑static performance, surface finish and maintainability?

Once these are defined, you can select appropriate panels and supporting hardware.

Five Critical Site Conditions to Evaluate Before Specification

Avoid asking suppliers “how much per m²” before you document site conditions. Correct workflow: assess site constraints → define system requirements → request formal quotations.

Load‑bearing Requirements: Differentiate General Workstations vs Heavy‑Equipment Zones

General open‑plan offices carry human traffic, desks and standard office appliances. Archives, print rooms and equipment closets introduce concentrated point loads from heavy filing cabinets, large printers and server racks.

Do not rely purely on marketing claims of “high load capacity”. Evaluate uniform load, concentrated point load and rolling load for each functional zone.

For locations with significant concentrated loads, confirm cabinet / equipment weights and support footprint before selecting panels and pedestal hardware.

Rolling load performance also matters for zones with frequent trolley traffic. Cyclic wheeled traffic imposes different long‑term stress compared with occasional static weight. Always request third‑party test reports and technical datasheets from vendors instead of verbal guarantees.

Ceiling‑to‑Slab Clearance: Key Constraint for Older Office Buildings

Many retrofitted older offices suffer limited headroom. Suspended ceilings, HVAC ducts, fire‑protection piping and lighting fixtures consume vertical space and leave minimal allowance for raised‑floor build‑up.

Do not calculate purely from architectural drawing nominal ceiling heights. Measure three real‑world elevations on‑site:

1. Structural slab finished elevation

2. Raised floor finished walking elevation

3. Suspended ceiling finished elevation

Where vertical space is tight, low‑profile access‑floor systems reduce overall build‑up height.

Cable Quantities: Define Cabling Scope First, Then Decide Plenum Height

Reverse the typical workflow: do not fix floor height and then squeeze cables into the available void.

List all cable categories:

• Power circuits

• LAN / data network

• Telecommunication lines

• AV & conference‑system wiring

• Smart‑building control circuits (lighting, access‑control, surveillance)

• Other low‑voltage wiring

Size the plenum based on present cable counts plus foreseeable expansion. For legacy‑building retrofits, overly‑shallow plenums quickly become congested once new devices are added.

Zoned Specification: No Need for Uniform Flooring Across Entire Office

Different zones carry distinct usage profiles:

• Open workstations: priority on cabling flexibility and regular reconfiguration

• Boardrooms & reception areas: visual finish, foot‑feel and noise performance

• File / archive rooms: resistance to heavy concentrated loads

• IT / equipment closets: point‑load capacity plus anti‑static needs

• Corridors & public circulation: wear resistance and rolling‑load performance

A “one‑size‑fits‑all” specification wastes budget. Apply tiered requirements zone‑by‑zone.

Expected Service Life: Short‑term Lease vs Long‑term Corporate Occupancy

Short‑term leased offices focus primarily on upfront capital expenditure.

For corporate headquarters, owner‑occupied premises or long‑term tenancies (10+ years), prioritise serviceability and adaptability. One major benefit of access flooring is its maintainability: technicians lift individual panels for cable re‑routing, and damaged tiles can be replaced locally without full demolition. Its value extends well beyond initial installation.

Main Panel Materials: All‑Steel, Calcium Sulphate and Wood‑Core Raised Flooring

There is no universally “best” material. Select according to project priorities.

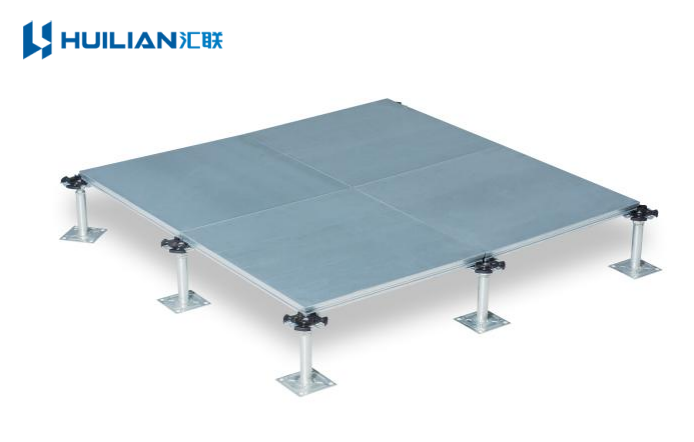

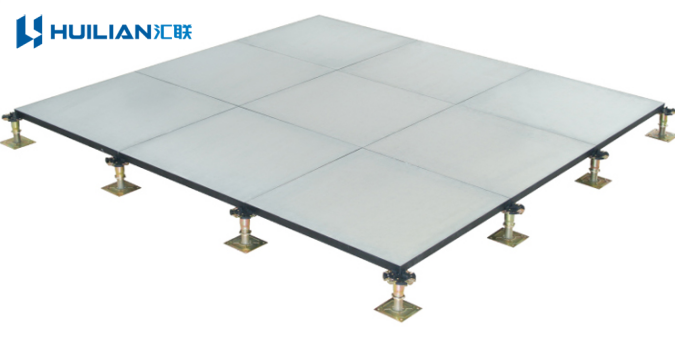

All‑Steel Raised Floor / OA Steel Network Floor (Preferred for Office Refurbishment)

Steel‑based access floors feature mature construction, complete accessory ecosystems (pedestals, stringers, edge trims), and balanced performance across load‑bearing, stability and lifecycle cost.

They perform excellently for offices expecting frequent workspace adjustments. The modular tile‑based design enables partial panel removal for cabling inspection and spot replacement if damage occurs.

Buying tip: All‑steel floors are not equal. Steel‑sheet thickness, infill composition, panel edge construction and pedestal quality determine real‑world performance. Always review datasheets and independent test reports rather than comparing unit prices alone.

Calcium‑Sulphate Raised Floor (For Premium Comfort‑focused Workspaces)

Calcium‑sulphate panels deliver superior flatness and acoustic damping. They are widely specified for corporate headquarters and high‑end boardroom environments where foot‑feel and quiet operation are priorities.

Limitation: Calcium‑sulphate substrates are moisture‑sensitive. Proper sub‑slab moisture mitigation must be implemented if the building suffers dampness or water‑ingress risk. These panels also carry higher dead weight; verify existing slab load capacity in older buildings.

Wood‑Core Composite Raised Floor (Cost‑sensitive temporary projects only)

Wood‑core panels are lightweight with competitive upfront material cost and appear in budget‑constrained or temporary fit‑outs.

For long‑term occupied offices, carefully evaluate fire‑rating, moisture resistance and long‑term dimensional stability. Do not base decisions purely on initial purchase price if the space will operate for many years.

Possible Surface Finishes Over Raised Access Floor Panels

The access‑floor substrate delivers structural performance; top finishes govern aesthetics, wear, foot‑feel and cleaning behaviour. Surface finish does NOT change the underlying panel load‑bearing capacity.

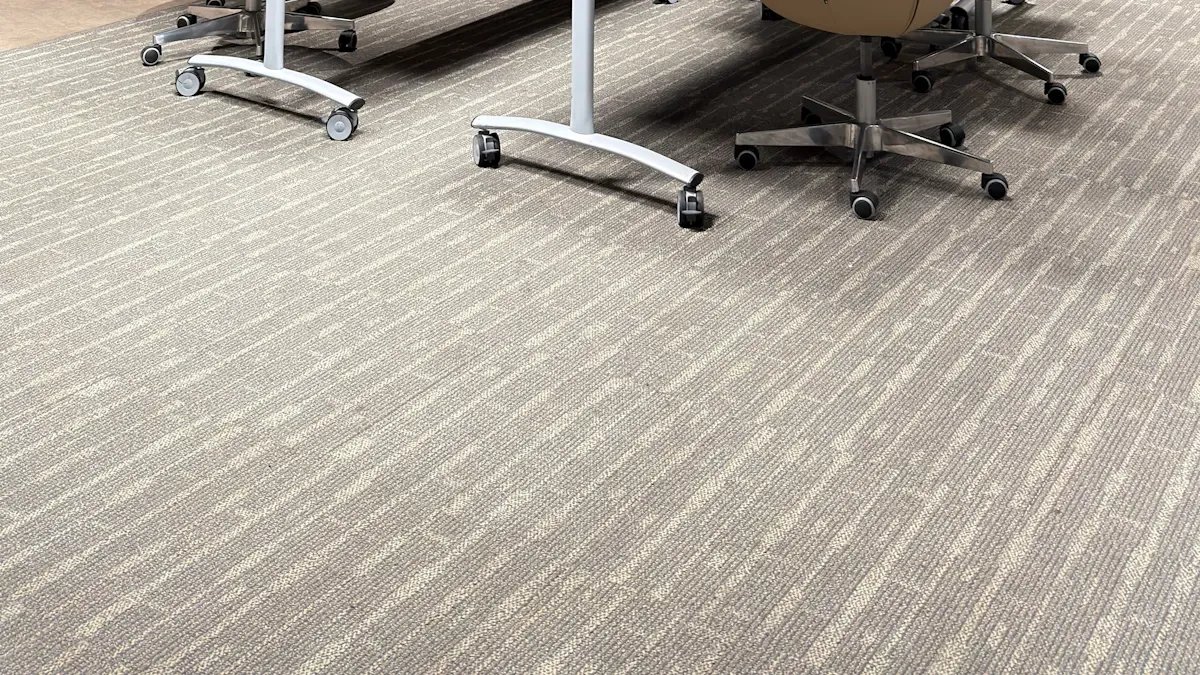

Carpet tiles:

Very common for open‑plan offices. Offers improved acoustics and comfortable walking feel; individual tiles can be swapped out locally.

Ceramic / hard stone finishes:

Deployed for high‑wear reception or circulation zones. Requires full system‑level verification of load‑rating before selection.

Critical reminder: Load‑bearing performance originates from substrate panel, core infill and pedestal‑stringer assembly, not from the decorative top layer.

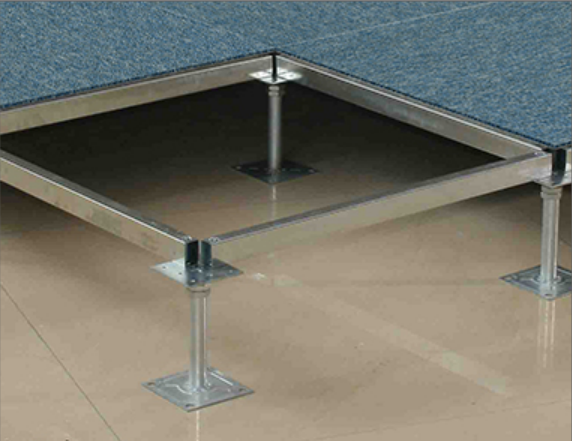

Do Not Ignore Pedestal & Stringer Supporting System

Raised access flooring is a complete assembled system. Floor panels represent only one component. Pedestal height‑adjustment range, stringer bracing and installation workmanship directly control overall stability.

• Standard‑height adjustable pedestals for regular‑duty office zones

• Add stringer cross‑bracing for archives and IT closets under heavy concentrated loads

• Large slab‑elevation variance in older buildings requires pedestals with ample adjustment travel for levelling

When collecting quotations, evaluate the full system scope: panels + pedestals + stringers + edge trims + site installation labour. Some vendors quote low panel unit pricing but offset costs via hardware and installation, leading to higher total project expenditure.

 Pre‑Construction Checklist for Office Access‑Floor Projects

Many access‑floor defects stem from incomplete pre‑site assessment, not product defects. Go through these items before installation commences:

• Has existing concrete‑slab flatness been surveyed? Define levelling strategy for significant slab deviation.

• Calculate true finished build‑up height: structural slab + pedestal + panel + top finishing layer. Do not rely only on nominal pedestal height.

• Finalise major cable‑route layout to avoid insufficient plenum volume post‑installation.

• Lock in physical locations for heavy cabinets, racks and printers so local reinforcement can be implemented.

• Identify high‑frequency‑access zones (network closets, power hubs) to ensure easy panel‑lifting for future maintenance.

These seemingly minor pre‑work items heavily influence real‑world usability after project hand‑over.

Major Pitfalls of Low‑Profile Access‑Floor Systems

Low‑profile access‑floor systems excel at preserving interior headroom for retrofits, yet carry one inherent constraint: limited under‑floor cable void.

They work well for projects carrying modest power‑and‑data requirements. Avoid specifying ultra‑shallow build‑up when large cable runs plus future smart‑system expansion are anticipated.

Best practice: tally present and future cable requirements first, then balance plenum depth versus finished headroom. Do not sacrifice multi‑year serviceability merely to save tens of millimetres of vertical height during renovation.

Fire Safety, Moisture Protection & Compliance Requirements for Commercial Offices

Access‑floor projects must satisfy local building‑code requirements for fire performance, indoor environmental quality and accessible circulation.

• Fire safety: Verify fire‑reaction classification for panels and associated materials. Fire protection is not limited to floor panels alone; cable routes inside the plenum need appropriate compartmentation and fire‑stopping.

• Moisture mitigation: Treat sub‑slab dampness or water‑ingress risk before floor installation. Moisture‑sensitive substrates like calcium‑sulphate require extra caution.

• Accessible circulation: Keep floor joints, transitions and entrance thresholds flat and trip‑free for corridors and public doorways.

• Indoor air quality: Specify low‑VOC materials complying with local indoor‑emission standards.

• Special‑function zones: IT / server closets require dedicated ESD specification and earthing design.

Most Common Specification Mistakes for Office Raised‑Floor Projects

❌ Mistake 1: Specify based on one single “load‑rating number”, ignoring uniform load, point‑load and rolling‑load real‑world scenarios
✅ Fix: Zone‑wise specification supported by official test‑report documentation

❌ Mistake 2: Chase the thinnest‑possible build‑up without analysing present and future cabling needs
✅ Fix: Balance headroom constraints against cable‑capacity and expansion requirements

❌ Mistake 3: Apply identical flooring specification for every area in the building
✅ Fix: Tier requirements per functional zone to optimise total‑project budget

❌ Mistake 4: Compare only panel unit price and overlook pedestals, stringers, trims and installation labour
✅ Fix: Request complete system‑scope quotations

❌ Mistake 5: Evaluate purely initial procurement cost without considering future reconfiguration and repair expense
✅ Fix: Apply lifecycle‑cost thinking for long‑lived office fit‑outs

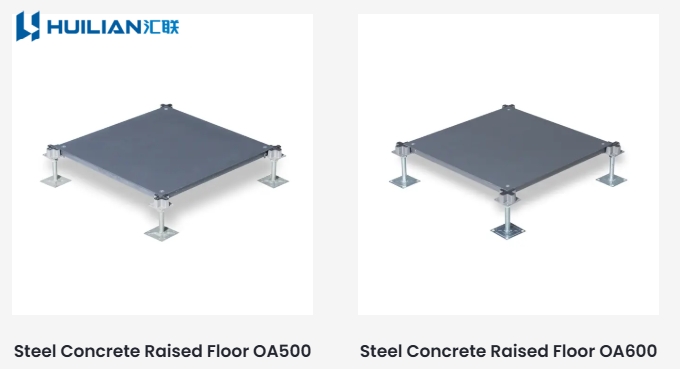

HUILIAN Custom‑Engineered Raised‑Floor Solutions for Office Renovation

The core challenge of office renovation is translating complex site constraints into a well‑balanced complete flooring solution, rather than picking one standalone panel model.

HUILIAN supplies complete raised‑access‑floor systems tailored to project‑specific conditions:

• For legacy low‑headroom building retrofits: low‑profile all‑steel systems balancing preserved headroom, cable‑management capacity and fast site installation

• For general open‑plan offices: all‑steel / OA network‑floor options balancing load‑rating, cost and future workspace adaptability

• For archive and heavy‑equipment zones: reinforced panels paired with heavy‑duty pedestals and cross‑bracing stringers

• For IT / equipment closets: full ESD‑compliant system packages including proper earthing provisions

Every proposal defines panels, pedestals, stringers, finishes and installation requirements together, instead of supplying generic product SKUs. This holistic approach differentiates access‑floor projects from standard finished‑floor material procurement.

Conclusion: Good Raised‑Floor Systems Build Room for Future Change

Office fit‑out completion is not the end‑of‑life for your flooring system. Businesses recruit new staff, reorganise departments, convert rooms and continuously upgrade digital hardware.

When selecting raised access flooring, ask not only “what fits today’s interior design”, but also:

How will this system perform for reconfiguration, maintenance and equipment upgrades over coming years?

Before finalising specifications for your renovation, document six key inputs: slab‑to‑ceiling clearances, zone‑by‑zone load requirements, total cable volume, functional zoning, site‑moisture conditions and intended service lifespan. Only then finalise substrate material and plenum build‑up height.

A well‑specified raised‑access‑floor solution delivers neat finished surfaces and substantially lowers demolition‑and‑rewiring cost during future workspace adjustments. That is the real‑world value of access flooring within modern commercial‑office refurbishment.
