High-Density Woodcore Raised Floor: Pros, Cons & Purchasing Avoidance Guide

Introduction

When renovating office buildings, school computer labs or retail stores, many procurement managers struggle to choose the right raised floor material. Calcium sulphate panels are excessively heavy and add extra load to floor slabs, all-steel floors come with higher upfront costs, while aluminum flooring is premium-priced. Woodcore raised floors have become a cost-effective alternative for mid-budget construction projects.

What Is Woodcore Raised Floor? Complete System Composition

Standard dimension: 600×600mm, with adjustable pedestals lifting the floor by 50–300mm. The underfloor plenum accommodates data cables, power lines and underfloor air cooling for small server rooms.

Full system components:

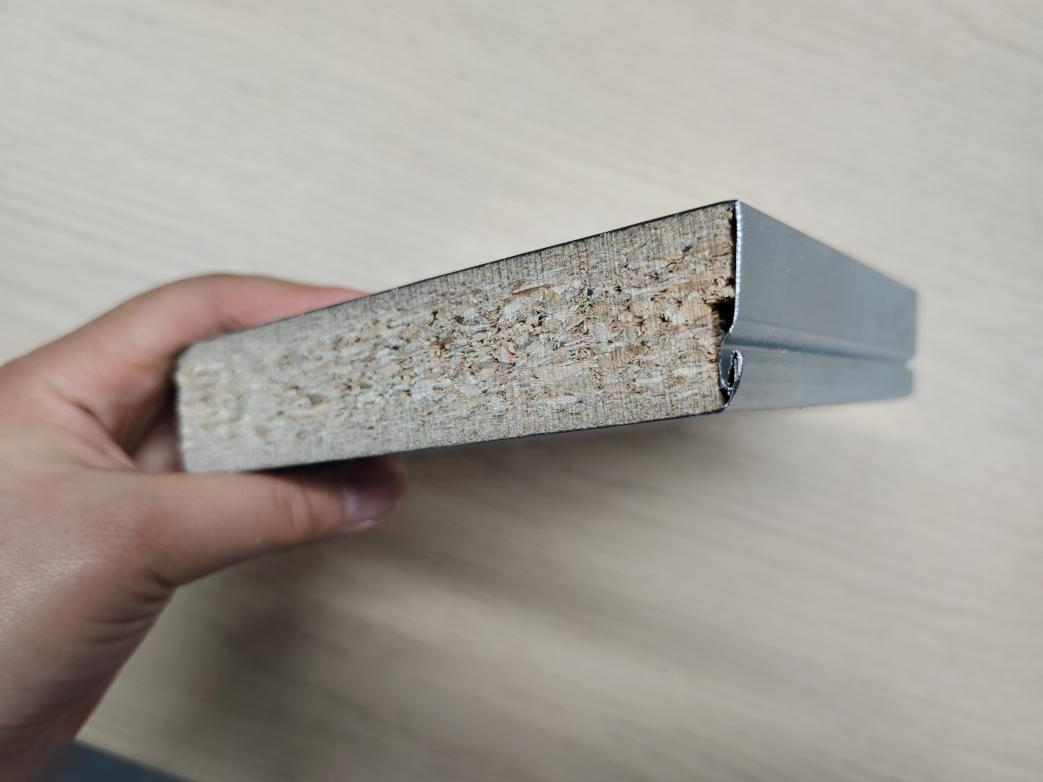

• Core Board: High-density particle woodboard as the central substrate

• Steel Encapsulation: Galvanized steel sheets wrapped on top & bottom to isolate moisture from wood core

• Surface Coverings (Optional): Antistatic HPL, conductive PVC, carpet tiles

• Matching Accessories: PE moisture barrier, waterproof edge sealant, conductive gaskets, grounding copper strips (for ESD rooms)

Applicable Environment Requirement: Indoor relative humidity maintained at 35%–65%, no persistent water leakage or frequent large-area water cleaning. Not recommended for basements or ground floors without proper ventilation & waterproofing.

Core Advantages of Woodcore Raised Access Floor

Lightweight, Ideal for Old Office Renovations

Single panel weight: 12–15kg, only half the weight of calcium sulphate panels. Single worker can carry and install one board alone, cutting transportation loss and construction time. No extra structural reinforcement required for aged buildings with limited slab load capacity.

Lower Overall Material Cost

With identical surface finish and pedestal height, woodcore panels cost 10%–22% less than calcium sulphate and cement-filled all-steel floors. It delivers significant budget savings for large-scale office retrofits over 10,000 sqm.

Noise Reduction & Comfortable Walking Experience

Dense wood fiber absorbs vibration noise. No harsh metallic clanging when rolling carts or dropping tools, perfectly suitable for law firms, libraries, art galleries and open-plan offices requiring quiet surroundings.

Easy On-Site Custom Cutting

Only ordinary carbide circular saws are needed, no professional diamond cutting tools required. Easy to cut around columns and pipeline ducts with minimal dust output, ideal for irregularly shaped office spaces with numerous structural pillars.

Eco-Friendly, Eligible for Green Building Credits

Core material made from recycled wood shavings & wood chips. Zero-formaldehyde upgraded version meets E0 emission standard (≤0.024mg/m³ formaldehyde), satisfying indoor environmental inspection for schools and cultural venues, and supporting LEED green building certification points.

Low Cost for Future Layout Adjustments

Single panels can be lifted separately with suction cups. No massive concrete breaking when rearranging workstations or adding network outlets. Only individual damaged tiles need replacement instead of full floor overhaul.

Limitations of Woodcore Floor & Practical Engineering Solutions

Limited Moisture Resistance

The moisture performance of woodcore raised floor depends on panel steel wrapping, edge sealing and installation environment.
Although top & bottom steel sheets offer basic protection, exposed cut edges absorb moisture if unsealed. Long-term dampness or standing water will cause irreversible swelling, warping and delamination.

Practical construction solutions:

• Lay full PE moisture barrier with taped seams before floor installation

• Apply waterproof sealant to all field-cut wood edges immediately

• Choose moisture-modified woodcore substrates for coastal high-humidity areas

• Switch to calcium sulphate/all-steel floors if the site has persistent water risks

 Flame Retardant ≠ Non-Combustible

Flame-retardant particle woodboard still belongs to combustible substrate. It releases flammable fumes under sustained high temperature.
Not suitable for large IDC data centers with strict smoke & fire control regulations. Small computer labs can use flame-retardant woodcore paired with fireproof HPL surface to meet local fire inspection standards.

Edge Warping Under Severe Humidity & Temperature Fluctuations

Repeated expansion & contraction caused by drastic indoor temperature/humidity swings leads to curled edges after 5–8 years, creating jolts when rolling carts.
Solution: Install indoor dehumidifiers; reserve 2mm expansion gaps between panels during laying.

Permanent Dents Under Long-Term Heavy Point Load

Panels develop irreversible indentations if equipment over 1000kg stays in one spot for years.
Solution: Place load-bearing base plates under heavy server racks to disperse concentrated pressure.

Limited Recyclability

Only outer galvanized steel sheets can be recycled after service life; wood core is non-reusable. All-steel floors are a better choice for projects requiring repeated long-term renovation.

ESD Antistatic Woodcore Floor Configuration for IT Rooms

Many project buyers do not realize woodcore panels support static dissipation for computer classrooms & small monitoring rooms:

Surface:

Antistatic HPL laminate, surface resistance controlled at 10⁶~10⁹Ω, fully compliant with IEC 61340-5-1 standard to prevent circuit chip breakdown by static discharge

Complete grounding system:

Conductive rubber gaskets + continuous copper grounding strips to form a full conductive loop across the whole room
⚠ Not recommended for large IDC data centers or semiconductor cleanrooms.

Comparison Chart of 4 Main Raised Floor Types

Suitable Projects for Woodcore Raised Floor

• Open-plan offices, law firms & design studios of SMEs

• Libraries, art galleries & cultural exhibition halls requiring quiet walking conditions

• Primary/secondary school computer labs & small enterprise monitoring control rooms

• Chain retail stores with frequent power outlet relocation & tight renovation budget

• Aged office buildings with limited slab load and dry indoor environment

Scenarios Where Woodcore Floor Is Not Recommended

• Large IDC data centers & constant-temperature precision laboratories

• Unwaterproofed ground floors, basements, coastal buildings with year-round high humidity

• Hospital disinfection corridors, car wash zones, swimming pool surrounding areas with constant water exposure

• Spaces with strict fire codes that ban combustible underfloor substrates

• Areas with heavy carts or equipment over 2000kg placed long-term

Standard Installation Procedures to Reduce After-Sales Issues

Pre-Install Preparation

1. Survey site flatness & record annual indoor humidity; stock moisture-modified woodcore for damp locations

2. Reserve 5%–10% extra panels of the same batch for future partial replacement to avoid color difference

Full Construction Workflow

Clean raw subfloor → Lay full PE moisture barrier → Mark pedestal grid → Assemble & level steel supports → Cut panels & seal wood edges → Install conductive grounding system (ESD rooms) → Overall flatness inspection

Strict Construction Prohibitions

1. Do not lay cut panels without waterproof edge sealant

2. Skip moisture barrier for damp concrete slabs or rainy construction days

3. Omit conductive gaskets & grounding copper strips for antistatic computer rooms

Daily Maintenance to Extend Floor Service Life

• Cleaning: Only vacuum or damp mop; never flood floor with large volumes of water. Wipe off spilled coffee/disinfectant liquid immediately to avoid moisture seepage into gaps

• Quarterly Inspection: Check panel gaps for bulges & loose pedestals

• Bi-Annual ESD Test: Re-measure surface resistance of antistatic floors every 6 months

• Protection: Fit soft pads under metal carts; avoid direct dragging across HPL surface

• Annual Touch-Up: Reapply waterproof sealant to all repaired/cut edges

Frequently Asked Customer Questions

Q1: Can woodcore floor be installed on basements & ground floors?

A: Ordinary woodcore is not advised. If budget restricts material selection, complete full ground waterproofing + full PE moisture barrier + moisture-modified woodcore + full edge sealing is mandatory. In most cases, calcium sulphate floor delivers better long-term value.

Q2: What is the service life of woodcore floor in regular offices?

A: 15–20 years under stable 35%–65% humidity & regular maintenance; only 3–6 years in damp sites with frequent water leakage.

Q3: Does antistatic woodcore pass IT room inspection standards?

A: Fully qualified for school computer classrooms & small office monitoring rooms. All-steel antistatic floor is recommended for large IDC facilities with higher cooling & static control demands.

Q4: Will heavy server racks dent woodcore panels?

A: Racks under 800kg work fine with load-bearing base plates. Switch to calcium sulphate floor for equipment over 1000kg long-term placement.

New Upgrade Trends of Modern Woodcore Raised Floor

• Moisture & zero-formaldehyde modified substrates to reduce water absorption rate for southern humid cities

• Integral built-in conductive fiber core to simplify on-site grounding work for ESD projects

• Ultra-thin 50mm low-profile woodcore for small office cable routing, minimizing slab load pressure

Final Selection Summary & Huilian Full-Service Support

Choose woodcore floor if your project has a mid-range budget and stable dry indoor environment, ideal for offices, cultural venues and small IT rooms requiring noise reduction. For high-humidity sites, large server rooms or heavy-load zones, calcium sulphate or all-steel raised floor is a more reliable choice.
