From Raised Access Floors To Structural Ceiling Systems: Huilian Creates Integrated Data Center Space Solutions

With the rapid development of data centers, smart manufacturing facilities, and cleanroom environments, modern buildings are facing increasingly complex infrastructure challenges.

Inside today’s data centers, the number of IT devices, power systems, communication cables, and mechanical pipelines continues to grow. Traditional suspended ceilings were mainly designed for appearance and basic finishing. However, modern data center environments require much more:

• Reliable structural support

• Efficient installation and maintenance

• Long-term operational stability

• Flexible space management

In practical applications, the space above the ceiling often accommodates various systems, including:

• Electrical cable trays

• Fire protection pipelines

• HVAC duct systems

• Mechanical and auxiliary equipment

If the ceiling structure lacks sufficient strength and stability, it may affect equipment installation, increase maintenance difficulties, and create potential operational risks.

To meet these requirements, Jiangsu Huilian Access Floor Co., Ltd. has developed the Huilian Aluminum Structural Ceiling Grid System, based on more than 20 years of experience in raised access floor research, manufacturing, and engineering applications.

The system adopts a fully aluminum modular framework with standardized profiles, precision connection nodes, and tested load-bearing performance. It provides a reliable overhead infrastructure solution for:

• Data centers

• Cleanrooms

• Financial technology facilities

• Intelligent manufacturing plants

• High-performance industrial buildings

Fully Aluminum Modular Structure for Complex Spaces

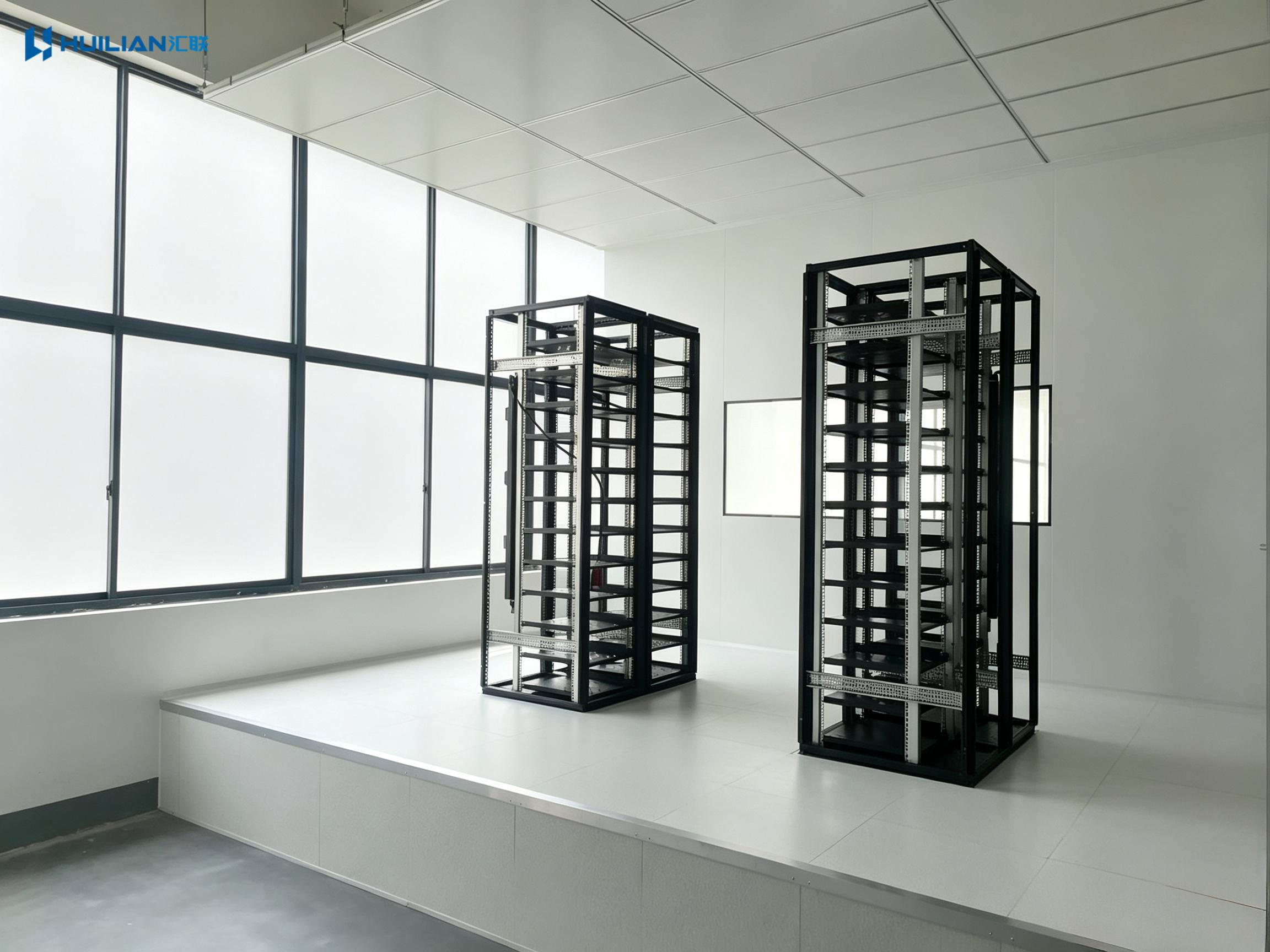

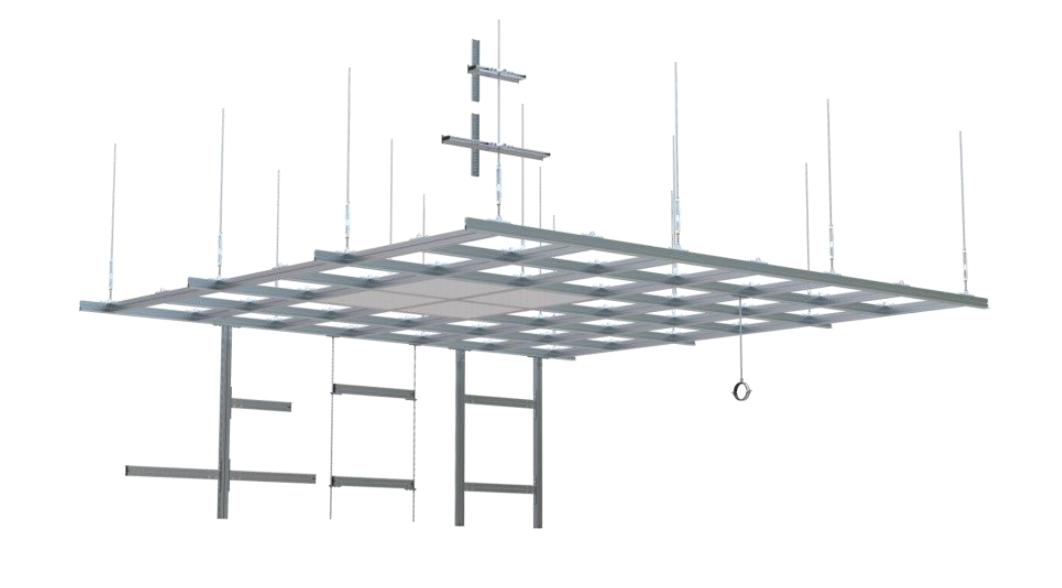

The Huilian Structural Ceiling Grid System uses specially designed aluminum alloy extrusion profiles as the primary load-bearing components.

The complete structure consists of:

• Main beams

• Secondary beams

• Auxiliary lightweight beams

• Perimeter beams

• Aluminum die-cast connectors

Compared with traditional lightweight steel keel systems, aluminum structural ceilings offer significant advantages:

For data centers, ceiling systems are expected to operate continuously for many years. Equipment upgrades, cable adjustments, and maintenance activities are frequent.

Therefore, a modern ceiling system must not only meet initial installation requirements but also support long-term operation and future flexibility.

Multiple Grid Layout Options for Different Project Requirements

Different projects have different ceiling panel sizes, load requirements, and spatial layouts.

To meet diverse engineering needs, Huilian provides multiple modular grid configurations:

Among these options, the 1200mm × 600mm modular grid system is widely adopted in data center projects because it matches standard ceiling panel dimensions while allowing convenient future maintenance and replacement.

Structural Design: A Ceiling System Designed for Load-Bearing Performance

Traditional ceilings mainly focus on surface appearance. Structural ceiling systems focus on overall load distribution and mechanical stability.

The Huilian system creates a modular grid structure through the combination of main beams and secondary beams, allowing loads to be evenly transferred to the building structure.

Main Components Include:

Main Beam

Manufactured from high-strength aluminum alloy profiles, the main beam carries the primary longitudinal load and serves as the core structural component of the ceiling system.

Secondary Beam

The secondary beam connects with the main beam to create a stable grid structure, improving overall rigidity while providing convenient support for ceiling panels.

Lightweight Auxiliary Beam

Used for local grid reinforcement, improving installation flexibility in smaller or special-shaped areas.

Perimeter Beam

Installed around wall edges to provide finishing support and enhance overall ceiling stability.

Tested Load Performance Ensures Data Center Reliability

For special environments such as data centers and server rooms, the key requirement of a ceiling system is not only appearance, but also structural safety and long-term reliability.

Huilian has conducted multiple mechanical performance tests, covering:

• Individual beam strength

• Connection node performance

• Complete modular grid structure verification

For the standard 1200mm × 600mm grid system, the tested performance includes:

• ndividual main and secondary beams have also been tested with higher load capacity:

• Rated concentrated load: 4.4kN (approx. 448kg)

• Rated distributed load: 6.1kN/m² (approx. 611kg/m²)

• Maximum tensile force of clip connection nodes: 1233.8kgf

These test results demonstrate that Huilian’s structural ceiling system can support not only conventional ceiling installations but also various overhead infrastructure systems commonly found in modern data centers:

• Cable trays

• Fire protection pipelines

• HVAC ductwork

• Mechanical auxiliary equipment

A reliable overhead load-bearing structure helps reduce future modification risks and improves the long-term stability of critical facility operations.

Precision Connection System Improves Structural Stability and Installation Efficiency

Besides the strength of the ceiling profiles themselves, connection nodes are one of the most important factors determining the reliability of a structural ceiling system.

The Huilian Structural Ceiling Grid System adopts an aluminum die-cast connector system. Through standardized connection design, beams in different directions can be accurately assembled, creating a complete load-bearing network.

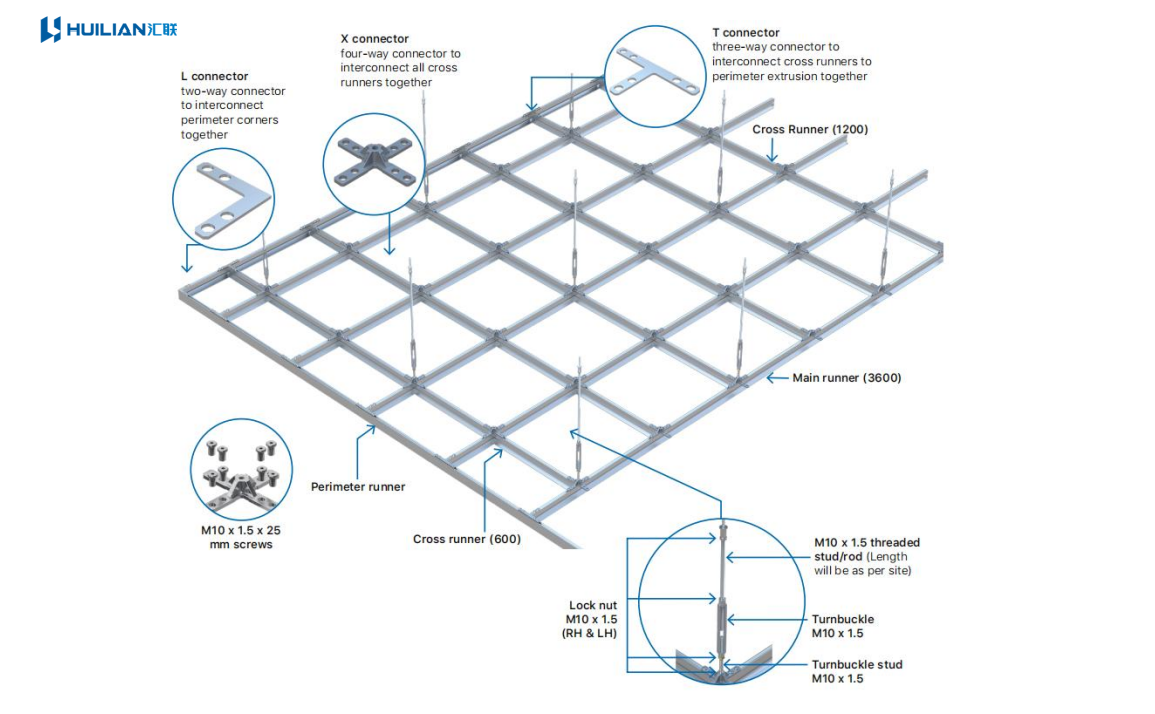

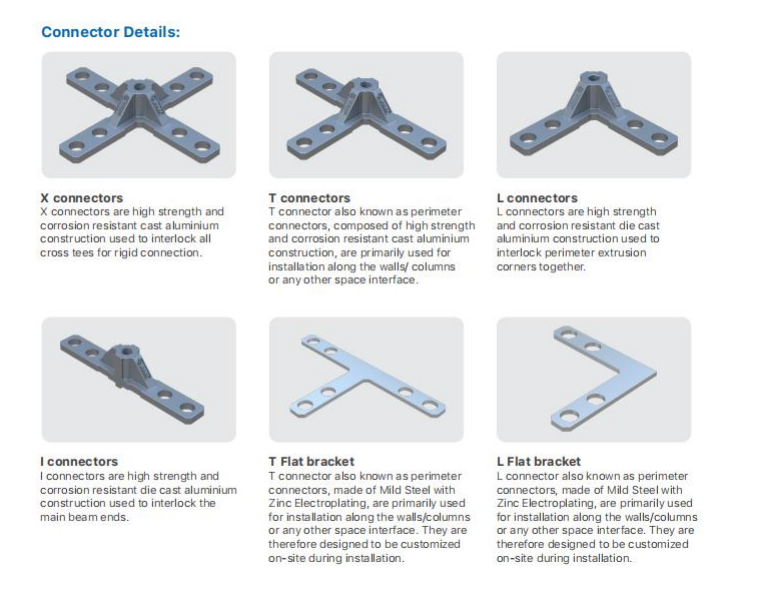

The system mainly uses three types of connectors:

All connectors are manufactured through aluminum die-casting technology and precisely matched with the aluminum extrusion profiles.

Compared with traditional on-site cutting and welding methods, modular connection technology provides clear advantages:

l Reduced on-site processing work

l Improved installation accuracy

l Shortened construction time

l Reduced human installation errors

For large-scale data center projects, standardized installation methods significantly improve construction efficiency while also making future partial dismantling, expansion, and maintenance easier.

Flexible Suspension Design for Different Building Structures

A reliable ceiling system requires not only strong structural components but also a flexible suspension solution that can adapt to different building conditions.

The Huilian Structural Ceiling System uses M10 suspension rods connected to the main building structure, with turnbuckles allowing precise height adjustment.

The standard suspension system includes:

Turnbuckle

Used for fine adjustment of installation height, ensuring accurate ceiling leveling.

Locking Nut

Maintains structural stability after height adjustment.

Connection Components

Transfer loads between the ceiling structure and the building framework.

The standard suspension points are arranged at 1.2m × 1.2m spacing, with approximately 0.89 suspension rod assemblies installed per square meter, ensuring uniform load distribution throughout the ceiling system.

Adaptable Edge Solutions for Different Wall Structures

Different construction environments require different installation methods.

Huilian provides customized edge connection solutions:

Concrete Walls and Brick Walls

The system adopts perimeter beam suspension methods to improve overall structural stability.

Lightweight Walls Such as Gypsum Board Partitions

Lightweight beam fixing methods are used to simplify installation and reduce construction complexity.

This flexible design allows the structural ceiling system to adapt to different building types and site conditions.

Standardized Manufacturing and Reliable Project Delivery Capability

For large engineering projects, product performance is only one consideration. Customers also pay close attention to:

• Production capacity

• Supply reliability

• Delivery schedules

• Quality consistency

Huilian has established a complete manufacturing system covering:

• Raw material sourcing

• Aluminum extrusion processing

• Surface treatment

• Connector production

• Finished product packaging

through its two major production bases in Changzhou and Linyi, China.

With an annual production capacity of more than 2.5 million square meters of raised access flooring, Huilian has accumulated extensive manufacturing experience and supply chain capabilities, providing stable support for structural ceiling projects.

The combination of:

• Advanced manufacturing processes

• Standardized production management

• Experienced engineering teams

enables Huilian to provide reliable delivery for large-scale infrastructure projects.

Engineering Experience: Supporting High-Standard Data Center Projects

With extensive experience in the raised access floor industry, Huilian’s structural ceiling systems have been successfully applied in multiple data center and intelligent manufacturing projects.

Domestic Projects in China Include:

• GDS Langfang Data Center Project

• Zhongyiyun Beijing Data Center Project

• Bank of China Head Office Hefei FinTech Center

• China Unicom Hohhot Data Center Project

• Wuhu Longteng Intelligent Computing Internet Industrial Project

These projects cover industries including:

• Financial services

• Cloud computing

• Artificial intelligence infrastructure

• Smart manufacturing

They require high standards for:

• Structural reliability

• Installation efficiency

• Long-term maintenance performance

Overseas Project Experience

Huilian products have also been delivered to international projects, including:

• Dongshan Precision Rayong Industrial Park Project, Thailand

• Chindata Hyperscale Data Center Project, Malaysia

• CPGC Industrial Park Project, Thailand

• Tongfu Microelectronics Penang Project, Malaysia

• AGC-related Projects in Japan

Through stable product quality and professional project delivery capabilities, Huilian continues to provide reliable infrastructure solutions for customers worldwide.

Why Choose Huilian Structural Ceiling Grid System?

For data centers, cleanrooms, and high-performance industrial facilities, a ceiling system is not simply a decorative component.

It is a critical part of the building infrastructure that directly affects:

• Structural safety

• Operation efficiency

• Maintenance convenience

• Long-term project cost

The advantages of Huilian Structural Ceiling System come not only from innovative product design but also from more than 20 years of engineering experience and manufacturing expertise.

Fully Aluminum Structure Designed for Long-Term Operation

Huilian uses aluminum alloy as the primary structural material.

Compared with traditional steel keel systems, aluminum alloy provides:

• Excellent corrosion resistance

• More stable long-term performance

• Lower maintenance requirements

• Better suitability for clean environments

In environments such as:

• Data centers

• Semiconductor facilities

• Electronics manufacturing plants

• Clean rooms

where environmental control is extremely important, material stability directly influences the reliability of the entire facility.

A corrosion-resistant aluminum structure helps maintain consistent performance throughout the building lifecycle.

Tested Structural Performance Improves Project Reliability

For engineering projects, proven performance is more valuable than theoretical design.

The Huilian Structural Ceiling System has been tested from:

• Individual beam performance

• Connector strength

• Complete grid system load capacity

to verify structural reliability.

With a 2.0 safety factor design, the system provides sufficient load reserves during daily operation and can support:

• Overhead cable trays

• Mechanical pipelines

• HVAC systems

• Auxiliary equipment

required in modern data center environments.

Compared with designs based only on experience, verified test data provides clearer selection criteria for:

• Architects

• Design institutes

• General contractors

• Facility owners

Modular Design Improves Construction Efficiency

Large-scale data center projects often require strict construction schedules.

Installation efficiency has become a key factor affecting project delivery.

Huilian Structural Ceiling System adopts:

• Standardized aluminum profiles

• Modular grid design

• Factory-produced components

• Fast assembly connection methods

This reduces:

• On-site cutting

• Welding operations

• Installation errors

while improving overall construction efficiency.

At the same time, the modular structure makes future:

• Equipment upgrades

• Room expansion

• Local replacement

• Maintenance operations

more convenient.

Raised Access Floor + Structural Ceiling: A Complete Data Center Space Solution

As a company specializing in raised access floor development and manufacturing, Huilian focuses not only on the lower floor space but also on the overall coordination of the entire data center environment.

In modern data center construction:

Raised Access Floor System

Provides:

• Underfloor cable management

• Cold and hot aisle organization

• Equipment installation support

Structural Ceiling System

Provides:

• Overhead pipeline management

• Mechanical system support

• Maintenance space optimization

By combining both systems, customers can achieve:

• Unified supplier management

• Reduced coordination between multiple suppliers

• Improved project efficiency

• Optimized overall space planning

Huilian provides a complete floor-to-ceiling integrated infrastructure solution for modern data centers.

Structural Ceiling Solutions for Future Data Center Development

With the rapid growth of:

• Artificial intelligence

• Big data applications

• Cloud computing

next-generation data centers are demanding higher standards for:

• Space utilization

• Safety performance

• Operational efficiency

Future data centers will require not only stronger computing capabilities but also more reliable supporting infrastructure.

As an important part of the overhead infrastructure system, structural ceilings will take on more functions:

• Supporting complex MEP systems

• Improving space organization

• Enhancing maintenance efficiency

• Extending building service life

With its aluminum structural design, modular installation system, and mature manufacturing capabilities, Huilian Structural Ceiling System provides a reliable solution for:

• Data centers

• Cleanrooms

• Smart manufacturing facilities

• High-standard industrial projects

Conclusion: Creating Smarter and More Reliable Infrastructure Spaces

From raised access floors to structural ceiling systems, Huilian continuously develops products around the functional needs of modern buildings.

Through:

• Material innovation

• Structural optimization

• Engineering experience accumulation

Huilian Structural Ceiling System is helping more high-standard projects achieve safer, more efficient, and more sustainable overhead infrastructure solutions.

Moving forward, Huilian will continue leveraging its manufacturing advantages in modular building systems to provide global customers with more complete integrated raised space solutions.
