In data centers, telecommunications rooms, electrical control rooms, precision electronics facilities, and modern offices, flooring needs to do more than provide a finished walking surface. It may also need to support equipment, control static electricity, withstand daily wear, and provide space for cables and services.

Ceramic anti-static raised flooring combines a wear-resistant ceramic surface with an access floor system. This makes it suitable for projects where static control, durability, equipment loads, and underfloor access need to be considered together.

Two common configurations are steel ceramic anti-static raised floors and calcium sulphate ceramic anti-static raised floors. Both use an anti-static ceramic finish, but their core materials and structural characteristics are different.

The right choice therefore depends on the complete flooring system rather than the ceramic surface alone.

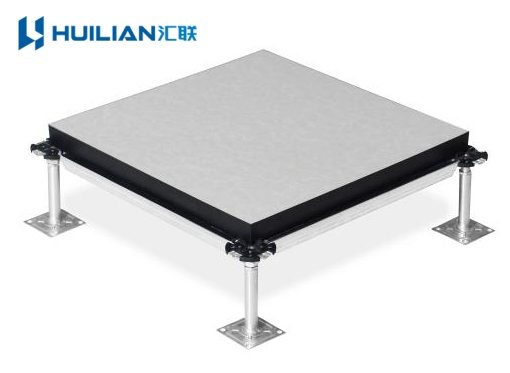

What Is Ceramic Anti-Static Raised Flooring?

Ceramic anti-static raised flooring combines an anti-static ceramic surface with a raised access floor structure.

Unlike conventional ceramic tiles installed directly onto a concrete slab, raised flooring uses panels, pedestals, and often stringers to create an accessible space below the finished floor.

This underfloor space can be used for power cables, data cables, and other building services. It also provides access for inspection, maintenance, and future changes.

A typical system consists of:

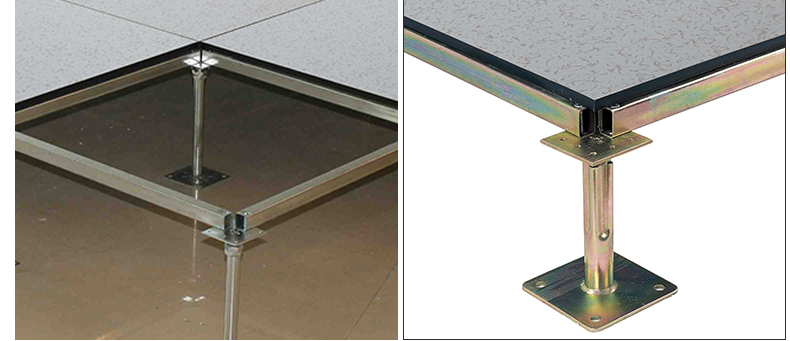

Anti-static ceramic finish + floor panel + pedestals and stringers + grounding system

The ceramic surface mainly provides wear resistance, static control, and the finished appearance. The panel structure and support system are responsible for carrying the applied loads.

For this reason, the performance of a ceramic anti-static raised floor should be evaluated as a complete system.

Two Main Types of Ceramic Anti-Static Raised Floors

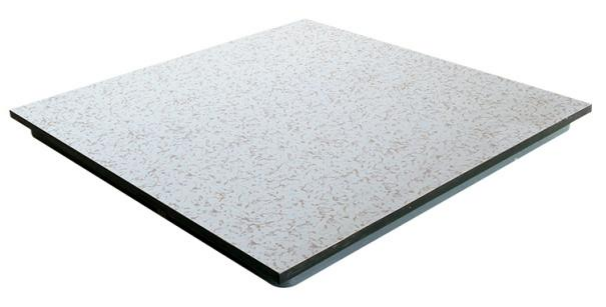

Steel Ceramic Anti-Static Raised Floor

Steel ceramic anti-static raised floors use a steel-based panel structure with an anti-static ceramic finish. The panels are installed on pedestals and stringers to form the raised floor system.

Steel construction provides a stable and well-established structure for raised access flooring and is widely used in data centers, telecommunications rooms, electrical control rooms, and commercial spaces.

Key characteristics include:

Structural strength

The steel panel and support system can be configured according to the required load rating and project conditions.

Wear-resistant ceramic surface

The ceramic finish is suitable for areas exposed to regular foot traffic, equipment movement, and trolley or maintenance activity.

Underfloor cable management

The raised space provides room for power, network, and other services while maintaining access for future maintenance.

Modular maintenance

With a modular installation, individual panels can generally be removed when inspection or replacement is required, subject to the system design.

Steel ceramic anti-static raised floors are therefore suitable for projects that require a combination of load-bearing performance, wear resistance, static control, and underfloor access.

Calcium Sulphate Ceramic Anti-Static Raised Floor

Calcium sulphate ceramic anti-static raised floors use calcium sulphate panels as the core material, finished with an anti-static ceramic surface and supported by pedestals and stringers.

Calcium sulphate panels are known for their dimensional stability and can provide useful fire and acoustic characteristics depending on the specific product construction.

They can also create an accessible underfloor space for cable management and maintenance.

For data centers, telecommunications facilities, and higher-specification commercial projects, calcium sulphate ceramic raised floors can be considered alongside steel systems.

The actual performance depends on panel thickness, density, construction, load rating, and surface treatment. Product specifications and test reports should therefore be checked before selection.

Steel vs. Calcium Sulphate Ceramic Raised Floors

Both systems can use an anti-static ceramic finish. The main difference is the panel core.

Neither structure should be selected simply because one material appears better than the other.

For example, a data center may place greater emphasis on cabinet loads, equipment movement, and raised floor height. An office project may focus more on appearance, wear resistance, maintenance, and total project cost.

The appropriate system should be selected according to the actual project requirements.

Key Benefits of Ceramic Anti-Static Raised Flooring

Static Control for Sensitive Environments

Anti-static ceramic surfaces combined with a suitable grounding system can be used in environments where electrostatic control is important, including data centers, telecommunications rooms, electrical control rooms, and precision electronics facilities.

When selecting a system, check the relevant surface resistance, system resistance, and test data.

Static control also depends on the overall grounding arrangement and site conditions. The floor should therefore be considered as part of the project’s complete ESD protection system.

Durable and Easy-to-Maintain Surface

Ceramic surfaces offer good hardness and wear resistance, making them suitable for areas with regular foot traffic, equipment movement, and maintenance activity.

The surface is also relatively easy to clean and can generally be maintained through routine cleaning.

However, ceramic surface hardness should not be confused with the load capacity of the raised floor system.

Mohs hardness relates mainly to resistance to scratching, while floor load performance depends on factors such as concentrated load, uniformly distributed load, rolling load, panel construction, and pedestal configuration.

For heavy equipment areas, the complete system load rating should be checked.

Convenient Cable Management and Maintenance

The raised space beneath the floor provides a practical route for power and data cables.

When equipment is expanded, cables are rearranged, or inspections are required, selected panels can be removed to provide access to the underfloor space.

This modular approach is particularly useful in data centers and technical rooms where infrastructure may change over time.

Ceramic Surface with Good Fire Resistance

Ceramic is an inorganic material with good fire-resistant characteristics.

For projects with specific fire-performance requirements, however, the rating of the complete raised floor system should be confirmed through relevant test documentation rather than judged from the ceramic surface alone.

Flexible Underfloor Infrastructure

A conventional tiled floor provides limited access once installation is complete. Changes to power or data services may require additional construction work.

A raised floor creates a dedicated service zone beneath the finished surface, making it easier to manage cables and accommodate future changes.

This is one of the main reasons raised access flooring is widely considered for data centers, equipment rooms, and flexible office environments.

Where Is Ceramic Anti-Static Raised Flooring Used?

Data Centers, Computing Facilities, and Telecommunications Rooms

Data centers typically require a combination of equipment load capacity, static control, cable management, and maintenance access.

Ceramic anti-static raised flooring can provide the required underfloor space while allowing the system to be configured for different equipment loads.

For liquid-cooled data centers, the design should also consider cooling pipes, floor height, maintenance access, and cabinet layout.

Where underfloor air distribution is required, ventilation panels and airflow requirements should be considered as part of the overall floor design.

Electrical Control Rooms and Equipment Rooms

Electrical control rooms and telecommunications equipment rooms often contain a large amount of cabling and electronic equipment.

Raised flooring provides space for cable management while maintaining access for inspection and maintenance.

Panel load rating, pedestal configuration, and floor height should be selected according to the equipment and site conditions.

Precision Electronics and Industrial Facilities

Precision electronic equipment can be sensitive to electrostatic discharge. Flooring in these environments may also need to provide good wear resistance and easy maintenance.

Ceramic anti-static flooring can be considered for suitable production and support areas.

For semiconductor cleanrooms and other highly controlled environments, however, the flooring system should be selected according to the specific cleanroom classification, manufacturing process, chemical exposure, and project requirements.

High-End and Flexible Offices

Modern offices increasingly require flexible power, data, and technology infrastructure.

A raised floor can place services below the finished surface while maintaining access for future changes.

Where a project requires a combination of appearance, wear resistance, static control, and cable management, ceramic anti-static raised flooring can be considered.

How to Select a Ceramic Anti-Static Raised Floor

Determine the Required Load Rating

For data centers and equipment rooms, start with the actual equipment weight, cabinet configuration, and equipment transportation requirements.

Important parameters may include:

Concentrated load, uniformly distributed load, rolling load, ultimate load, and pedestal capacity.

Different areas of a project may require different load ratings, so zoning the floor system can be more practical than using one specification throughout the entire facility.

Check Static-Control Requirements

Review surface resistance, system resistance, grounding method, and relevant test data.

If the project specifies a particular ESD requirement, the supplier should be able to provide supporting test documentation.

A single resistance value in a product brochure is not enough to evaluate the complete ESD performance of a raised floor system.

Determine the Required Floor Height

The required raised floor height depends largely on what needs to be installed underneath.

Power cables, data cables, cooling pipes, and other services may require different amounts of underfloor space.

Once the floor height is determined, the pedestal, stringer, and overall system stability should be checked accordingly.

Choose Between Steel and Calcium Sulphate

Steel ceramic raised floors can be considered when the project requires a robust steel-based access floor structure and a well-established system configuration.

Calcium sulphate ceramic raised floors may be suitable when the project places greater emphasis on the characteristics of calcium sulphate panels, including dimensional stability and relevant fire or acoustic performance.

The final selection should be based on project specifications, test data, installation conditions, and operating requirements.

Review Test Reports and Project Experience

Before purchasing a raised floor system for a major project, review:

• Product test reports

• Load test data

• Static-control test results

• Fire-performance documentation

• Panel and installation structure

• Pedestal and stringer configuration

• Relevant project references

For high-load applications, system-level test data is particularly important.

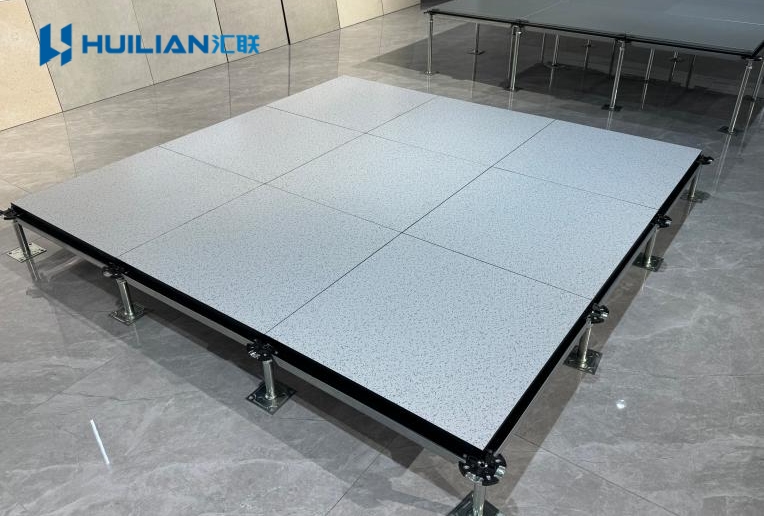

Huilian Ceramic Anti-Static Raised Floor Systems

Huilian provides both steel ceramic anti-static raised floors and calcium sulphate ceramic anti-static raised floors for applications including data centers, telecommunications rooms, electrical control rooms, and commercial facilities.

The system can be configured according to project requirements such as equipment loads, raised floor height, ESD requirements, operating environment, and installation conditions.

For large data center projects, floor design can also be coordinated with cabinet layouts, underfloor services, ventilation requirements, and maintenance access.

Rather than selecting a raised floor panel based only on unit price or surface appearance, it is more practical to evaluate the complete system, including panels, pedestals, stringers, grounding, and installation.

Frequently Asked Questions

What is the difference between steel and calcium sulphate ceramic anti-static raised floors?

The main difference is the panel core.

Steel systems use a steel-based panel, while calcium sulphate systems use a calcium sulphate panel. Both can be finished with anti-static ceramic and installed as modular raised access floor systems.

The choice depends on load requirements, fire performance, floor height, operating environment, and project budget.

Is ceramic anti-static raised flooring suitable for data centers?

Yes. It can be used as one of the raised floor solutions for data center environments.

The design should take into account load rating, pedestal structure, raised floor height, ESD performance, ventilation requirements, and underfloor services.

For heavy cabinets, concentrated and rolling load performance should be checked carefully.

Can individual panels be replaced?

In a modular raised floor system, individual panels can generally be removed and replaced when necessary, subject to the specific system design.

This provides convenient access for inspection and maintenance without removing the entire floor.

Can ceramic anti-static raised flooring be used as a ventilation floor?

Yes, depending on the system configuration.

For data centers using underfloor air distribution, ventilation panels can be integrated according to airflow requirements, raised floor height, cabinet arrangement, and cooling strategy.

How should the load capacity of a ceramic raised floor be evaluated?

Do not evaluate load capacity based only on ceramic surface hardness.

Check the complete system’s concentrated load, uniformly distributed load, rolling load, ultimate load, panel construction, and pedestal and stringer configuration.

For heavy equipment areas, these values should be matched to the actual equipment and transportation conditions.

Conclusion

Ceramic anti-static raised flooring is not simply a ceramic tile product. It is a complete access floor system combining the surface finish, panel core, support structure, and grounding system.

Steel ceramic anti-static raised floors and calcium sulphate ceramic anti-static raised floors are two common configurations. Both can provide a durable, static-controlled surface together with underfloor space for cables and services.

For data centers, telecommunications rooms, electrical control rooms, precision electronics facilities, and flexible offices, the key is not simply choosing a ceramic surface. The complete system should match the project’s requirements for load capacity, ESD control, raised floor height, fire performance, and maintenance access.
