Calcium Sulphate Raised Access Floor Selection Guide 2026: Performance, Applications and Key Considerations

In data centers, server rooms, electrical control rooms and high‑end office spaces, raised access floors do more than support people and equipment. They also create a flexible underfloor space for power cables, data lines and other building services.

For projects where fire performance, load capacity, dimensional stability, acoustic comfort and long‑term reliability are important, calcium sulphate raised access floors have become a popular solution.

However, choosing a raised floor is not simply a matter of selecting the thickest or most expensive panel. The right specification depends on the building structure, equipment loads, access floor height, operating environment and surface finish.

This guide explains the key advantages, applications and selection considerations of calcium sulphate raised access floors, helping architects, contractors, data center engineers and building owners make a more informed decision.

What Are Calcium Sulphate Raised Access Floors?

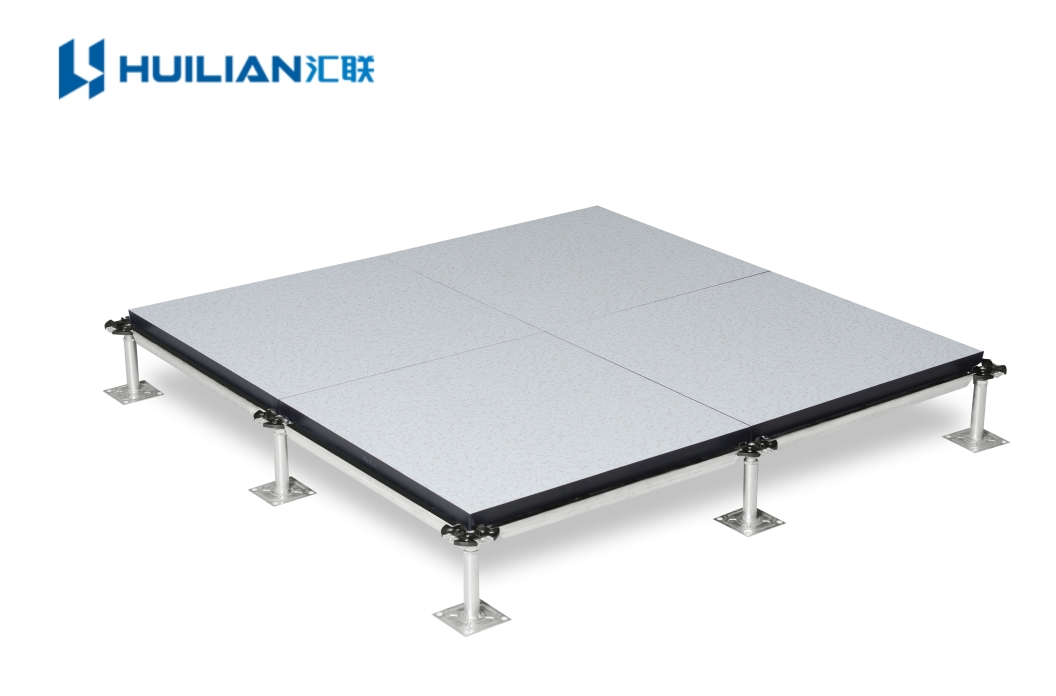

A calcium sulphate raised access floor uses a high‑density calcium sulphate panel as its core material. The panel can be combined with different surface finishes, edge treatments, pedestals and stringers to form a complete raised floor system.

Compared with woodcore and some steel raised floors, calcium sulphate panels offer several advantages.

Good Fire Performance

Calcium sulphate is an inorganic material with good fire‑resistant characteristics, making it suitable for applications where fire performance is an important consideration, including data centers, server rooms and electrical control rooms.

The actual fire classification should always be verified against the specific product test report and the standards applicable to the project.

Good Dimensional Stability

Calcium sulphate panels are relatively stable under normal temperature and humidity variations.

This makes them suitable for controlled environments such as data centers, server rooms and modern office buildings where long‑term floor stability is important.

Solid Feel and Reduced Footfall Noise

The high‑density, solid construction of calcium sulphate panels provides a firm and stable walking surface.

Compared with some hollow‑core raised floor constructions, calcium sulphate panels can help reduce hollow sounds and footfall noise, making them suitable for offices, control rooms and other spaces where acoustic comfort matters.

Compatible with Different Surface Finishes

Depending on the project requirements, calcium sulphate raised floors can be supplied with finishes such as:

• HPL

• Anti‑static PVC

• Conductive PVC

• Ceramic finishes

• Carpet

This allows the same basic raised floor system to be adapted to different functional and aesthetic requirements.

Where Calcium Sulphate Raised Floors May Not Be the Best Choice

Although calcium sulphate raised floors offer several advantages, they are not suitable for every environment.

Higher System Weight

Because calcium sulphate is a relatively dense material, the finished system can be heavier than some woodcore raised floors.

For renovation projects, particularly in older buildings, the existing floor load capacity should therefore be checked before installation.

Not Designed for Long‑Term Water Exposure

Calcium sulphate raised floors should not be exposed to prolonged water immersion.

If a project has a significant risk of groundwater infiltration, flooding or persistent leakage, the waterproofing and drainage conditions should be addressed before selecting the floor system.

Initial Cost

Depending on the specification, calcium sulphate raised floors may have a higher initial purchase cost than some economy raised floor systems.

For data centers and other long‑term facilities, however, the evaluation should consider not only the initial purchase price but also service life, maintenance, replacement and overall lifecycle cost.

Calcium Sulphate vs. Steel vs. Woodcore Raised Floors

There is no single raised floor material that is best for every project.

For projects prioritizing fire performance, acoustic comfort, dimensional stability and a solid walking feel, calcium sulphate can be a strong option.

For environments with high humidity, heavy‑duty loads or demanding industrial conditions, steel raised floor systems may be more appropriate depending on the application.

Where low system weight and initial budget are the main priorities, woodcore systems may also be considered.

How to Choose Calcium Sulphate Raised Floors for Different Applications

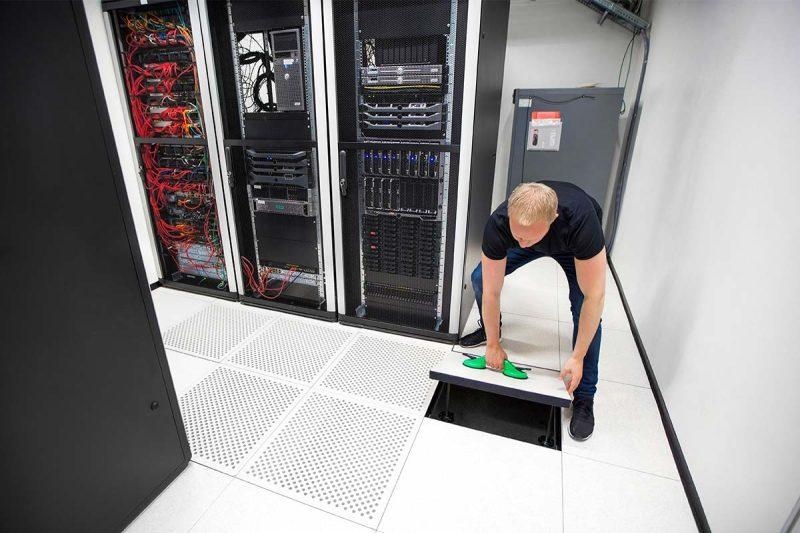

Data Centers and Server Rooms

Data centers typically require a combination of ESD protection, load capacity, appropriate floor height and long‑term stability.

A common configuration is a 600 × 600 mm calcium sulphate anti‑static raised floor, with panel thickness and pedestal configuration selected according to rack loads and project requirements.

Where an underfloor air distribution system is used, ventilation panels should be positioned according to the HVAC design, rack layout and airflow requirements.

One important point is often overlooked:
The higher the raised floor, the more important the stability of the pedestal system becomes.

Simply increasing the pedestal height is not enough for high‑access‑floor applications. Depending on the floor height and project conditions, stringers, bracing or other reinforcement measures may be required.

Electrical Control Rooms

Electrical control rooms typically require a floor system that provides ESD protection, adequate load capacity, structural stability and convenient access for cable maintenance.

Calcium sulphate raised floors can be supplied with suitable conductive finishes and edge treatments according to the project's ESD requirements. A properly designed grounding system is also required to provide a reliable path for static charge dissipation.

For switchgear, control cabinets and other concentrated loads, the equipment weight and support‑leg locations should be reviewed in advance. The panel thickness, pedestal arrangement and stringer configuration can then be selected accordingly.

Where localized heavy loads are present, additional reinforcement may be required to maintain long‑term system stability.

For high‑voltage electrical rooms, areas with heavy electrical equipment, or environments with significant humidity, oil contamination or other special conditions, the floor material should be evaluated according to the actual operating environment rather than selected solely because it offers anti‑static performance.

High‑End Offices and Technology Centers

Office environments often place greater emphasis on underfoot comfort, acoustic performance, appearance and future flexibility.

Calcium sulphate raised floors can be combined with carpet or other decorative finishes while keeping power and data cables within the underfloor void.

This approach can reduce the need for conventional floor chasing and makes future office reconfiguration easier.

Existing Building and Server Room Renovation

Existing buildings require particular attention to structural load capacity.

Before selecting a calcium sulphate raised floor, the project should consider:

Existing floor load capacity + raised floor system weight + equipment loads + personnel and maintenance loads.

Once the structural conditions have been confirmed, the appropriate panel thickness, pedestal height and reinforcement method can be determined.

Raised Floor Load Capacity: Don't Look at One Number

One of the most common questions during raised floor procurement is:

“How much weight can the panel support?”

For engineering projects, this question is only part of the evaluation.

The following factors should also be reviewed:

• Concentrated load

• Rolling load

• Ultimate failure load

• Panel thickness

• Core construction

• Pedestal spacing

• Stringer configuration

• Finished floor height

For data centers, UPS systems, battery cabinets, switchgear and other heavy equipment, evaluating the panel alone is not sufficient.

The overall performance of a raised access floor depends on the panel, pedestals, stringers, fixing method and installation quality working together as one system.

Five Common Mistakes When Buying Calcium Sulphate Raised Floors

Mistake 1: Comparing Price Only

Two 600 × 600 mm calcium sulphate panels can have very different prices depending on thickness, core construction, surface finish and pedestal configuration.

The better approach is to compare systems based on equivalent technical specifications.

Mistake 2: Looking Only at Panel Load Capacity

A panel may meet its specified load requirement, but this does not automatically mean that the pedestal and stringer system is suitable for the same application.

Mistake 3: Assuming Thicker Means Better

A 30 mm panel is not automatically inferior to a 35 mm panel.

Panel thickness should be evaluated together with the core material, load test data, support configuration and actual project requirements.

Mistake 4: Installing High Raised Floors Without Reinforcement

As floor height increases, lateral stability becomes increasingly important.

High‑access‑floor systems should therefore be designed with appropriate reinforcement according to the actual floor height, loading and project conditions.

Mistake 5: Installing Anti‑Static Floors Without Grounding Tests

An anti‑static raised floor system requires coordinated electrical continuity between the conductive finish, edge treatment, supporting system and building grounding system.

The completed installation should be tested according to the project's ESD requirements.

Huilian: From Raised Floor Panels to Complete System Solutions

For an engineering project, the real question is not simply which floor panel to purchase.

It is:

Which panel specification, pedestal system, stringer configuration, surface finish and floor height will provide the right solution for the project?

Huilian can provide calcium sulphate raised access floor solutions based on the actual project requirements, including:

• Panel specification and thickness selection

• Load and application analysis

• Anti‑static system configuration

• Raised floor height design

• Pedestal and stringer selection

• High‑access‑floor reinforcement

• Ventilation panel layout

• Reinforcement for heavy equipment areas

• Installation and technical support

From data centers and server rooms to electrical control rooms and high‑end offices, Huilian focuses on matching the raised floor system to the actual operating conditions of each project.

A good raised access floor is not simply about having impressive specifications. More importantly, it should remain stable and reliable after installation and throughout its service life.

Frequently Asked Questions

Q1: Is calcium sulphate flooring suitable for data centers?

Yes. Calcium sulphate raised floors can provide good fire performance, dimensional stability and load‑bearing performance for many data center and server room applications.

The appropriate specification should be selected according to rack loads, floor height, airflow requirements and the overall support system.

Q2: Is calcium sulphate flooring waterproof?

Calcium sulphate raised floors are not intended for prolonged water exposure.

Projects with a risk of water leakage or flooding should address waterproofing and drainage before selecting the floor system.

Q3: How do I choose between 30 mm and 35 mm calcium sulphate panels?

The choice should be based on equipment loads, traffic conditions, support configuration and product test data.

Panel thickness alone should not be used to determine suitability.

Q4: Can calcium sulphate raised floors be installed at heights above 1000 mm?

Yes, but higher access floor heights place greater demands on pedestal and overall system stability.

Additional reinforcement or structural design may be required depending on the project conditions.

Q5: How can I identify a high‑quality calcium sulphate raised floor?

Check the panel core, thickness, load test data, surface finish, edge treatment, pedestal and stringer construction, as well as the relevant product test documentation.

Price alone is not a reliable indicator of product quality.

Conclusion

The main advantages of calcium sulphate raised access floors include good fire performance, dimensional stability, solid underfoot feel and long‑term reliability.

However, calcium sulphate is not the universal solution for every project.

A practical selection process should start with the building conditions and equipment loads, followed by the application requirements, panel specification and support system.

If you are planning a data center, server room, electrical control room or high‑end office raised floor project, provide your project area, required floor height, equipment loads and application requirements to the Huilian technical team.

Huilian can help evaluate the appropriate panel and complete raised access floor system for your project.

Huilian — Raised Access Floor Systems Designed Around Real Project Requirements.
