C Channel Steel for Server Cabinets: A Reliable Support Solution for Data Center Infrastructure

Introduction

With the rapid growth of cloud computing, artificial intelligence (AI), 5G communication, and big data industries, the scale of data center construction continues to expand worldwide. As the foundation for installing critical equipment such as servers, network switches, UPS systems, and battery cabinets, the structural stability of cabinet support systems directly affects the safety and reliability of the entire data center operation.

Among various cabinet structural components, C channel steel is one of the most important load-bearing elements. Compared with traditional angle steel or welded steel structures, C channel steel offers higher structural strength, better modular design, and improved installation efficiency. As a result, it has been widely used in:

• IDC data centers

• Telecom equipment rooms

• Government information centers

• Railway and transportation facilities

• Financial data centers

• Power systems

• Intelligent manufacturing facilities

For data center contractors and system integrators, selecting the right C channel steel can significantly improve cabinet stability, reduce installation costs, simplify future expansion and maintenance, and extend the service life of the entire infrastructure system.

What Is C Channel Steel for Server Cabinets?

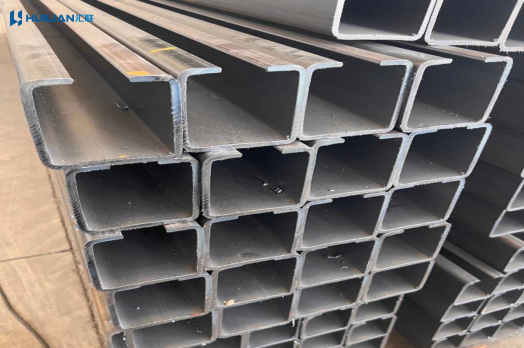

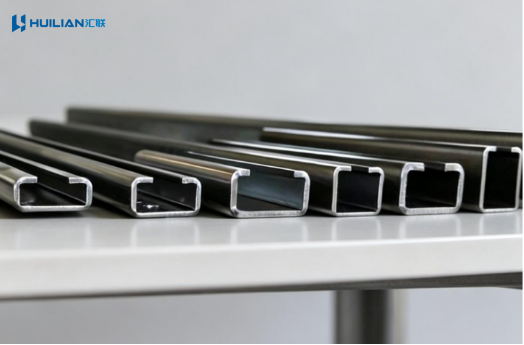

C channel steel for server cabinets is a standardized steel profile manufactured through a cold-forming process. Its cross-section is shaped like the letter “C”, which gives it its name.

Compared with traditional welded angle steel, C channel steel is produced according to standardized dimensions, providing:

• High dimensional accuracy

• Easy installation

• Strong interchangeability

• Flexible configuration options

It can be used as:

• Cabinet support columns

• Horizontal beams

• Reinforcement frames

• Mounting structures for accessories

Modern data centers increasingly adopt modular cabinet designs. Standardized C channel steel perfectly matches this construction approach, allowing faster on-site installation while making future equipment upgrades, cable adjustments, and cabinet expansion easier.

Why Do Modern Data Centers Prefer C Channel Steel?

Traditional cabinet support structures often use ordinary angle steel or welded frames, which require cutting, welding, and additional processing on-site. This not only reduces construction efficiency but also makes future modification difficult.

As data centers move toward standardization and modular construction, C channel steel has become a preferred solution due to its advantages:

1. High Structural Strength

C channel steel provides excellent bending resistance and compression performance, making it suitable for supporting:

• High-density server racks

• UPS cabinets

• Power distribution equipment

• Network equipment

With proper design and installation, it can effectively distribute loads and improve the overall stability of cabinet structures.

2. Galvanized Surface Treatment for Corrosion Protection

Although data centers typically operate in controlled temperature and humidity environments, long-term operation, airflow circulation, and slight moisture exposure may still affect steel structures.

High-quality C channel steel usually adopts:

• Hot-dip galvanizing

• Electro-galvanizing

These surface treatments create a protective layer on the steel surface, improving corrosion resistance and extending service life.

This feature is especially important for:

• Coastal areas

• High-humidity environments

• Industrial facilities

where long-term durability and low maintenance are required.

Technical Specifications of C Channel Steel for Server Cabinets

3. Modular Installation Improves Construction Efficiency

Modern data center projects usually have strict construction schedules and large numbers of equipment installations. Therefore, installation efficiency directly affects project delivery time.

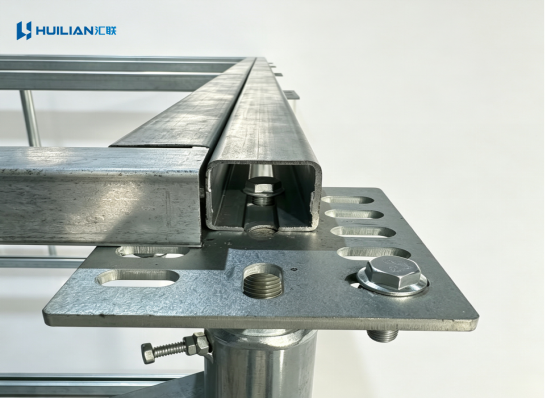

Compared with traditional welded steel structures, C channel steel adopts standardized dimensions and pre-punched mounting holes, eliminating the need for on-site welding. Installation can be completed quickly by using bolts and connection accessories.

This modular installation method provides several advantages:

• Shorter construction periods

• Lower labor costs

• Reduced safety risks caused by welding operations

• Higher installation accuracy and cleaner structure appearance

• Easy dismantling and reuse

For data centers requiring rapid deployment or phased expansion, modular C channel steel systems can significantly improve construction efficiency while reducing future modification costs.

4. Excellent Compatibility for Different Cabinet Applications

Different projects have different requirements for cabinet sizes and internal configurations.

C channel steel systems can be applied to various equipment cabinets, including:

• Network cabinets

• Server racks

• UPS cabinets

• Battery cabinets

• Power distribution cabinets

• Structured cabling cabinets

Although these cabinets serve different purposes, they all require stable and reliable support structures.

Standardized C channel steel can be integrated with:

• Support beams

• Mounting trays

• Shelves

• Cable trays

• Grounding systems

• Various installation accessories

This provides greater flexibility for future equipment upgrades and maintenance.

For data center operators, this means additional servers can be installed, cable layouts can be adjusted, and equipment can be upgraded without rebuilding the entire support structure, effectively reducing renovation costs.

5. Lower Life Cycle Cost

When selecting cabinet support materials, focusing only on the initial purchase price is not enough.

For data center projects, the more important factor is the total life cycle cost (LCC).

Although high-quality C channel steel may have a slightly higher initial cost compared with ordinary steel profiles, it provides better long-term value due to:

• Faster installation

• Lower maintenance requirements

• Longer service life

• Reusable modular structure

The cost advantages include:

• Reduced on-site processing time

• Lower labor installation expenses

• Reduced maintenance costs

• Improved material utilization through repeated assembly and disassembly

• Extended cabinet system lifespan

For large-scale IDC data centers and enterprise server rooms, these long-term benefits are often more valuable than simply choosing the lowest-cost material.

Typical Applications of C Channel Steel

Thanks to its high load-bearing capacity, standardized design, and flexible installation method, C channel steel has become widely used in modern data infrastructure projects.

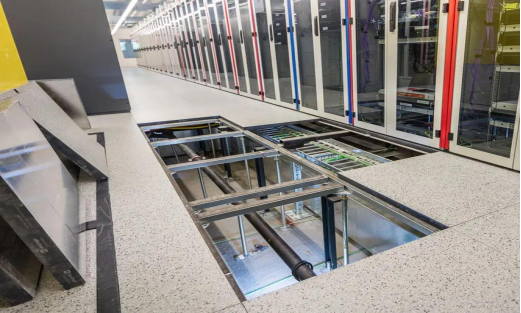

IDC Data Centers

Used for supporting:

• Server racks

• Storage equipment

• Network equipment

• Structured cabling systems

It provides stable support for high-density equipment layouts.

Telecom Equipment Rooms

Suitable for:

• 5G communication facilities

• Telecom operator core rooms

• Edge computing nodes

It meets the requirements of continuous operation and long-term reliability.

Enterprise Data Centers

Banks, internet companies, manufacturing enterprises, and large organizations usually require future expansion capabilities.

The modular design of C channel steel makes it easier to upgrade equipment and expand cabinet capacity.

Power and Industrial Control Systems

Used in:

• Power control centers

• Industrial automation rooms

• Monitoring centers

for supporting:

• Control cabinets

• PLC cabinets

• Communication equipment

Healthcare, Education and Transportation Facilities

Hospitals, universities, and railway control centers also require reliable cabinet support systems to ensure continuous operation of critical information systems.

How to Choose the Right C Channel Steel for Server Cabinets?

When selecting C channel steel for data center projects, several key factors should be carefully considered to ensure the product meets the actual application requirements.

In addition to product performance, the supplier’s manufacturing capability, quality control system, and delivery reliability are also important considerations.

A stable supply chain can effectively ensure project schedules and provide long-term support for large-scale data center construction.

Why More Engineering Projects Choose Huilian C Channel Steel Solutions?

For data centers, telecom rooms, and intelligent building projects, product quality is only the foundation. A supplier’s manufacturing capability, delivery performance, and project experience are equally important.

Huilian specializes in the research, development, and manufacturing of data center infrastructure products, including:

• Raised access floor systems

• Server cabinet support structures

• C channel steel systems

• Pedestal support systems

• Related installation accessories

Huilian provides comprehensive infrastructure solutions for different types of data center projects.

With advanced production equipment and strict quality management systems, Huilian can provide both standardized products and customized solutions according to project requirements, including:

• Different sizes and lengths

• Various thickness options

• Customized hole patterns

• Multiple surface treatment methods

These flexible services help customers improve installation efficiency, reduce construction costs, and meet future expansion and maintenance requirements.

Whether for:

• Enterprise data centers

• Government information centers

• Telecom operator facilities

• Industrial control systems

Huilian is committed to providing reliable infrastructure solutions with stable product quality and professional technical support.

Frequently Asked Questions (FAQ)

Q1: Why is C channel steel recommended for server cabinets instead of traditional angle steel?

C channel steel has optimized structural performance and provides advantages in load capacity, installation efficiency, and modular expansion compared with traditional angle steel.

It is therefore more suitable for modern data center construction requirements.

Q2: What types of cabinets can use C channel steel support systems?

C channel steel can be widely used for:

• Server cabinets

• Network cabinets

• UPS cabinets

• Battery cabinets

• Structured cabling cabinets

• Industrial control cabinets

It provides stable support for various types of equipment.

Q3: How can the corrosion resistance of C channel steel be improved?

Most C channel steel products use:

• Hot-dip galvanizing

• Electro-galvanizing

For humid or corrosive environments, the appropriate corrosion protection level should be selected according to project requirements.

Q4: Can C channel steel be customized?

Yes. Most manufacturers can provide customized solutions according to project requirements, including:

• Different lengths

• Different thicknesses

• Customized hole positions

• Various surface treatments

This allows the support system to better match specific project conditions.

Conclusion

As data centers continue to develop toward higher density, modular construction, and intelligent operation, infrastructure components must also continue to improve.

As an important load-bearing component in cabinet support systems, C channel steel has become a common solution in modern data center construction due to its excellent structural performance, efficient installation, and long-term value.

For project owners, system integrators, and engineering contractors, selecting the right C channel steel solution can:

• Improve cabinet system stability

• Reduce installation complexity

• Lower long-term maintenance costs

• Provide reliable support for future expansion

When planning data center, telecom room, or enterprise network room projects, it is recommended to consider:

• Material quality

• Load capacity

• Corrosion protection

• Manufacturing precision

• Supplier technical support

A properly designed C channel steel support system not only ensures safe operation today but also provides flexibility for future upgrades and expansion.
