Structural Ceiling System: High-Load Aluminum Ceiling Solution for Industrial Spaces

Why Industrial Buildings Require Engineered Structural Ceilings

With the rapid development of data centers, smart manufacturing plants, cleanrooms, laboratories and other specialized facilities, ceiling spaces are no longer merely decorative zones.

A wide array of cable trays, lighting fixtures, fire protection piping, busbars and maintenance access frames need to be mounted above or integrated into ceiling assemblies. Conventional decorative ceilings are designed primarily for aesthetic purposes, lacking sufficient load-bearing capacity, equipment compatibility and maintainability to meet long-term operational demands of industrial projects.

Structural ceiling systems redefine overhead construction by transforming basic decorative ceilings into load-bearing, expandable overhead infrastructure, delivering robust, long-lasting solutions for industrial and commercial premises.

Overview of Engineered Structural Ceiling System

This modular load-bearing ceiling solution is engineered to serve high-demand industrial and commercial facilities.

The system features an aluminum extrusion load-bearing framework, paired with high-strength die-cast aluminum connectors, standardized suspension hardware and modular assembly architecture to form a complete overhead load-bearing framework.

Unlike traditional ceiling products that only deliver decorative functions, this structural system supports equipment mounting, cable routing and routine maintenance, making it ideal for data centers, clean manufacturing workshops, laboratories, medical facilities and other sites requiring heavy overhead load capacity.

The system adopts a standardized 600mm × 1200mm grid module design:

• Main runners run longitudinally to bear primary vertical loads

• Cross tees are installed horizontally to form rigid grid frameworks

• X, T and L-shaped connectors enable flexible joint assembly for all layout scenarios

All components are factory prefabricated to unified specifications. On-site assembly relies solely on bolted connections without welding or secondary cutting, accelerating construction speed while guaranteeing precise structural alignment.

Core Performance Advantages

Superior Load-Bearing Capacity to Support Integrated Equipment

The system’s primary load-bearing members are 60×40mm aluminum main runners, validated through comprehensive load testing:

• Rated point load of single runner: 4.4kN (448kg)

• Maximum deflection under full load: ≤2.6mm

• Uniform distributed load capacity: 6.1kN/m² (611kg/m²)

• Built-in safety factor: 2x

The slotted interlocking joint design of runners has passed tensile strength testing, effectively mitigating structural displacement and deformation under sustained long-term loads.

For facilities requiring overhead mounting of cable trays, lighting, fire suppression systems and maintenance platforms, this structural ceiling delivers dependable overhead support.

Full Aluminum Construction for Harsh Operating Environments

All primary structural components are manufactured from aluminum alloy, featuring distinct benefits:

• Lightweight construction to reduce overall dead load on building slabs

• Excellent corrosion resistance with zero rust risk

• Extended service lifespan

• Fully recyclable for sustainable construction

Compared with steel ceiling frameworks, aluminum minimizes structural load on buildings, and suits clean production workshops, medical facilities and all sites with strict anti-corrosion requirements. Extruded profiles can be powder-coated in custom colors to meet diverse architectural design and protection standards.

Modular Design for Accelerated Installation

All core components are standardized for mass production, including:

• Aluminum main runners

• Aluminum cross tees

• Multi-type structural connectors

• Complete suspension assemblies

• Panel fixing accessories

On-site installation follows pre-defined grid layouts, with full assembly completed via bolt fasteners. No field cutting, welding or complex modification is required.

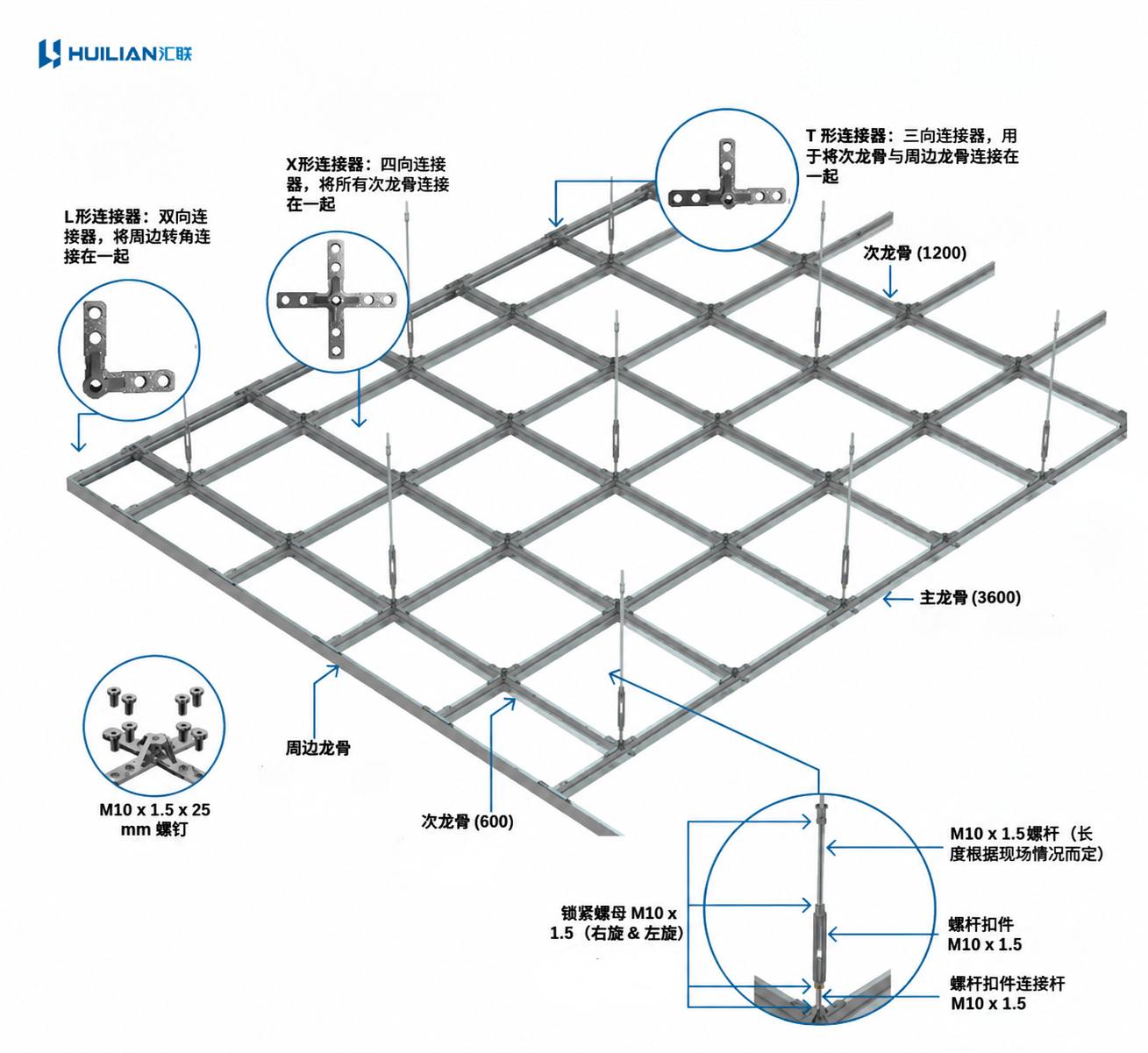

Three dedicated connector types accommodate all joint conditions:

• X Connectors: For cross intersections of main runners and cross tees

• T Connectors: For perimeter edges and branch extensions

• L Connectors: For wall corners and irregular boundary zones

Standardized joint hardware streamlines construction workflows, reduces on-site assembly errors and ensures uniform structural rigidity across the entire ceiling plane.

Precision Adjustable Suspension for Level Calibration

The suspension assembly consists of overhead anchor fasteners, full-thread M10 rods, bidirectional turnbuckles and bottom connecting brackets.

Bidirectional turnbuckles feature dual left/right threads, enabling seamless fine-tuning of ceiling elevation via simple rotation. This design outperforms fixed hanging systems with multiple strengths:

• Intuitive height adjustment

• High precision horizontal leveling

• Compatibility with variable floor-to-ceiling heights

• Flexible on-site calibration

Even for buildings with slab height deviations, the suspension system allows rapid correction to achieve perfectly flat ceiling finishes.

Technical Specifications

System Composition

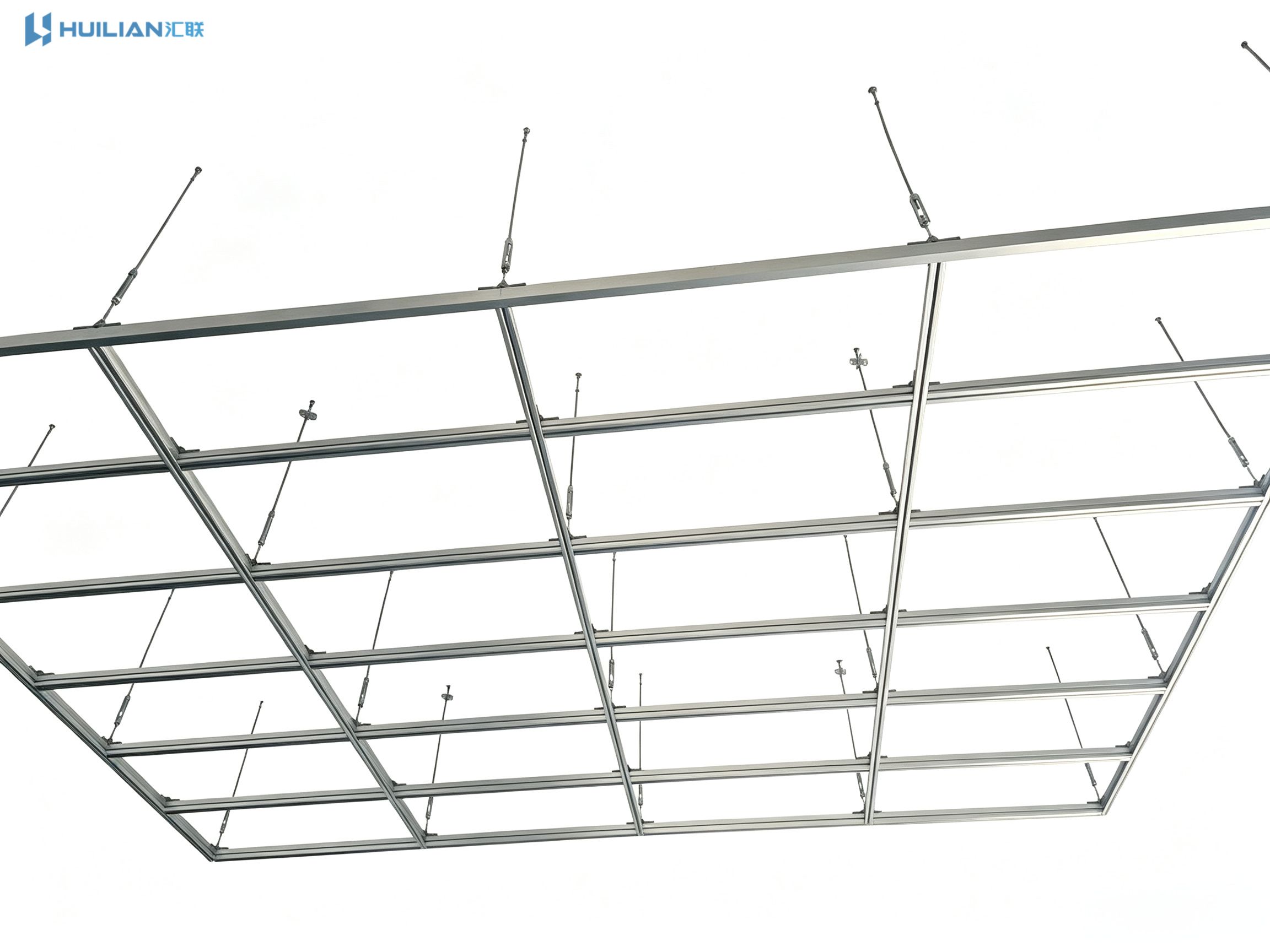

Runner Framework

Runners serve as the primary load-bearing backbone of the entire ceiling system, fabricated from high-precision extruded aluminum alloy, categorized into three functional types:

• Main Runners: Installed along the primary span to transfer vertical loads to suspension assemblies

• Cross Tees: Perpendicularly interlocked with main runners to form rigid grid structures and boost overall stability

• Perimeter Runners: Mounted along wall boundaries for edge finishing and structural anchoring

Uniform cross-section profiles deliver tight interconnection tolerance, eliminating uneven surface gaps post-installation.

 Connection System

All structural connectors are high-strength die-cast aluminum, covering X, T and L variants for all joint scenarios. Fixed with M10 hex socket screws, they form rigid interlocking joints with clear load transfer paths, greatly enhancing overall frame rigidity and long-term structural stability.

Suspension System

The suspension assembly anchors the ceiling grid to the main building structure, consisting of:

• Mechanical overhead anchor fasteners

• Full-thread M10 suspension rods

• Bidirectional height-adjustment turnbuckles

• Bottom connecting brackets

Turnbuckles enable rapid elevation tuning for installers to calibrate ceiling flatness on-site.

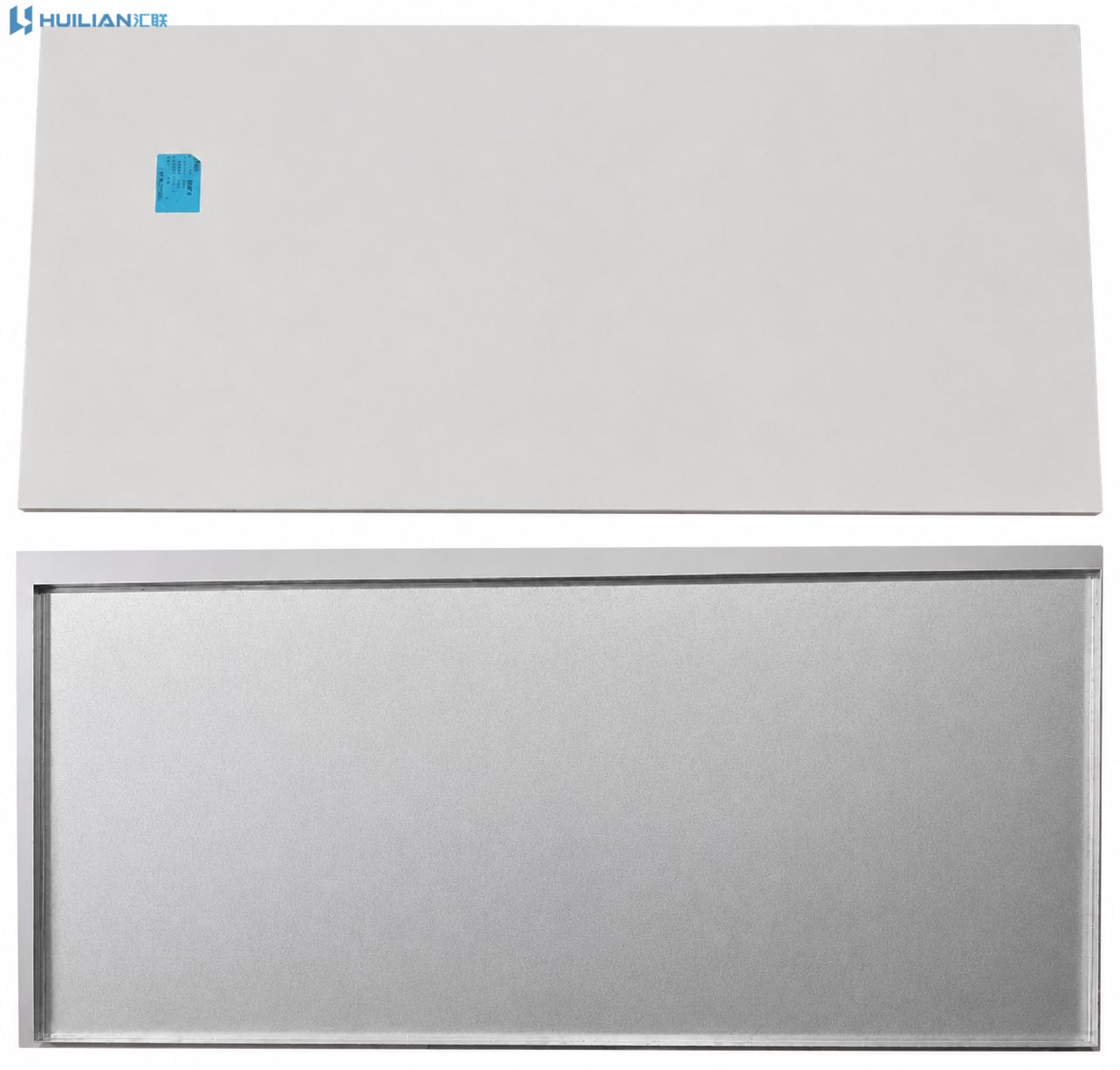

Ceiling Panels & Auxiliary Accessories

The system supports a full range of ceiling panel options, with the standard specification as below:

• 0.7mm pre-painted galvanized steel sheet

• Surface finish: RAL9016 Traffic White

• Single panel weight: 3.91kg

Panels are secured via dedicated blind panel clips for quick installation and removal. The grid framework is fully compatible with integrated fixtures including:

• LED lighting units

• Air conditioning diffusers

• Fire sprinkler systems

• Cable support brackets

• Removable maintenance hatches

It delivers integrated overhead space planning for all facility systems.

Application Scenarios

Boasting heavy load capacity, modular architecture and flexible equipment integration, this engineered ceiling system caters to industrial and commercial buildings with specialized overhead infrastructure requirements.

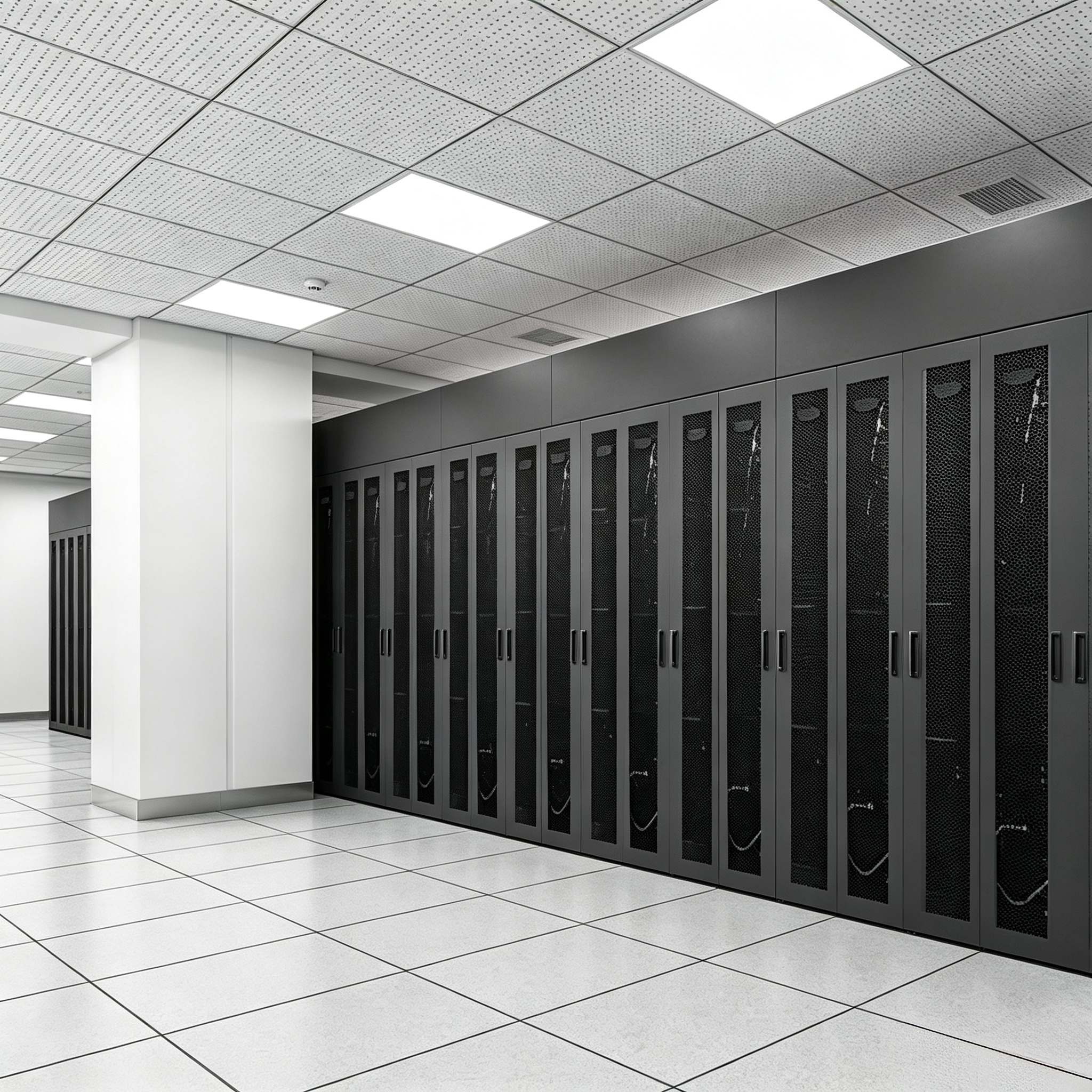

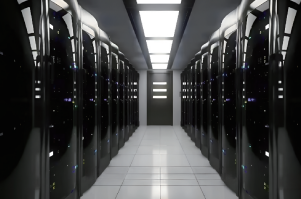

Data Centers & Computer Rooms

Data centers house dense overhead infrastructure including cable trays, busbars, lighting and fire suppression hardware, alongside dedicated maintenance walkways.
The structural ceiling provides a stable overhead load-bearing foundation, while modular grids enable standardized equipment layout, simplifying future expansion and routine maintenance.

Suitable for: Cloud computing data centers, financial IDC facilities, telecommunication server rooms, hyperscale data campuses.

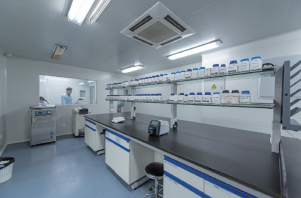

Pharmaceutical & Cleanroom Facilities

Clean manufacturing environments demand materials with superior corrosion resistance, smooth dust-free surfaces and easy access for sanitization.
The full aluminum framework minimizes dust accumulation and withstands repeated cleaning cycles.

Suitable for: GMP-certified pharmaceutical plants, biological laboratories, semiconductor fabs, precision electronics production workshops.

Laboratories

Laboratory overhead spaces commonly integrate gas piping terminals, air purification equipment and specialized lighting fixtures. The structural ceiling delivers reliable support for all hardware, with modular grids allowing flexible repositioning to accommodate facility upgrades.

Commercial & Public Premises

Commercial venues require simultaneous integration of HVAC, fire protection, lighting and decorative finishes. Modular grid structures organize overhead equipment neatly and maximize usable overhead space.

Suitable for: Shopping malls, supermarkets, exhibition halls, mixed-use commercial complexes.

Industrial Warehouses & Distribution Centers

Large-span industrial storage facilities feature complex overhead layouts with extensive lighting, ventilation and piping systems. The structural ceiling’s high load rating and expandable design support industrial lighting installation, cable routing and future equipment reconfiguration.

Why Choose Our Engineered Structural Ceiling System?

Over 20 Years of Industry Expertise

Established in 1999, our factory is an early domestic manufacturer specializing in raised access floors and engineered structural ceiling systems. We hold ISO 9001 Quality Management and ISO 14001 Environmental Management System certifications. Our products are exported to Southeast Asia, the Middle East, Europe and North America, with a proven track record of hundreds of large-scale global construction projects.

Full In-House Production for Strict Quality Control

We operate a complete vertical production line covering aluminum extrusion, die-casting and surface finishing, with full quality oversight from raw material to finished goods. Every batch undergoes rigorous dimensional inspection and load performance testing. Full test reports including runner joint tensile strength and deflection data are available for all orders to guarantee consistent, reliable product performance.

Reliable Lead Time & Stable Supply Chain

For standard ceiling projects covering 5,200㎡, we complete manufacturing of all aluminum profiles, connectors and hardware within 25 working days. We provide full customs clearance documentation including packing lists, commercial invoices and certificates of origin to support seamless ocean freight delivery to overseas ports. Our dedicated foreign trade team tracks production, container loading and sea shipment progress, updating delivery milestones regularly to keep project schedules on track.

Conclusion

As industrial buildings continue to move toward smarter and more modular designs, ceiling spaces have become an essential part of modern building infrastructure.

With its high-strength aluminum framework, modular connection design, and flexible integration capabilities, the Huilian Structural Ceiling System provides a stable and reliable overhead solution for data centers, cleanrooms, laboratories, and commercial facilities.

Backed by years of experience in industrial building materials manufacturing and comprehensive engineering support capabilities, Huilian is committed to delivering high-performance, easy-to-install, and sustainable structural ceiling solutions for customers worldwide.

Huilian — More than a ceiling system, a reliable structural platform built for long-term performance.
