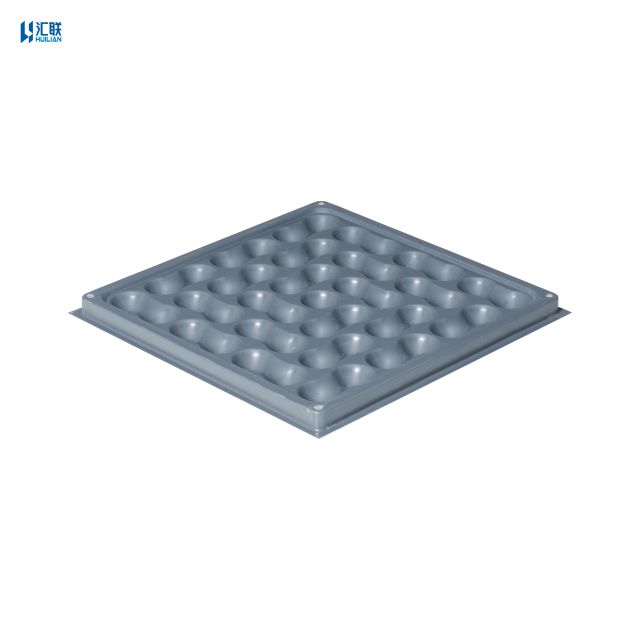

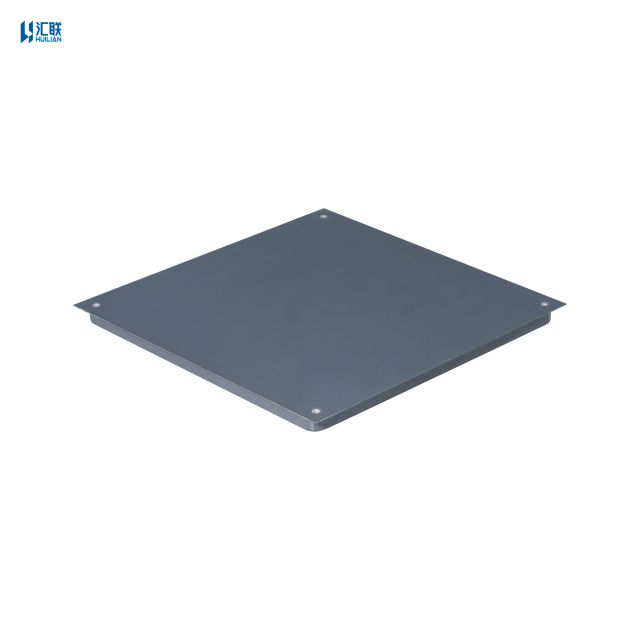

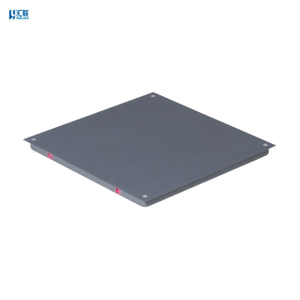

Steel Concrete Raised Floor OA600

Steel Concrete Raised Floor Video:

Steel Concrete Raised Floor Characteristics：

♦ Excellent load performance;

♦ Class A flame spread & smoke developed index;

♦ Convenient maintenance for the powder coated bare finish;

♦ Dimensional accuracy allows free interchangeability;

♦ Good decoration.

Steel Concrete Raised Floor Specifications:

When choosing raised floor, it's crucial for you to consider the specifications as they represent the performance of a typical installation. While Raised Access Floor Panel criteria, such as concentrated load, are often used to specify floor systems, this test isn't an accurate representation of an actual installation. It's performed with panel testing blocks, not actual understructure. Therefore, it's important to take into account all factors that may affect the performance of the Raised Access Floor System.

System Performance Criteria
Raised Floor		Static Loads			Rolling Loads
Type	Size	Concentrated Load	Safety Factor (min.2.0)	Ultimated load	10 Passes	10,000 Passes
FS700	600x600x35mm 610x610x35mm	318kg /700lbs	Pass	636kg /1400lbs	275kg 600lbs	181kg 400lbs
FS800	600x600x35mm 610x610x35mm	368kg/800lbs	Pass	736kg/1600lbs	318kg 700lbs	275kg 600lbs
FS1000	600x600x35mm 610x610x35mm	454kg/1000lbs	Pass	909kg/2000lbs	368kg 800lbs	318kg 700lbs
FS1250	600x600x35mm 610x610x35mm	568kg/1250lbs	Pass	1136kg/2500lbs	454kg 1000lbs	368kg 800lbs
FS1500	600x600x35mm 610x610x35mm	681kg/1500lbs	Pass	1363kg/3000lbs	568kg 1250lbs	454kg 1000lbs
FS2000	600x600x35mm 610x610x35mm	909kg/2000lbs	Pass	1818kg/4000lbs	681kg 1500lbs	568kg 1250lbs
FS2500	600x600x35mm 610x610x35mm	1136kg/2500lbs	Pass	2272kg/5000lbs	909kg 2000lbs	681kg 1500lbs
FS3000	600x600x35mm 610x610x35mm	1363kg/3000lbs	Pass	2726kg/6000lbs	1136kg 2500lbs	909kg 2000lbs

1. Raised Access Floor design load is tested using CISCA Concentrated Load test method on actual understructure instead of steel blocks. The design load is determined by taking the lesser value of the ultimate load divided by two or the point at which permanent damage occurs (yield point).

2. The Raised Access Floor safety factor is the multiple of Design load to the Ultimate Load. International standards and Dawn recommend' a minimum of 2.

Steel Concrete Raised Floor Application:

Office building, intelligent office environment, meeting room, commercial and industrial bureau, government, places that have requirements of dust-proof and water-proof, fields with wiring requirements, usually used with square carpet.

要改一下项目案例

Steel Concrete Raised Floor Accessories：

---Finishes：

Raised floors are widely used in office buildings, data centers, clean rooms and other places. Office buildings mainly use bare finish raised floor, the floor surface needs to be covered with carpet tiles. Data centers need to use anti-static flooring, the floor surface can use different types of anti-static coverings, such as anti-static laminate, PVC tile, ceramic tile and so on.

---Installation accessories

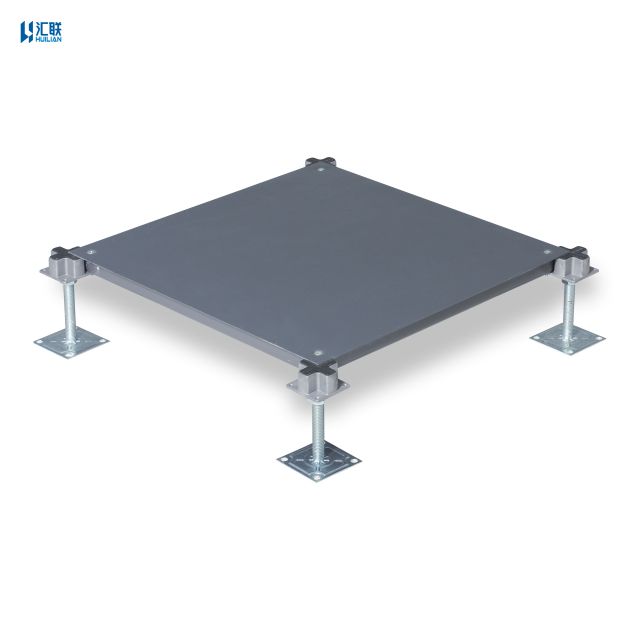

Pedestals are necessary for installation. Stringers are selective. The specifications of pedestals and stringers for different types of flooring are different. Please contact us if you need suggestion.

---Other accessories

Grommets, outlet boxes, and electronic sockets can be used to facilitate wiring and routing.  In some areas, we can use glass raised floor to monitor the situation under the raised floor.

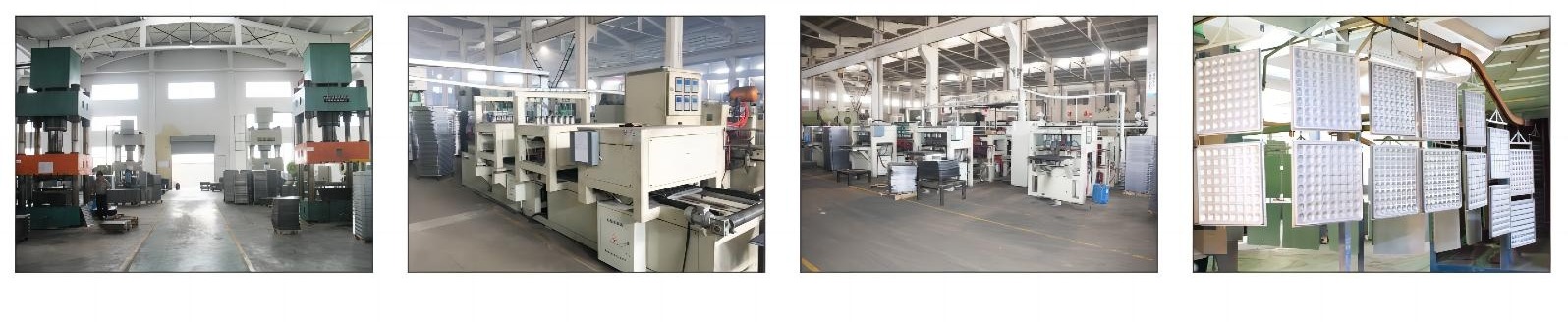

Steel Concrete Raised Floor Production Line:

Packing & Delivery

Packing Details  : Wooden pallets

Delivery Details :  15-20 days

---

Why Choose us?

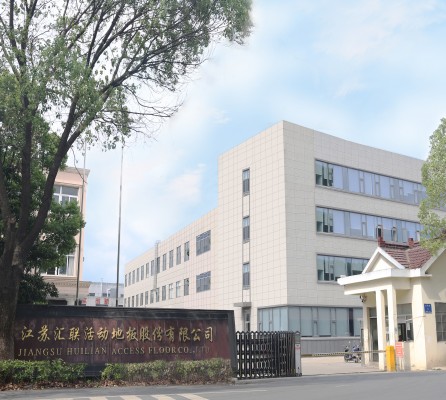

Jiangsu Huilian Access Floor Co.,LTD.

     Huilian, established for over 20 years, is one of the largest access floor manufacturing companies in China, specializing in the data center and office market. Renowned for our rich experience, high quality, and production capacity, Huilian is a good choice for many data center providers and office buildings.

Our Certificates:

ISO9001、ISO14001、ISO45001

Cooperative Partners:

FAQ:

Q1: What is OA600 Concrete Raised Floor?

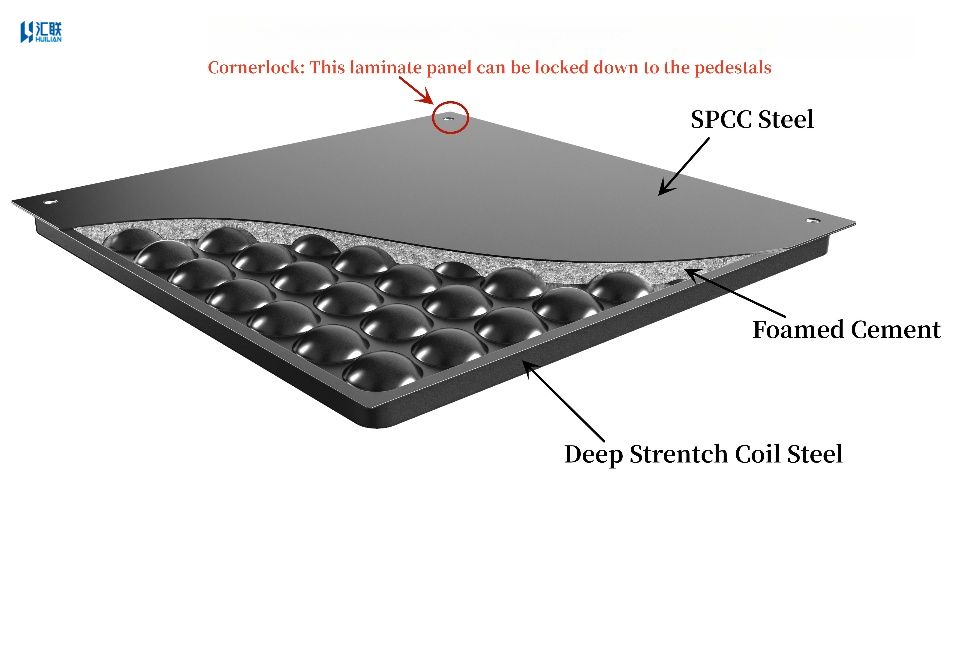

A: It is a type of raised floor system made of steel panels with the size of 60060035mm. A raised floor, also known as an access floor or a raised access floor, is a functional and elevated platform constructed above a solid substrate. This platform creates a space, or "plenum," between the structural floor and the raised surface, which can be used for various purposes.

Q2: What are the advantages of OA600 Concrete Raised Floor?

A: OA600 concrete raised floor has many advantages, including:

• Enhanced Cable Management

• Temperature Regulation

• Flexibility and Adaptability

• Improved Acoustics

• Aesthetics and Concealment

Q3: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q4: Can we customize the panels for specific project requirements?

A: Yes, of course.  OA600 concrete raised floor can be customized to fit specific project requirements. This includes customed panel sizes, finishes, and accessories, such as ramps, steps, and handrails.

Q5: What is the installation process for OA600 steel raised access flooring?

A: The installation process for 0A600 steel raised access flooring involves several steps, including:

● Preparation of the subfloor

● Installation of the pedestal system

● Placement of the steel panels

● Cutting of the panels to fit around obstacles

● Installation of any required accessories, such as ramps and handrails

● Final inspection and testing to ensure compliance with applicable standards and regulations.

Q6: How long is your delivery time?

A: Generally it is 15~20 days .
